1393219 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RELAY GEN PURPOSE SPDT 5A 5V

Part	Coil Resistance	Mounting Type	Contact Material	Switching Voltage [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Relay Type	Coil Voltage	Load - Max Switching [Max]	Release Time	Coil Type	Contact Rating (Current)	Must Operate Voltage	Seal Rating	Approval Agency	Contact Form	Operate Time	Coil Current	Must Release Voltage	Load - Max Switching
TE Connectivity AMP Connectors PE514005	125 Ohms	Through Hole	Silver Nickel (AgNi)	400 VAC	85 °C	-40 C	PC Pin	General Purpose	5 VDC	2000 VA	8 ms	Non Latching	5 A	3.8 VDC	Sealed - Fully	cURus VDE	SPDT (1 Form C)	8 ms	40 mA	0.5 VDC

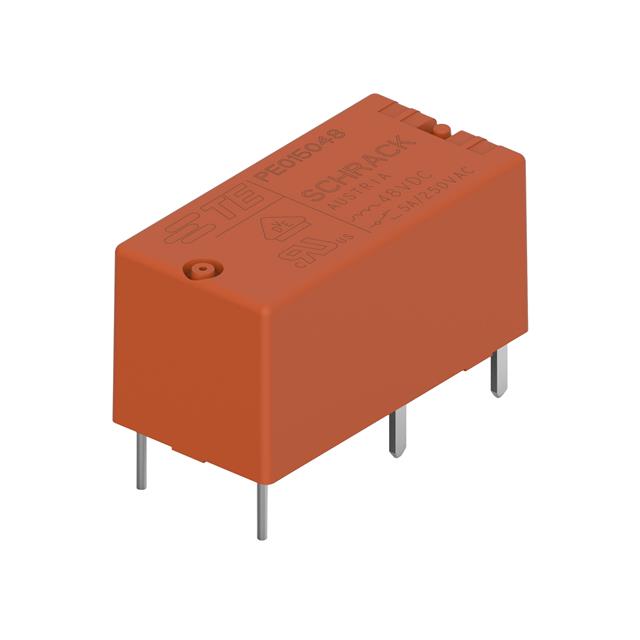

TE Connectivity AMP Connectors 1-1393219-6	10.97 kOhms	Through Hole	Silver Nickel (AgNi)	400 VAC	85 °C	-40 C	PC Pin	General Purpose	48 VDC	2000 VA	8 ms	Non Latching	5 A	36 VDC		cURus VDE	SPDT (1 Form C)	8 ms	4.4 mA	4.8 VDC
TE Connectivity AMP Connectors 1-1393219-2	6.17 kOhms	Through Hole	Silver Nickel (AgNi)	400 VAC	85 °C	-40 C	PC Pin	General Purpose	36 VDC	2000 VA	8 ms	Non Latching	5 A	27 VDC	Sealed - Flux Protection	cURus VDE	SPDT (1 Form C)	8 ms	5.8 mA	3.6 VDC

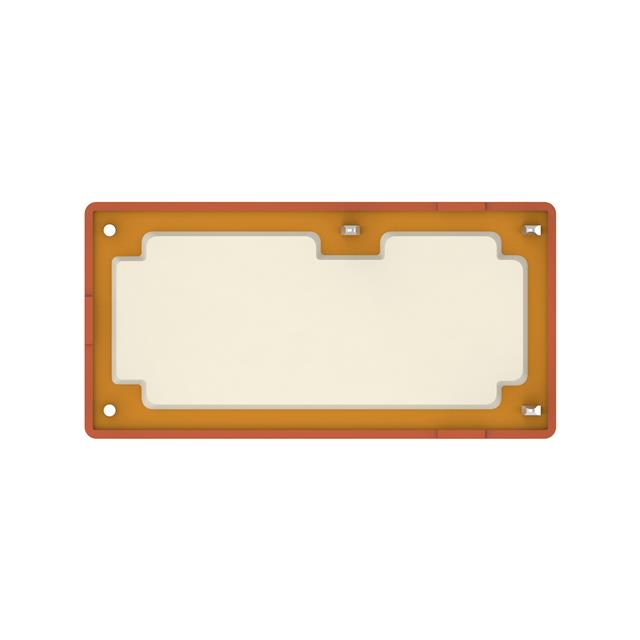

TE Connectivity AMP Connectors 1-1393219-8	172 Ohms	Through Hole	Silver Nickel (AgNi)	400 VAC	85 °C	-40 C	PC Pin	General Purpose		2000 VA	8 ms	Non Latching	5 A	4.5 VDC	Sealed - Fully	cURus VDE	SPDT (1 Form C)	8 ms	34.9 mA	0.6 VDC
TE Connectivity AMP Connectors 1393219-5	405 Ohms	Through Hole	Silver Nickel (AgNi)	400 VAC	85 °C	-40 C	PC Pin	General Purpose	9 VDC	2000 VA	8 ms	Non Latching	5 A	6.8 VDC		cURus VDE	SPDT (1 Form C)	8 ms	22.2 mA	0.9 VDC	1250 VA

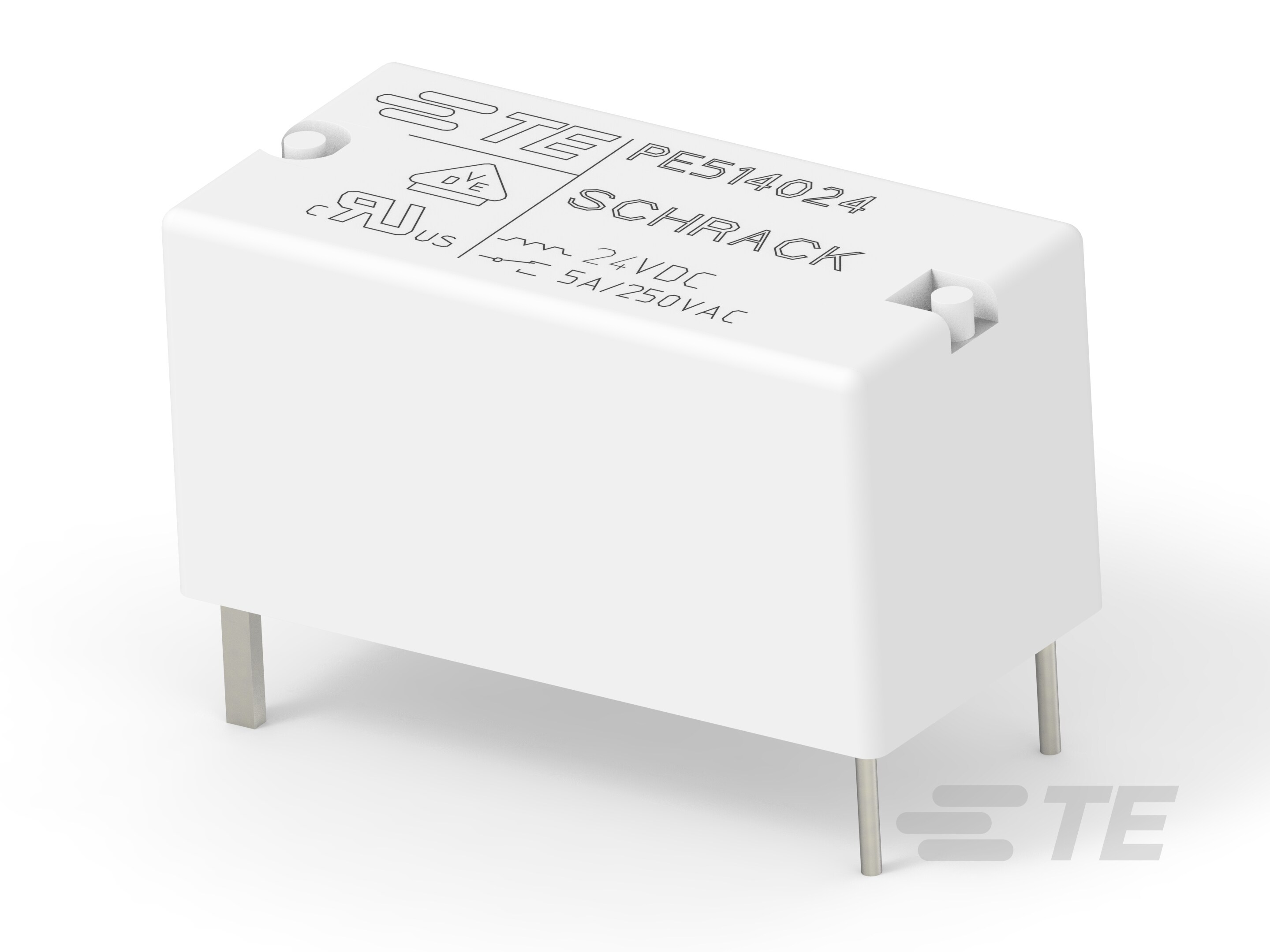

TE Connectivity AMP Connectors 2-1393219-2	2.73 kOhms	Through Hole	Silver Nickel (AgNi)	400 VAC	85 °C	-40 C	PC Pin	General Purpose	24 VDC	2000 VA	8 ms	Non Latching	5 A	18 VDC	Sealed - Fully	cURus VDE	SPDT (1 Form C)	8 ms	8.8 mA	2.4 VDC
