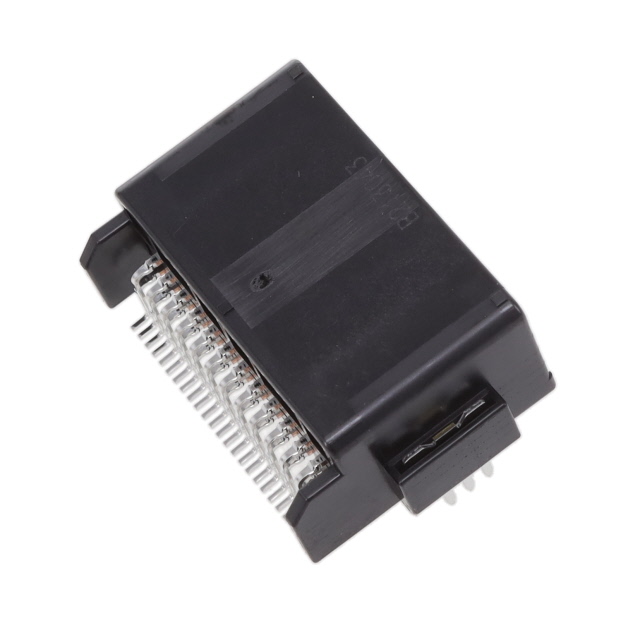

MX34R24H Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN HEADER SMD R/A 24POS 2.2MM
| Part | Applications | Number of Positions | Mounting Type | Shrouding | Termination | Connector Type | Current Rating (Amps) | Insulation Material | Contact Finish - Post | Contact Material | Features | Contact Type | Fastening Type | Number of Positions Loaded | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Number of Rows [custom] | Row Spacing - Mating | Row Spacing - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Length - Mating | Contact Length - Mating | Insulation Color | Contact Shape | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | 24 | Right Angle Surface Mount | Shrouded - 4 Wall | Solder | Header | 3 A | Polyphenylene Sulfide (PPS) Glass Filled | Tin | Copper Alloy | Solder Retention | Male Pin | Locking Ramp | All | 13.8 mm | 0.543 in | 0.087 in | 2.2 mm | 2 | 0.118 in | 3 mm | 85 °C | -40 C | 0.303 in | 7.7 mm | Black | Square | Board to Cable/Wire |
