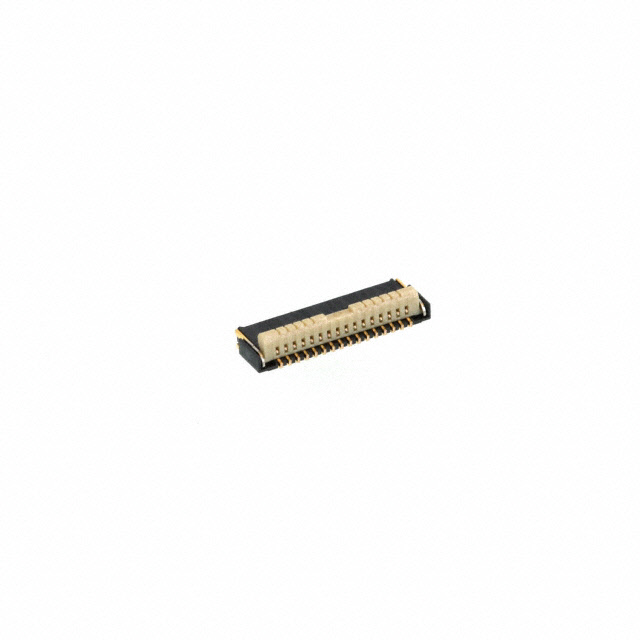

AYF531465 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
CONN FPC CONNECTOR SKT 14 POS 0.5MM SOLDER RA SMD T/R
| Part | Mating Cycles | Current Rating (Amps) | Locking Feature | FFC, FCB Thickness | Mounting Type | Height Above Board [z] | Height Above Board [z] | Flat Flex Type | Voltage Rating | Material Flammability Rating | Housing Material | Pitch | Pitch | Actuator Material | Number of Positions | Cable End Type | Contact Finish | Connector/Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 20 | 500 mA | Backlock Flip Lock | 0.3 mm | Right Angle Surface Mount | 1 mm | 0.039 " | FPC | 50 V | UL94 V-0 | Liquid Crystal Polymer (LCP) | 0.02 " | 0.5 mm | Liquid Crystal Polymer (LCP) | 14 | Notched | Gold | Contacts Top and Bottom | -55 C | 85 °C | Copper Alloy | Solder |
