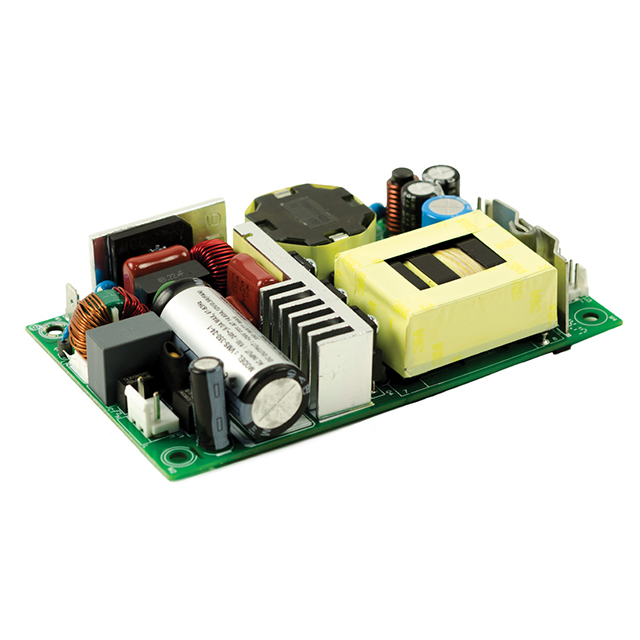

VMS-350 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 58V 175W
| Part | Efficiency | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Current - Output 1 | Voltage - Isolation | Standard Number | Number of Outputs | Power (Watts) | Power (Watts) | Voltage - Input [Max] | Voltage - Input [Min] | Features | Mounting Type | Type | Approval Agency | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 94 % | Medical | 76.2 mm | 127 mm | 127 mm | 3 " | 25.4 mm | 25.4 mm | 3.02 A | 4.2 kV | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | 1 | 175 W | 350 W | 264 VAC | 90 VAC | Adjustable Output PFC Standby Output Universal Input | Chassis Mount | Open Frame | CB Scheme EN FCC IEC TUV UL | |
CUI Inc. | 93 % | Medical | 76.2 mm | 127 mm | 127 mm | 3 " | 25.4 mm | 25.4 mm | 5.83 A | 4.2 kV | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | 1 | 175 W | 350 W | 264 VAC | 90 VAC | Adjustable Output PFC Standby Output Universal Input | Chassis Mount | Open Frame | CB Scheme EN FCC IEC TUV UL | 30 V |
CUI Inc. | 92 % | Medical | 76.2 mm | 127 mm | 127 mm | 3 " | 25.4 mm | 25.4 mm | 14.58 A | 4.2 kV | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | 1 | 175 W 300 W | 264 VAC | 90 VAC | Adjustable Output Standby Output Universal Input | Chassis Mount | Open Frame | CB Scheme EN FCC IEC TUV UL | 12 V | |
CUI Inc. | 92 % | Medical | 76.2 mm | 127 mm | 127 mm | 3 " | 25.4 mm | 25.4 mm | 11.67 A | 4.2 kV | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | 1 | 175 W | 350 W | 264 VAC | 90 VAC | Adjustable Output PFC Standby Output Universal Input | Chassis Mount | Open Frame | CB Scheme EN FCC IEC TUV UL | 15 V |
CUI Inc. | 93 % | Medical | 76.2 mm | 127 mm | 127 mm | 3 " | 25.4 mm | 25.4 mm | 7.29 A | 4.2 kV | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | 1 | 175 W | 350 W | 264 VAC | 90 VAC | Adjustable Output PFC Standby Output Universal Input | Chassis Mount | Open Frame | CB Scheme EN FCC IEC TUV UL | 24 V |
CUI Inc. | 92 % | Medical | 76.2 mm | 127 mm | 127 mm | 3 " | 25.4 mm | 25.4 mm | 11.67 A | 4.2 kV | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | 1 | 175 W | 270 W | 264 VAC | 90 VAC | Adjustable Output PFC Standby Output Universal Input | Chassis Mount | Open Frame | CB Scheme EN FCC IEC TUV UL | 15 V |
CUI Inc. | 94 % | Medical | 76.2 mm | 127 mm | 127 mm | 3 " | 25.4 mm | 25.4 mm | 3.65 A | 4.2 kV | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | 1 | 175 W | 350 W | 264 VAC | 90 VAC | Adjustable Output Standby Output Universal Input | Chassis Mount | Open Frame | CB Scheme EN FCC IEC TUV UL | 48 V |
CUI Inc. | 93 % | Medical | 76.2 mm | 127 mm | 127 mm | 3 " | 25.4 mm | 25.4 mm | 7.29 A | 4.2 kV | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | 1 | 175 W | 350 W | 264 VAC | 90 VAC | Adjustable Output Standby Output Universal Input | Chassis Mount | Open Frame | CB Scheme EN FCC IEC TUV UL | 24 V |
