S301F Series

Catalog

MEDIUM/HIGH CAPACITY STANDARD SIZE TOGGLE

Part	Electrical Life	Actuator Material	Illumination	Mounting Type	Bushing Thread	Switch Function	Circuit	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Actuator Type	Voltage Rating - DC	Termination Style
NKK Switches S301F/CUL-AT401S	25000 Steps	Brass Chrome Plated	Non-Illuminated	Panel Mount	M12 x 1	On-Off	SPST	17.5 mm	70 °C	-10 °C	125 V	15 A 20 A	12.5 mm	Standard Round	30 V

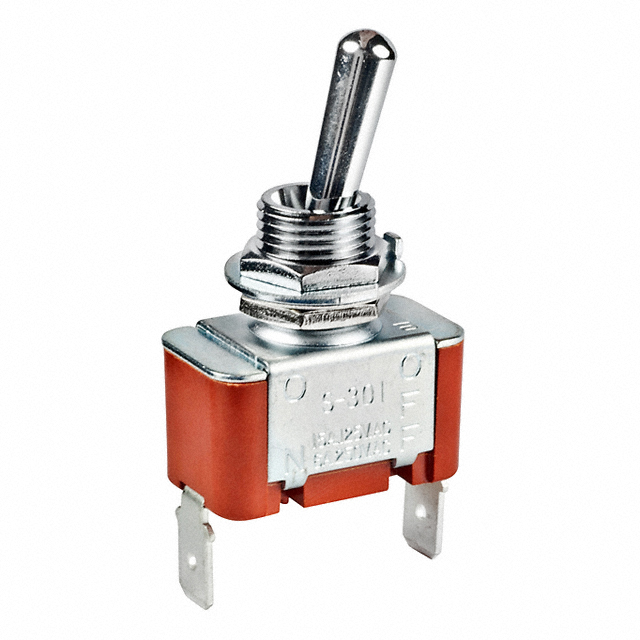

NKK Switches S301F/U	25000 Steps	Brass Chrome Plated	Non-Illuminated	Panel Mount	M12 x 1	On-Off	SPST	17.5 mm	70 °C	-10 °C	125 V	15 A 20 A	12.5 mm	Standard Round	30 V	Quick Connect - 0.250" (6.3mm)
NKK Switches S301F/UC	25000 Steps	Brass Chrome Plated	Non-Illuminated	Panel Mount	M12 x 1	On-Off	SPST	17.5 mm	70 °C	-10 °C	125 V	15 A 20 A	12.5 mm	Standard Round	30 V	Quick Connect - 0.250" (6.3mm)
NKK Switches S301F/UC-AT401A	25000 Steps	Brass Chrome Plated	Non-Illuminated	Panel Mount	M12 x 1	On-Off	SPST	17.5 mm	70 °C	-10 °C	125 V	15 A 20 A	12.5 mm	Standard Round	30 V

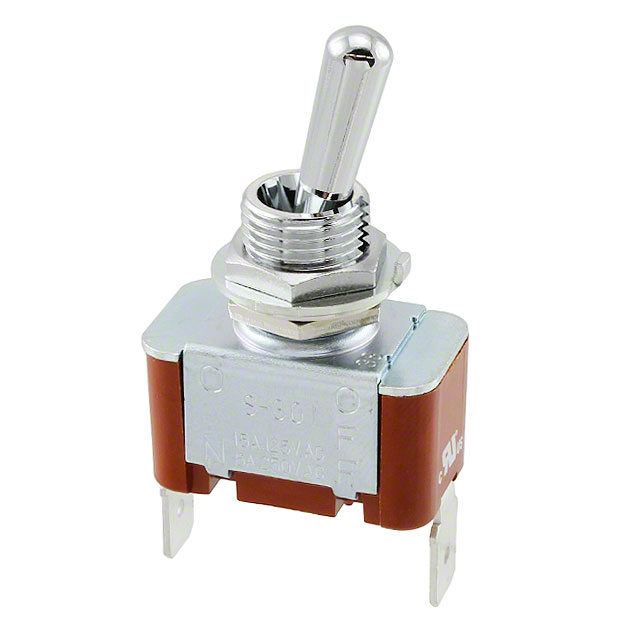

NKK Switches S301F/CUL	25000 Steps	Brass Chrome Plated	Non-Illuminated	Panel Mount	M12 x 1	On-Off	SPST	17.5 mm	70 °C	-10 °C	125 V	15 A 20 A	12.5 mm	Standard Round	30 V	Quick Connect - 0.250" (6.3mm)
