G861AB0 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

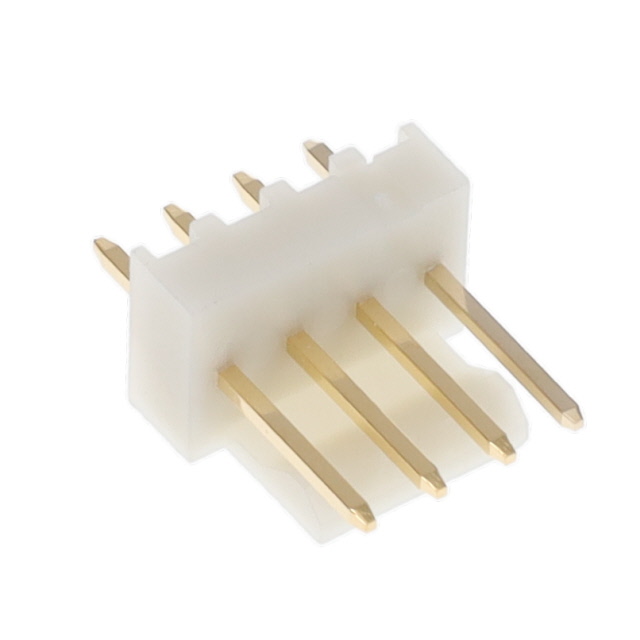

WAFER 2.54MM PITCH STR DIP,1X4PI
| Part | Contact Finish Thickness - Post | Contact Length - Mating [custom] | Contact Length - Mating [custom] | Contact Finish - Mating | Number of Rows | Material Flammability Rating | Connector Type | Voltage Rating | Termination | Fastening Type | Style | Contact Finish - Post | Overall Contact Length | Overall Contact Length | Number of Positions | Shrouding | Pitch - Mating | Pitch - Mating | Contact Material | Mounting Type | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height [z] | Insulation Height | Contact Type | Contact Length - Post [x] | Contact Length - Post | Contact Shape | Contact Finish Thickness - Mating | Number of Positions Loaded | Insulation Color | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Flash | 7.6 mm | 0.299 in | Gold | 1 | UL94 V-0 | Header | 250 VAC | Solder | Friction Lock | Board to Cable/Wire | Gold | 14.2 mm | 0.559 " | 4 | Shrouded - 1 Wall | 0.1 " | 2.54 mm | Copper Alloy | Through Hole | Nylon 9T Polyamide (PA9T) | 85 °C | -25 °C | 0.327 " | 8.3 mm | Male Pin | 0.134 " | 3.4 mm | Square | Flash | All | White | Varies by Wire Gauge |
