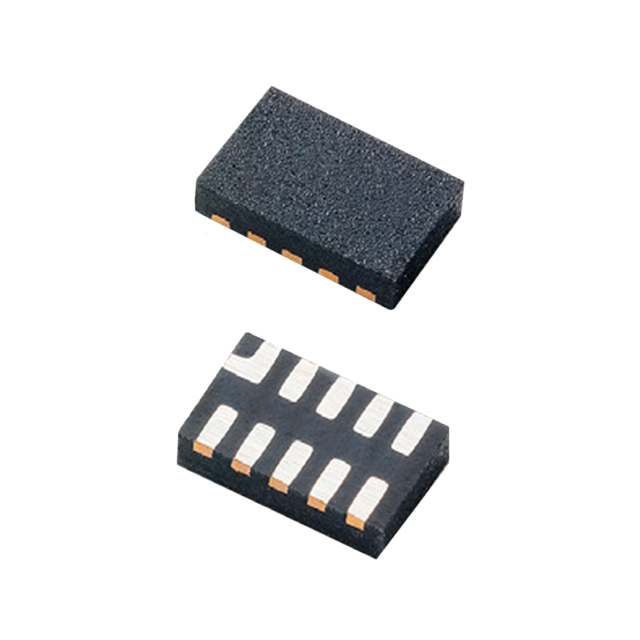

SP8142-04UTG Series

4 Ch 22KV 5V TVS Diode Array uDFN-10L

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

4 Ch 22KV 5V TVS Diode Array uDFN-10L

Part	Power Line Protection	Unidirectional Channels [custom]	Type	Mounting Type	Applications	Capacitance @ Frequency	Voltage - Reverse Standoff (Typ)	Voltage - Clamping (Max) @ Ipp	Package / Case	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Operating Temperature [Min]	Operating Temperature [Max]
Littelfuse/Commercial Vehicle Products SP8142-04UTG		4	Steering	Surface Mount	HDMI	1 pF	5 V	10.3 V	10-UFDFN	1.35	10-µDFN	2.2	-40 °C	125 ¯C

Catalog

4 Ch 22KV 5V TVS Diode Array uDFN-10L

Key Features

• ESD IEC61000-4-2, ±22 kV by contact, ±22 kV through air

• EFT protection, IEC61000-4-4, 40 A (tp = 5/50 ns)

• Lightning Protection, IEC61000-4-5 2nd edition, 2.5 A (tp=8/20μs)

• Low typical capacitance of 1 pF per I/O

• Low typical leakage current of 25 nA at 5 V

• Small form factor μDFN packages (JEDEC MO-229) saves board space

Description

The SP814x series integrates 4 or 6 channels of ultra low capacitance rail-to-rail diodes and an additional zener diode to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). This robust device can safely absorb repetitive ESD strikes above the maximum level specified in the IEC61000-4-2 international standard (±8kV contact discharge) without performance degradation. The extremely low loading capacitance also makes it ideal for protecting high speed signal pins such as HDMI2.0, USB3.0, USB2.0, and IEEE 1394.
