51923 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

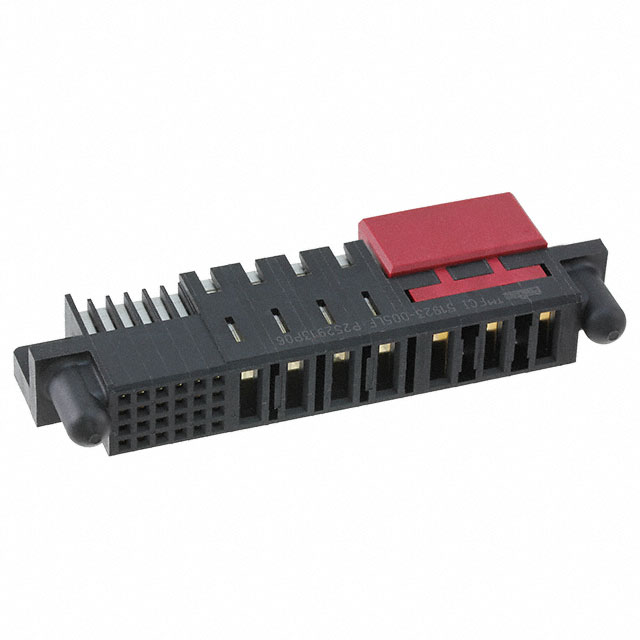

CONN RCPT BLADE PWR 19P EDGE MNT
| Part | Mounting Type | Features | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Pitch [x] | Pitch [x] | Color | Number of Positions | Contact Finish | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Termination | Connector Type | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Board Edge Right Angle Through Hole | Board Lock Guide Pin | 7 | 12 | 2.54 mm | 0.1 in | Black | 19 | Gold or Gold GXT™ | UL94 V-0 | 0.76 Ám | 30 Áin | 17 | -20 C | 105 ░C | Blade Power | Quick Connect Solder | Blade Sockets Female Sockets Receptacle | |
 Amphenol ICC (FCI) | Board Edge Right Angle Through Hole | Guide Pin | 7 | 24 | 2.54 mm | 0.1 in | Black | 31 | Gold or Gold GXT™ | UL94 V-0 | 0.76 Ám | 30 Áin | -20 C | 105 ░C | Blade Power | Quick Connect Solder | Blade Sockets Female Sockets Receptacle | All | |
Amphenol ICC (FCI) | Board Edge Right Angle Through Hole | Guide Pin | 12 | 16 | 2.54 mm | 0.1 in | Black | 28 | Gold or Gold GXT™ | UL94 V-0 | 0.76 Ám | 30 Áin | -20 C | 105 ░C | Blade Power | Press-Fit Quick Connect Solder | Blade Sockets Female Sockets Receptacle | All | |
Amphenol ICC (FCI) | Board Edge Right Angle Through Hole | Guide Pin | 7 | 24 | 2.54 mm | 0.1 in | Black | 31 | Gold or Gold GXT™ | UL94 V-0 | 0.76 Ám | 30 Áin | -20 C | 105 ░C | Blade Power | Press-Fit Quick Connect Solder | Blade Sockets Female Sockets Receptacle | All | |
Amphenol ICC (FCI) | Board Edge Right Angle Through Hole | Board Lock Guide Pin | 7 | 24 | 2.54 mm | 0.1 in | Black | 31 | Gold or Gold GXT™ | UL94 V-0 | 0.76 Ám | 30 Áin | -20 C | 105 ░C | Blade Power | Press-Fit Quick Connect Solder | Blade Sockets Female Sockets Receptacle | All | |
Amphenol ICC (FCI) | Board Edge Right Angle Through Hole | Guide Pin | 7 | 24 | 2.54 mm | 0.1 in | Black | 31 | Gold or Gold GXT™ | UL94 V-0 | 0.76 Ám | 30 Áin | -20 C | 105 ░C | Blade Power | Quick Connect Solder | Blade Sockets Female Sockets Receptacle | All | |
Amphenol ICC (FCI) | Board Edge Right Angle Through Hole | Guide Pin | 7 | 24 | 2.54 mm | 0.1 in | Black | 31 | Gold or Gold GXT™ | UL94 V-0 | 0.76 Ám | 30 Áin | -20 C | 105 ░C | Blade Power | Quick Connect Solder | Blade Sockets Female Sockets Receptacle | All |
