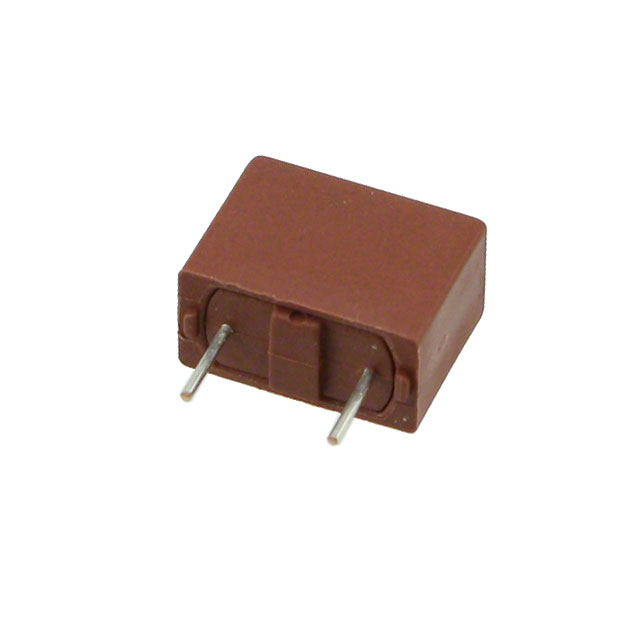

80411600000 Series

FUSE 250V TT L TE7 UMF LL AMMO 1.6A

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

FUSE 250V TT L TE7 UMF LL AMMO 1.6A

Part	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current Rating (Amps)	Fuse Type	Breaking Capacity @ Rated Voltage	DC Cold Resistance	Melting I²t	Response Time	Approval Agency	Voltage Rating - AC
Littelfuse/Commercial Vehicle Products 80411600000	Through Hole	Radial Box	125 °C	-40 °C	9.2 mm	0.362 in	0.252 in	6.4 mm	12.4 mm	0.488 in	1.6 A	Board Mount	150 A	0.0569 Ohms	51	Slow Blow	CQC KC PSE UL VDE	250 V

Catalog

FUSE 250V TT L TE7 UMF LL AMMO 1.6A

Key Features

• Lead-free and RoHS Compliant

• Reduced PCB space requirements

• Direct solderable or plug-in versions

• Low internal resistance

• Internally approved

• Shock safe casing

• Vibration resistant

• Halogen-free

Description

The 804 Series is a TE UMF, TT time lag type subminiature fuse designed for overcurrent protection. It is 250V rated and designed in accordance to IEC 60127-4.
