845-045 Series
Manufacturer: EDAC Inc.
Beta
⌘K

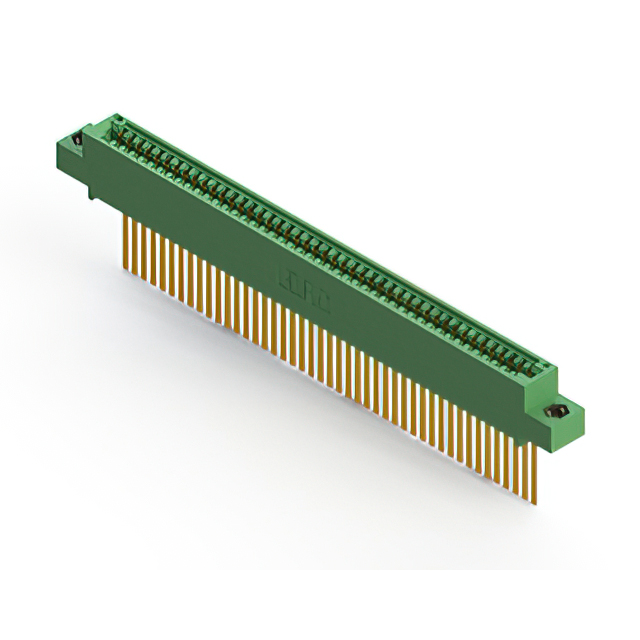

CONN EDGE SINGLE FML 45POS 0.100
| Part | Termination | Gender | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Mounting Type | Contact Type | Contact Material | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Pitch | Pitch | Number of Positions/Bay/Row | Read Out | Card Type | Color | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Termination Rows | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Solder Eyelet(s) | Female | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | Through Hole | Cantilever | Copper Alloy | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 0.1 " | 2.54 mm | 45 | Single | Non Specified - Single Edge | Green | 45 | 125 °C | -40 C | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 |
 EDAC Inc. | Wire Wrap | Female | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | Through Hole | Cantilever | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | 0.1 " | 2.54 mm | 45 | Single | Non Specified - Single Edge | Green | 45 | 125 °C | -40 C | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | ||
 EDAC Inc. | Solder Eyelet(s) | Female | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | Through Hole | Cantilever | Copper Alloy | 0.156 " | 3.96 mm | 0.1 " | 2.54 mm | 45 | Single | Non Specified - Single Edge | Green | 45 | 125 °C | -40 C | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | |
 EDAC Inc. | Wire Wrap | Female | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | Through Hole | Cantilever | Copper Alloy | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 0.1 " | 2.54 mm | 45 | Single | Non Specified - Single Edge | Green | 45 | 125 °C | -40 C | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 |
 EDAC Inc. | Solder | Female | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | Right Angle Through Hole | Cantilever | Copper Alloy | M3 Threaded Insert Top Mount Opening | 0.1 " | 2.54 mm | 45 | Single | Non Specified - Single Edge | Green | 45 | 125 °C | -40 C | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | ||
 EDAC Inc. | Solder | Female | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | Through Hole | Cantilever | Copper Alloy | 0.128 " | 3.25 mm | 0.1 " | 2.54 mm | 45 | Single | Non Specified - Single Edge | Green | 45 | 125 °C | -40 C | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | |
 EDAC Inc. | Wire Wrap | Female | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | Through Hole | Cantilever | Copper Alloy | M3 Threaded Insert Top Mount Opening | 0.1 " | 2.54 mm | 45 | Single | Non Specified - Single Edge | Green | 45 | 125 °C | -40 C | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | ||
 EDAC Inc. | Solder | Female | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | Through Hole | Cantilever | Copper Alloy | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 0.1 " | 2.54 mm | 45 | Single | Non Specified - Single Edge | Green | 45 | 125 °C | -40 C | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 |
 EDAC Inc. | Wire Wrap | Female | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | Through Hole | Cantilever | Copper Alloy | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 0.1 " | 2.54 mm | 45 | Single | Non Specified - Single Edge | Green | 45 | 125 °C | -40 C | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 |
 EDAC Inc. | Wire Wrap | Female | 0.25 Ám | 10 Áin | Diallyl Phthalate (DAP) | Through Hole | Cantilever | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 0.1 " | 2.54 mm | 45 | Single | Non Specified - Single Edge | Green | 45 | 125 °C | -40 C | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 |
