325320 Series

Catalog

CONN BARRIER STRP 12CIRC 0.325"

Part	Material - Insulation	Terminal Screw Material	Material Flammability Rating	Operating Temperature	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Bottom Termination	Terminal Block Type	Current Rating (Amps)	Number of Rows	Pitch	Pitch	Voltage Rating	Top Termination	Barrier Type	Number of Wire Entries	Number of Circuits	Number of Circuits [custom]	Number of Wire Entries [custom]

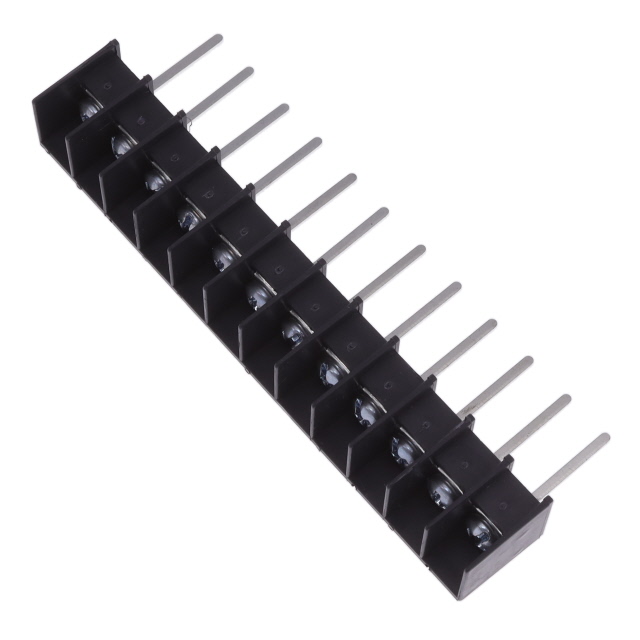

Curtis Industries 325320-12-0	Polypropylene (PP)	Steel	UL94 V-0	105 C	Through Hole	14 AWG	22 AWG	Wire Wrap	Barrier Block	15 A	1	0.325 in	8.26 mm	300 VDC	Screws	3 Wall (Tri)	12	12
Curtis Industries 325320-23-0	Polypropylene (PP)	Steel	UL94 V-0	105 C	Through Hole	14 AWG	22 AWG	Wire Wrap	Barrier Block	15 A	1	0.325 in	8.26 mm	300 VDC	Screws	3 Wall (Tri)	23		23
Curtis Industries 325320-10-0	Polypropylene (PP)	Steel	UL94 V-0	105 C	Through Hole	14 AWG	22 AWG	Wire Wrap	Barrier Block	15 A	1	0.325 in	8.26 mm	300 VDC	Screws	3 Wall (Tri)	10	10

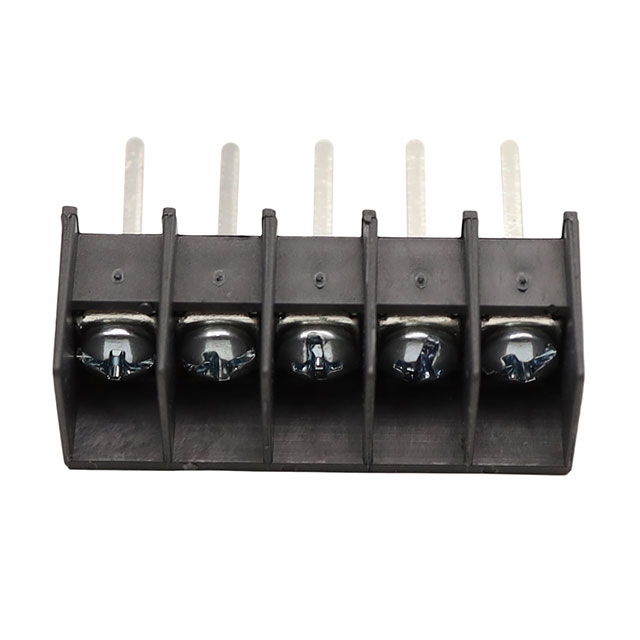

Curtis Industries 325320-05-0	Polypropylene (PP)	Steel	UL94 V-0	105 C	Through Hole	14 AWG	22 AWG	Wire Wrap	Barrier Block	15 A	1	0.325 in	8.26 mm	300 VDC	Screws	3 Wall (Tri)	5	5

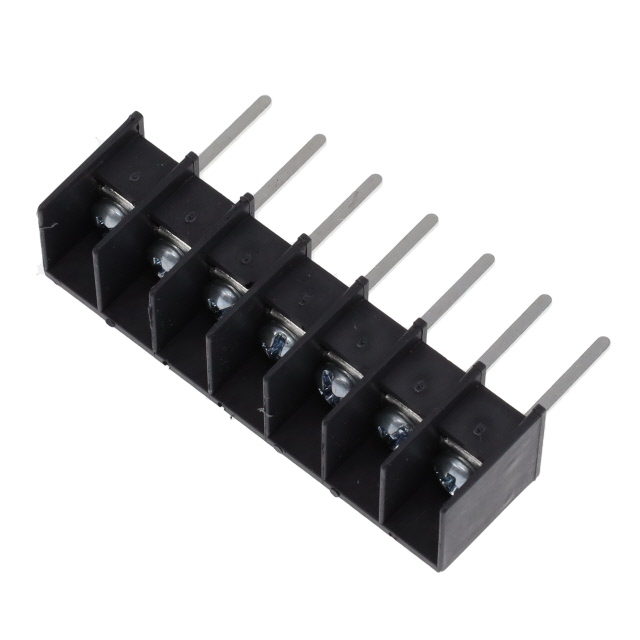

Curtis Industries 325320-07-0	Polypropylene (PP)	Steel	UL94 V-0	105 C	Through Hole	14 AWG	22 AWG	Wire Wrap	Barrier Block	15 A	1	0.325 in	8.26 mm	300 VDC	Screws	3 Wall (Tri)		7		7

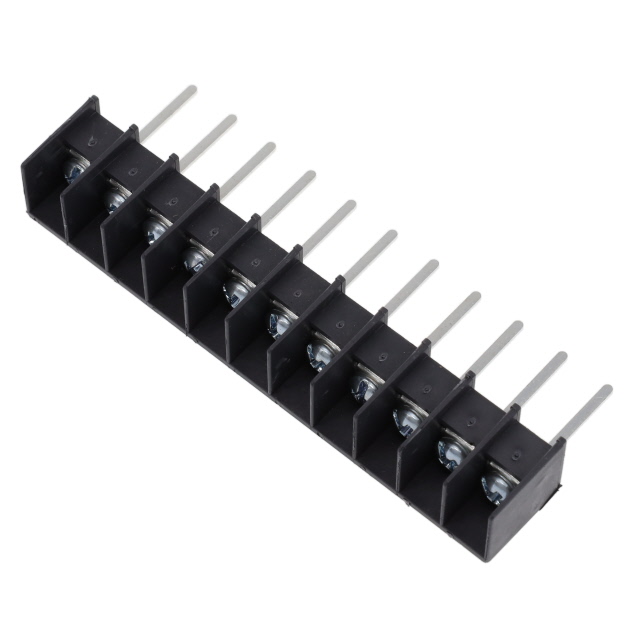

Curtis Industries 325320-11-0	Polypropylene (PP)	Steel	UL94 V-0	105 C	Through Hole	14 AWG	22 AWG	Wire Wrap	Barrier Block	15 A	1	0.325 in	8.26 mm	300 VDC	Screws	3 Wall (Tri)	11	11
Curtis Industries 325320-15-0	Polypropylene (PP)	Steel	UL94 V-0	105 C	Through Hole	14 AWG	22 AWG	Wire Wrap	Barrier Block	15 A	1	0.325 in	8.26 mm	300 VDC	Screws	3 Wall (Tri)	15	15
Curtis Industries 325320-19-0	Polypropylene (PP)	Steel	UL94 V-0	105 C	Through Hole	14 AWG	22 AWG	Wire Wrap	Barrier Block	15 A	1	0.325 in	8.26 mm	300 VDC	Screws	3 Wall (Tri)	19	19
