CHS-01T Series

Catalog

SLIDE DIP SWITCH, 1 SWITCHES, SPST, LATCHED, 0.1A, 6VDC, SOLDER TERMINAL, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT

Part	Actuator Type	Actuator Level	Termination Style	Length	Length	Current Rating (Amps)	Pitch [x]	Pitch [x]	Electrical Life	Height Above Board	Height Above Board	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Mounting Type	Contact Material	Circuit	Body Material	Contact Finish	Features	Voltage Rating

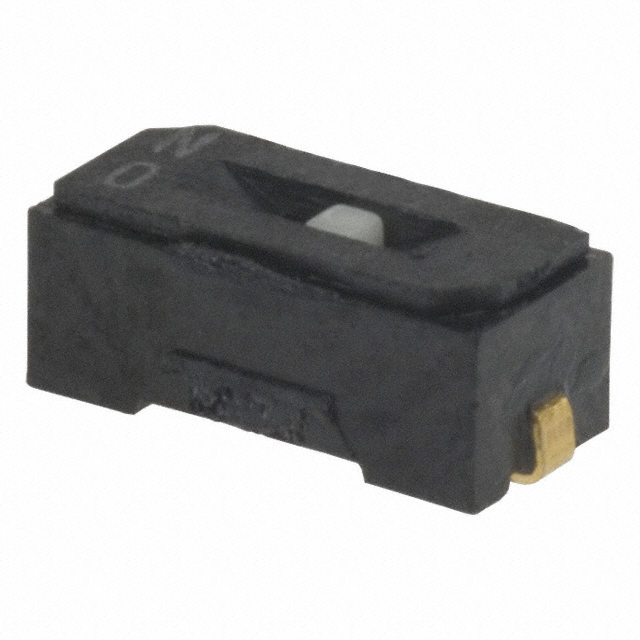

Nidec Components Corporation CHS-01TA	Slide (Standard)	Flush Recessed	J Lead	0.098 in	2.5 mm	100 mA	0.05 in	1.27 mm	2000 Steps	0.098 in	2.5 mm	85 °C	-40 °C	1	Surface Mount	Copper Alloy	SPST	Polyphenylene Sulfide (PPS)	Gold	Tape Seal	6 VDC

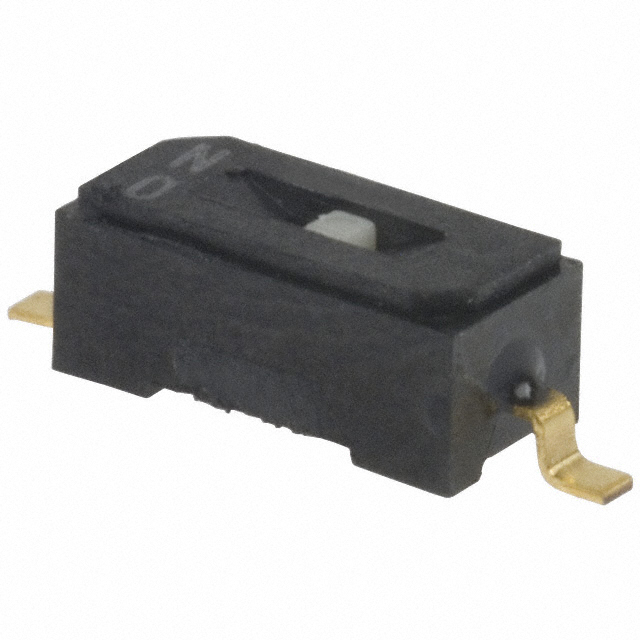

Nidec Components Corporation CHS-01TB	Slide (Standard)	Flush Recessed	Gull Wing	0.098 in	2.5 mm	100 mA	0.05 in	1.27 mm	2000 Steps	0.098 in	2.5 mm	85 °C	-40 °C	1	Surface Mount	Copper Alloy	SPST	Polyphenylene Sulfide (PPS)	Gold	Tape Seal	6 VDC
Nidec Components Corporation CHS-01TB1	Slide (Standard)	Flush Recessed	Gull Wing	0.098 in	2.5 mm	100 mA	0.05 in	1.27 mm	2000 Steps	0.098 in	2.5 mm	85 °C	-40 °C	1	Surface Mount	Copper Alloy	SPST	Polyphenylene Sulfide (PPS)	Gold		6 VDC
