200AWMDP1 Series

Manufacturer: E-Switch

Catalog

SWITCH TOGGLE DPDT 0.4VA 20V

Part	Electrical Life (Cycles)	Actuator Material	Actuator Length	Termination Style	Current Rating	Features	Switch Function	Circuit	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Voltage Rating - AC	Ingress Protection Description	Ingress Protection IP Rating	Illumination	Voltage Rating - DC	Actuator Type	Bushing Thread
E-Switch 200AWMDP1T2A1M7RE	50000	Brass Chrome Plated	6.1 mm	PC Pin	0.4 VA	Epoxy Sealed Terminals	On-On	DPDT	85 °C	-30 °C	Right Angle Through Hole Vertical	20 V	Dust Tight Waterproof	IP67	Non-Illuminated	20 V	Standard Round	Unthreaded

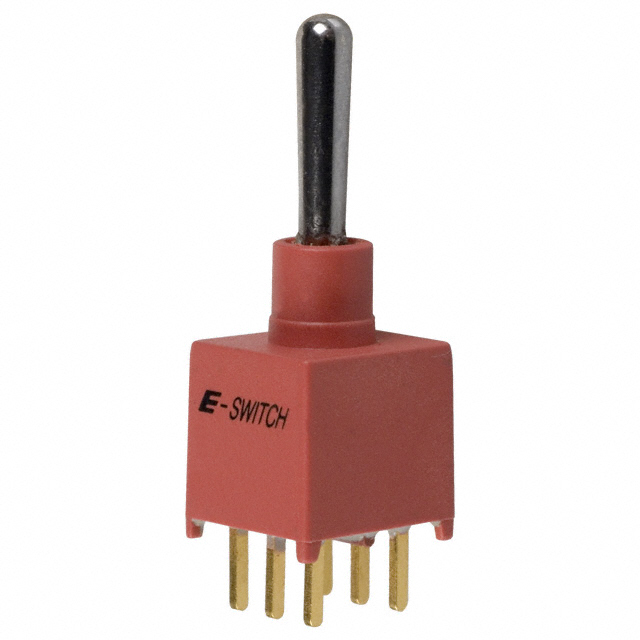

E-Switch 200AWMDP1T1A1M2RE	50000	Brass Chrome Plated	10.16 mm	PC Pin	0.4 VA	Epoxy Sealed Terminals	On-On	DPDT	85 °C	-30 °C	Through Hole	20 V	Dust Tight Waterproof	IP67	Non-Illuminated	20 V	Standard Round	Unthreaded
E-Switch 200AWMDP1T1A1M7RE	50000	Brass Chrome Plated	10.16 mm	PC Pin	0.4 VA	Epoxy Sealed Terminals	On-On	DPDT	85 °C	-30 °C	Right Angle Through Hole Vertical	20 V	Dust Tight Waterproof	IP67	Non-Illuminated	20 V	Standard Round	Unthreaded
