MS3456W20 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K
CONN PLUG MALE 14POS GOLD CRIMP
| Part | Contact Material | Shell Size - Insert (Maximum) | Shell Size - Insert (Minimum) | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Applications | Fastening Type | Color | Ingress Protection | Primary Material | Shell Finish | Shell Material | Qualification | Connector Type | Grade | Orientation | Termination | Features | Shielding | Contact Finish Thickness - Mating | Contact Finish - Mating | Number of Positions | Position Types |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

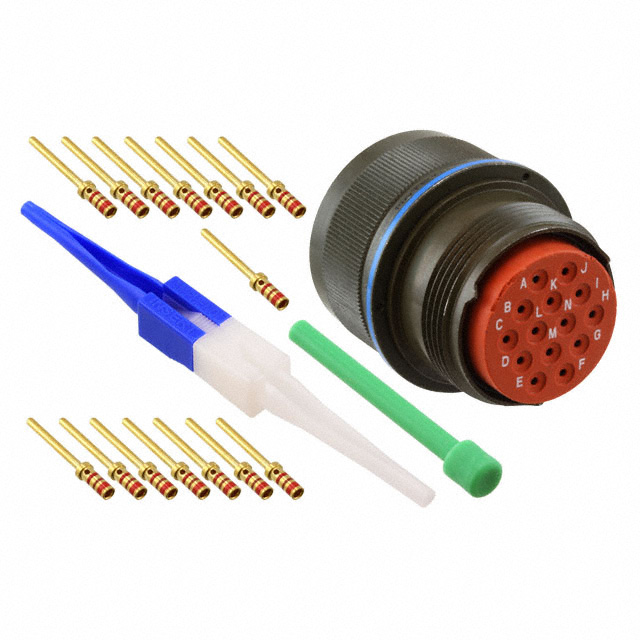

 Amphenol Aerospace Operations | Copper Alloy | 27 | 20 | 175 °C | -55 °C | Free Hanging (In-Line) | Automotive Aviation Military | Threaded | Olive Drab | Fluid Resistant | Metal | Olive Drab Cadmium | Aluminum | MIL-DTL-5015 | Male Pins Plug | Military | N (Normal) | Crimp | Coupling Nut | Unshielded | 50 µin | Gold | 14 | Power |

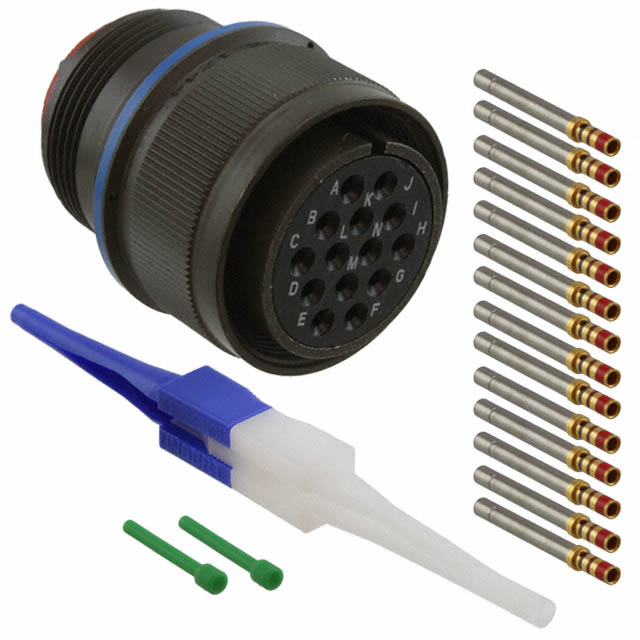

 Amphenol Aerospace Operations | Copper Alloy | 27 | 20 | 175 °C | -55 °C | Free Hanging (In-Line) | Automotive Aviation Military | Threaded | Olive Drab | Fluid Resistant | Metal | Olive Drab Cadmium | Aluminum | MIL-DTL-5015 | Female Sockets Plug | Military | N (Normal) | Crimp | Coupling Nut | Unshielded | 50 µin | Gold | 14 | Power |
