MEAS 6015 Series

Catalog

ROTOR ASSY

Part	Resistance	Output Signal	Technology	Actuator Type	Linearity	Output	Termination Style	Package / Case	For Measuring	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Resistance Tolerance	Rotation Angle - Electrical, Mechanical [Min]	Rotation Angle - Electrical, Mechanical [Max]
TE Connectivity AMP Connectors 6015-0000-062

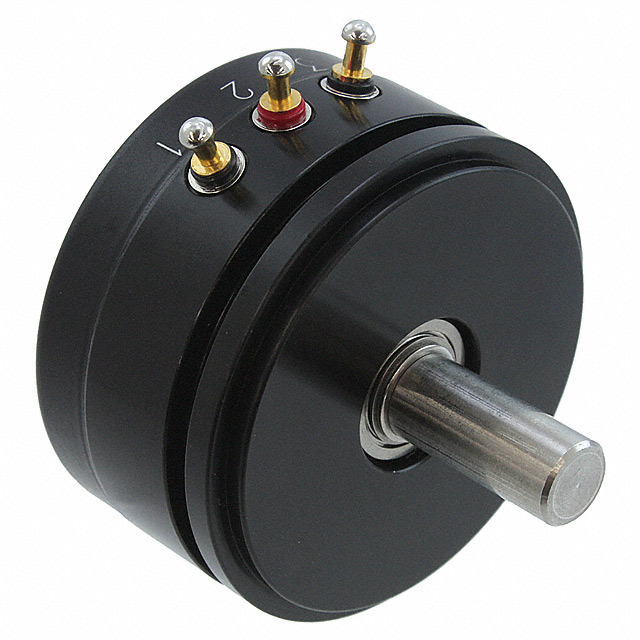

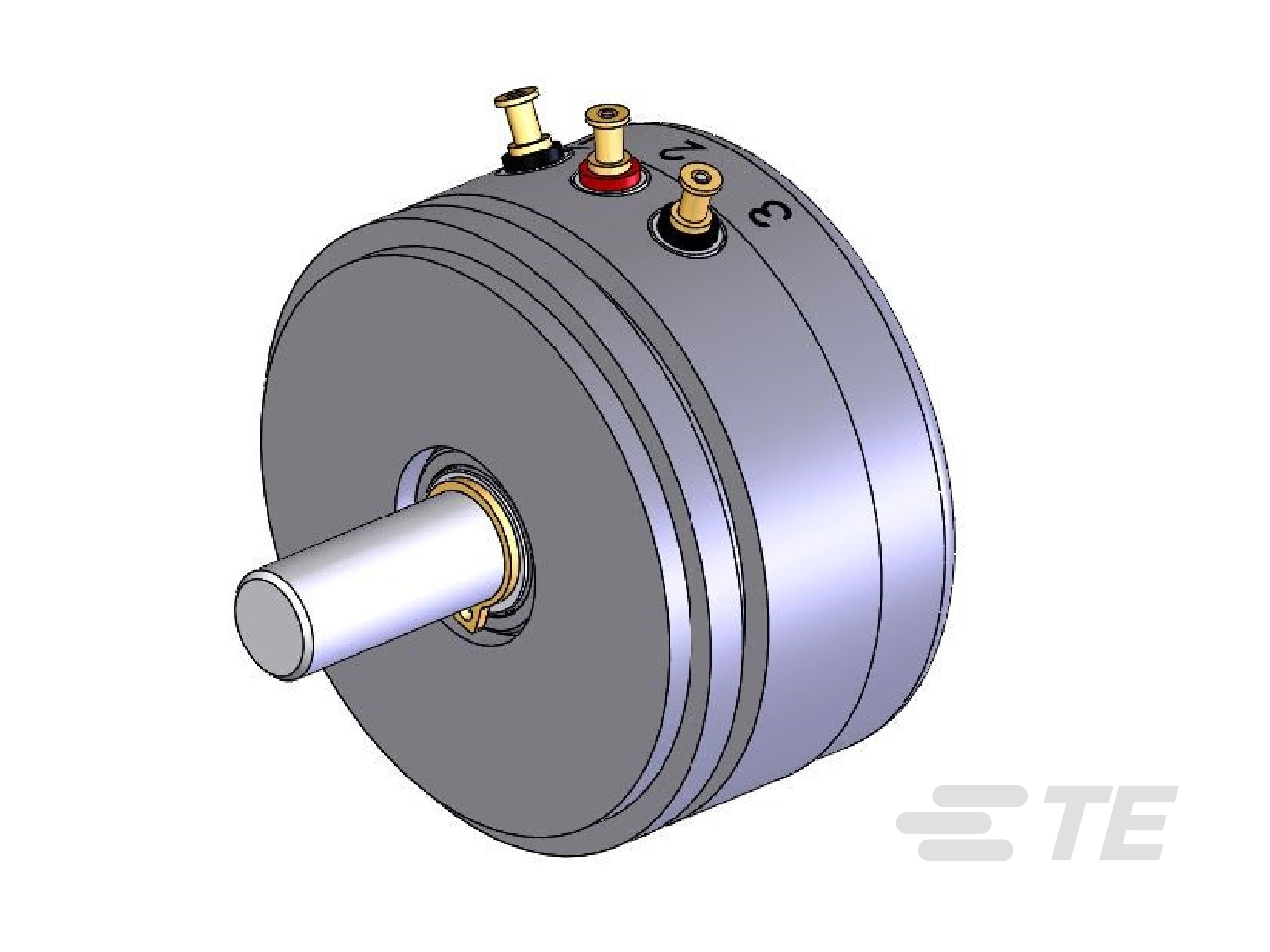

TE Connectivity AMP Connectors 6015-1003-030	10000 Ohms	Clockwise Increase	Resistive	Round Shaft	0.5 %	Resistive	Solder Turret	Module	Rotary Position	-65 ░C	125 °C	Custom	10%	0 °	340 °
TE Connectivity AMP Connectors 6015-1002-030	5 kOhms	Clockwise Increase	Resistive	Round Shaft	0.5 %	Resistive	Solder Turret	Module	Rotary Position	-65 ░C	125 °C	Custom	10%	0 °	340 °
