TRA8903 Series

Catalog

OMNI PH PMT 890-960MHZ

Part	Power - Max [Max]	Height (Max) [Max] [z]	Height (Max) [z]	Frequency (Center/Band)	Frequency Range [Max]	Frequency Range [Min]	Termination	Mounting Type	Antenna Type	Gain	Number of Bands	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	Applications	VSWR	RF Family/Standard
TE Connectivity AMP Connectors TRA8903PT83SM	150 W	2.7 in	68.58 mm	925 MHz	960 MHz	890 MHz	NMO	Base Mount	Dome	3 dBi	1	1 GHz	UHF	300 MHz
TE Connectivity AMP Connectors TRA8903N	100 W	2.7 in	68.58 mm	900 MHz	960 MHz	890 MHz	NMO	Base Mount	Dome	3 dBi	1	1 GHz	UHF	300 MHz	GSM	2	Cellular

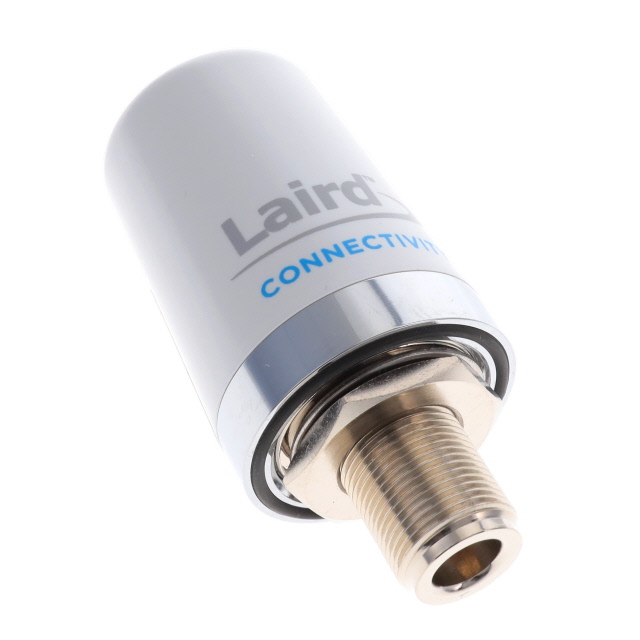

TE Connectivity AMP Connectors TRA8903NP	100 W	2.7 in	68.58 mm	900 MHz	960 MHz	890 MHz	N Type Female	Panel Mount	Dome	3 dBi	1	1 GHz	UHF	300 MHz	GSM	2	Cellular
TE Connectivity AMP Connectors TRA8903P	100 W	2.7 in	68.58 mm	900 MHz	960 MHz	890 MHz	N Type Female	Panel Mount	Dome	3 dBi	1	1 GHz	UHF	300 MHz	GSM	2	Cellular
TE Connectivity AMP Connectors TRA8903N	100 W	2.7 in	68.58 mm	900 MHz	960 MHz	890 MHz	NMO	Base Mount	Dome	3 dBi	1	1 GHz	UHF	300 MHz	GSM	2	Cellular
TE Connectivity AMP Connectors TRA8903NP	100 W	2.7 in	68.58 mm	900 MHz	960 MHz	890 MHz	N Type Female	Panel Mount	Dome	3 dBi	1	1 GHz	UHF	300 MHz	GSM	2	Cellular
TE Connectivity AMP Connectors TRA8903PT83SM	150 W	2.7 in	68.58 mm	925 MHz	960 MHz	890 MHz	NMO	Base Mount	Dome	3 dBi	1	1 GHz	UHF	300 MHz
TE Connectivity AMP Connectors TRA8903P	100 W	2.7 in	68.58 mm	900 MHz	960 MHz	890 MHz	N Type Female	Panel Mount	Dome	3 dBi	1	1 GHz	UHF	300 MHz	GSM	2	Cellular
