HMC3587 Series

HBT Gain Block MMIC Amplifier, 4 - 10 GHz

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

HBT Gain Block MMIC Amplifier, 4 - 10 GHz

Part	For Use With/Related Products	Supplied Contents	Utilized IC / Part	Frequency [Max]	Frequency [Min]	Type	Contents	Noise Figure	Supplier Device Package	P1dB	Mounting Type	Current - Supply	Gain	RF Type	Test Frequency [Min]	Test Frequency [Max]	Package / Case

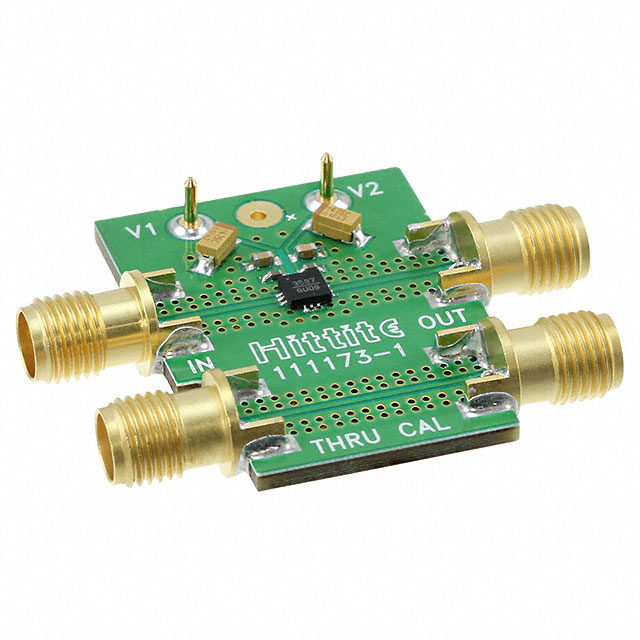

Analog Devices Inc./Maxim Integrated 113589-HMC3587LP3B	HMC3587LP3B	Board(s)	HMC3587LP3B	10 GHz	4 GHz	Amplifier	Board(s)
Analog Devices Inc./Maxim Integrated HMC3587LP3BE				10 GHz	4 GHz			4.5 dB	12-SMT (3x3)	11 dBm	Surface Mount	47 mA	14.5 dBi	General Purpose	4 GHz	5 GHz	12-VFQFN Exposed Pad
Analog Devices Inc./Maxim Integrated HMC3587LP3BETR				10 GHz	4 GHz			4.5 dB	12-SMT (3x3)	11 dBm	Surface Mount	47 mA	14.5 dBi	General Purpose	4 GHz	5 GHz	12-VFQFN Exposed Pad

Catalog

HBT Gain Block MMIC Amplifier, 4 - 10 GHz

Description

The HMC3587LP 3BE is a HBT Gain Block MMI C amplifier covering 4 GHz to 10 GHz and packaged in a 3×3 mm plastic QFN SM T package. This versatile amplifier can be used as a cascadable IF or RF gain stage in 50 Ohm applications. The HMC3587LP 3BE delivers 14.5 dB gain, and +13 dBm output P1dB with only 3.5 dB noise figure.ApplicationsCellular / PCS / 3GFixed Wireless & WLANCATV, Cable Modem & DBSMicrowave Radio & Test EquipmentIF & RF Applications
