RAYCHEM RPPM Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RPPM-16/4-X-44MM

Part	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Features	Material	Shelf Life	Shrink Temperature	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Length	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Shrinkage Ratio	Color	Inner Diameter - Recovered	Inner Diameter - Recovered	Length [x]	Length [x]	Length [x]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]
TE Connectivity AMP Connectors RPPM-16/4-X-44MM	3.99 mm	0.157 "	Abrasion Resistant	Polyolefin (PO) Irradiated	36 Months	60 °C	35 °C	32 °F	95 °F	0.059 in	1.5 mm	0.63 in	16 mm	Tubing Semi Rigid	44 mm	1.728 in	1.73 in	85 °C	-40 C	4 to 1	Clear
TE Connectivity AMP Connectors RPPM-NR510-X-40MM			Abrasion Resistant Adhesive Lined Moisture-Proof	Polyolefin (PO) Irradiated	36 Months	60 °C	35 °C	32 °F	95 °F	0.063 in	1.6 mm	0.374 "	9.5 mm	Tubing Semi Rigid	40 mm	0.131 '	1.57 "	85 °C	-40 C	4 to 1	Clear	1.5 mm	0.059 "

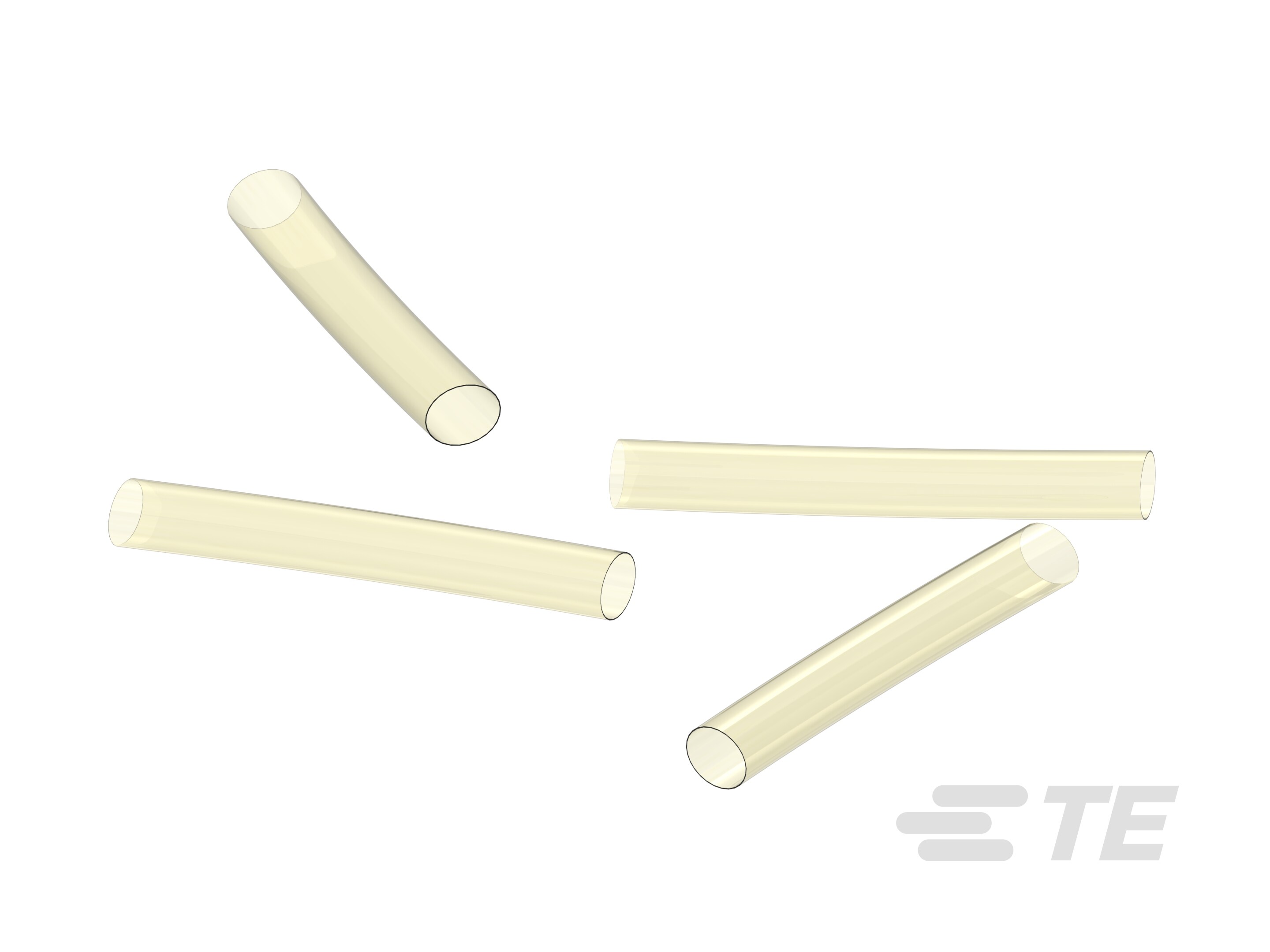

TE Connectivity AMP Connectors RPPM-12/3-X-STK	3 mm	0.118 in	Abrasion Resistant Adhesive Lined Moisture-Proof	Polyolefin (PO) Irradiated	36 Months	60 °C	35 °C	32 °F	95 °F	0.047 in	1.19 mm	0.472 in	11.99 mm	Tubing Semi Rigid				85 °C	-40 C	4 to 1	Clear			4 ft	1.22 m
TE Connectivity AMP Connectors RPPM-4/1-X-35MM			Abrasion Resistant Adhesive Lined Fluid Resistant	Polyolefin (PO) Irradiated	36 Months	60 °C	35 °C	32 °F	95 °F	0.031 in	0.79 mm	0.157 "	3.99 mm	Tubing Semi Rigid				85 °C	-40 C	4 to 1	Clear	0.99 mm	0.039 in	0.114 ft	35 mm	1.37 "
TE Connectivity AMP Connectors RPPM-NR501-X-65MM	1.8 mm	0.071 in	Abrasion Resistant Adhesive Lined Moisture-Proof	Polyolefin (PO) Irradiated	36 Months	60 °C	35 °C	32 °F	95 °F	0.071 in	1.8 mm	0.413 in	10.49 mm	Tubing Semi Rigid				85 °C	-40 C	4 to 1	Clear			0.213 '	65 mm	2.56 "
TE Connectivity AMP Connectors RPPM-16/4-X-STK	3.99 mm	0.157 "	Abrasion Resistant Adhesive Lined Fluid Resistant	Polyolefin (PO) Irradiated	36 Months	60 °C	35 °C	32 °F	95 °F	0.059 in	1.5 mm	0.63 in	16 mm	Tubing Semi Rigid				85 °C	-40 C	4 to 1	Clear			4 ft	1.22 m

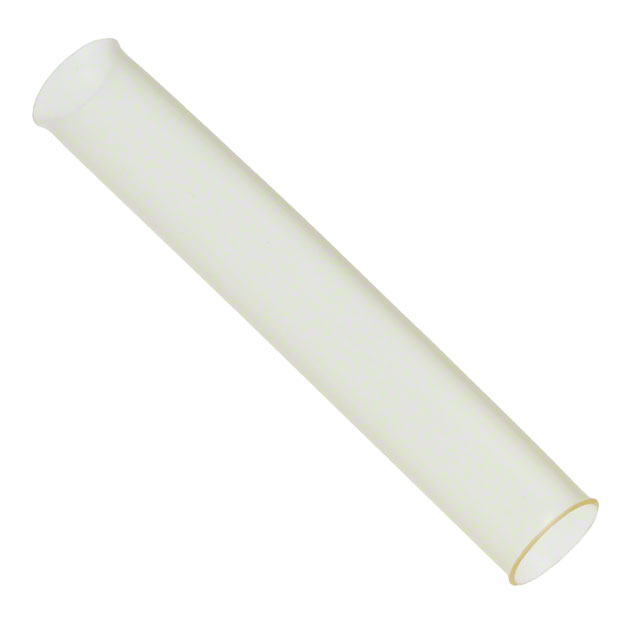

TE Connectivity AMP Connectors RPPM-4/1-X-40MM			Abrasion Resistant Adhesive Lined Moisture-Proof	Polyolefin (PO) Irradiated	36 Months	60 °C	35 °C	32 °F	95 °F	0.032 in	0.81 mm	0.158 "	4.01 mm	Tubing Flexible	40 mm	0.131 '	1.57 "	85 °C	-40 C	4 to 1	Clear	0.99 mm	0.039 in
TE Connectivity AMP Connectors RPPM-NR510-X-80MM			Abrasion Resistant Adhesive Lined Moisture-Proof	Polyolefin (PO) Irradiated	36 Months	60 °C	35 °C	32 °F	95 °F	0.063 in	1.6 mm	0.374 "	9.5 mm	Tubing Semi Rigid	0.08 m	0.262 ft	3.15 "	85 °C	-40 C		Clear	1.5 mm	0.059 "				1	6
TE Connectivity AMP Connectors RPPM-NR510-X-50MM	1.8 mm	0.071 in	Abrasion Resistant Adhesive Lined Moisture-Proof	Polyolefin (PO) Irradiated	36 Months	60 °C	35 °C	32 °F	95 °F	0.063 in	1.6 mm	0.411 in	10.44 mm	Tubing Semi Rigid	50 mm	0.164 ft	1.97 in	85 °C	-40 C		Clear						1	6
TE Connectivity AMP Connectors RPPM-12/3-X-65MM	3 mm	0.118 in	Abrasion Resistant Adhesive Lined Fluid Resistant	Polyolefin (PO) Irradiated	36 Months	60 °C	35 °C	32 °F	95 °F	0.047 in	1.19 mm	0.472 in	11.99 mm	Tubing Semi Rigid				85 °C	-40 C	4 to 1	Clear			0.213 '	65 mm	2.56 "
