ADXL343 Series

Catalog

BOARD MOTHER FOR ADXL343Z

Part	Supplied Contents	Sensitivity	Utilized IC / Part	Contents	Sensor Type	Interface	Sensing Range	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensitivity (LSB/g)	Operating Temperature [Max]	Operating Temperature [Min]	Axis [z]	Axis [y]	Axis [x]	Acceleration Range	Type	Output Type	Bandwidth [Max]	Bandwidth [Min]	Features	Mounting Type	Package / Case

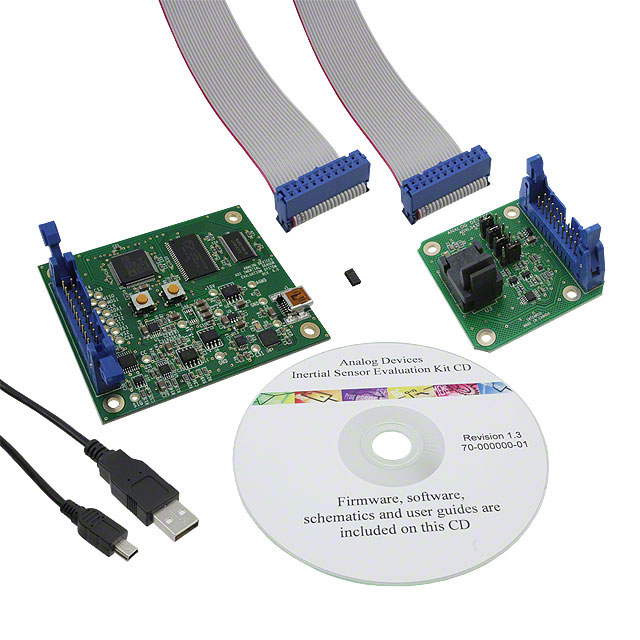

Analog Devices Inc./Maxim Integrated EVAL-ADXL343Z-M	Board(s) Cable(s)	32 LSB/g 64 LSB/G 128 LSB/g 256 LSB/g	ADXL343	Board Cable	Accelerometer 3 Axis	I2C Serial SPI	2 g 4 g 8 g 16 g	3.6 V	2 V
Analog Devices Inc./Maxim Integrated EVAL-ADXL343Z-DB		32 LSB/g 64 LSB/G 128 LSB/g 256 LSB/g	ADXL343	Board(s)	Accelerometer 3 Axis	I2C Serial SPI	2 g 4 g 8 g 16 g	3.6 V	2 V
Analog Devices Inc./Maxim Integrated ADXL343BCCZ-RL								3.6 V	2 V	32 LSB/g 256 LSB/g	85 °C	-40 C	Z	Y	X	2 g 4 g 8 g 16 g	Digital	I2C SPI	1.6 kHz	0.05 Hz	Adjustable Bandwidth	Surface Mount	14-VFLGA

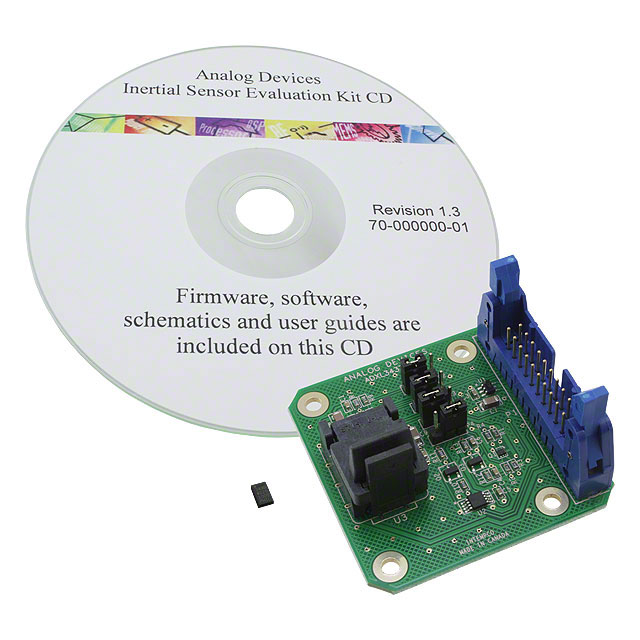

Analog Devices Inc./Maxim Integrated EVAL-ADXL343Z-S	Board(s)	32 LSB/g 64 LSB/G 128 LSB/g 256 LSB/g	ADXL343	Board(s)	Accelerometer 3 Axis	I2C Serial SPI	2 g 4 g 8 g 16 g	3.6 V	2 V
Analog Devices Inc./Maxim Integrated ADXL343BCCZ-RL7								3.6 V	2 V	32 LSB/g 256 LSB/g	85 °C	-40 C	Z	Y	X	2 g 4 g 8 g 16 g	Digital	I2C SPI	1.6 kHz	0.05 Hz	Adjustable Bandwidth	Surface Mount	14-VFLGA
