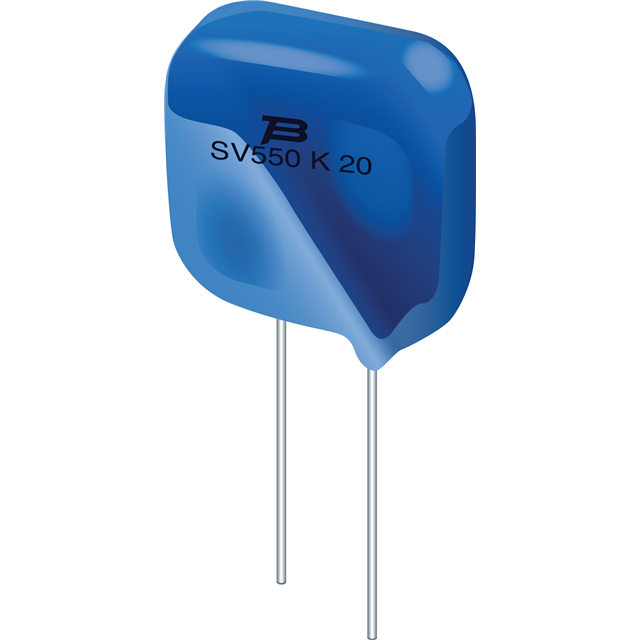

SV Series

Catalog

VARISTOR, MOV, 360V, DISC 23MM ROHS COMPLIANT: YES

Part	Capacitance @ Frequency	Varistor Voltage (Min) [Min]	Maximum DC Volts [Max]	Maximum AC Volts [Max]	Number of Circuits	Varistor Voltage (Typ)	Current - Surge	Energy	Varistor Voltage (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Varistor Voltage (Max)	Maximum DC Volts	Package / Case [diameter]
Bourns Inc. SV150K23BL1	3050 pF	216 V	200 V	150 V	1	240 V	15 kA	270 J	264 V	Radial	125 °C	-40 °C	Through Hole
Bourns Inc. SV420K14BL1	380 pF	612 V	560 V	420 V	1	680 V	8 kA	253 J	748 V	Disc 14mm	125 °C	-40 °C	Through Hole
Bourns Inc. SV75K20BL1	3100 pF	108 V	100 V	75 V	1	120 V	12 kA	101 J		Disc	125 °C	-40 °C	Through Hole	20 mm
Bourns Inc. SV250K7BL1	1 kHz 240 pF	351 V	320 V	250 V	1	390 V	1750 A	38 J	429 V	Disc 7mm	125 °C	-40 °C	Through Hole
Bourns Inc. SV115K14BL1	1230 pF	162 V	150 V	115 V	1	180 V	8 kA	78 J	198 V	Disc 14mm	125 °C	-40 °C	Through Hole
Bourns Inc. SV275K14RL1	1 kHz 550 pF	387 V	350 V	275 V	1	430 V	8 kA	187 J		Disc 14mm	125 °C	-40 °C	Through Hole		473 V
Bourns Inc. SV60K5BL1	1 kHz 370 pF	90 V		60 V	1	100 V	600 A	4 J	110 V	Disc 5mm	125 °C	-40 °C	Through Hole			85 V
Bourns Inc. SV150K10BL1	1 kHz 590 pF	216 V	200 V	150 V	1	240 V	3.5 kA	51 J	264 V	Radial	125 °C	-40 °C	Through Hole
Bourns Inc. SV175K23BL1	2870 pF	243 V	225 V	175 V	1	270 V	15 kA	305 J	297 V	Disc	125 °C	-40 °C	Through Hole				23 mm
Bourns Inc. SV150K14BL1	690 pF	216 V	200 V	150 V	1	240 V	8 kA	101 J	264 V	Radial	125 °C	-40 °C	Through Hole
