ABS451 Series

Catalog

SWITCH SNAP ACTION SPDT 2A 125V

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Overtravel [custom]	Overtravel [custom]	Pretravel	Pretravel	Circuit	Actuator Type	Ingress Protection	Electrical Life	Release Force	Termination Style	Voltage Rating - DC	Operating Position	Operating Position	Mechanical Life	Mounting Type	Differential Travel	Differential Travel	Operating Force	Current Rating (Amps)	Voltage Rating - AC	Switch Function	Overtravel	Overtravel
Panasonic Electronic Components ABS4516403	Actuator Mounted Right Side	85 °C	-40 C	0.79 mm	0.031 "	0.1 in	2.5 mm	SPDT	Lever Roller	IP50 - Dust Protected	50000 Cycles	3.5 gf	PC Pin	30 V	0.571 in	14.5 mm	5000000 Cycles	Right Angle Through Hole	0.5 mm	0.02 in	40 gf	2 A	125 V	On-Mom

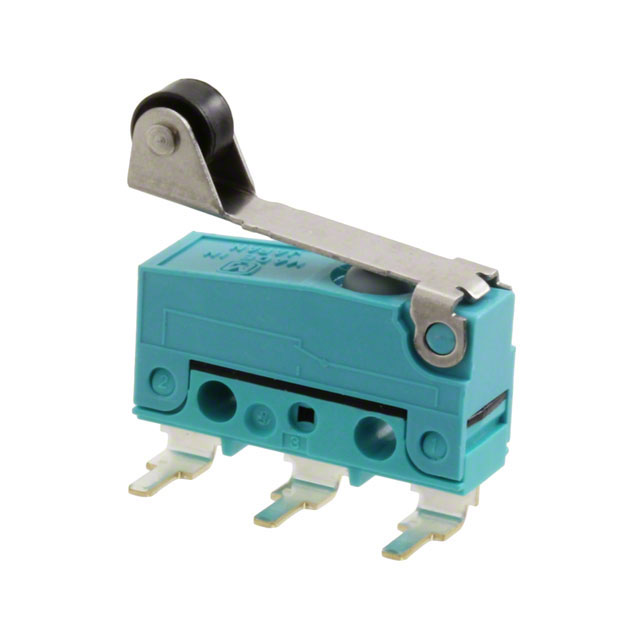

Panasonic Electronic Components ABS4516549	Actuator Mounted Right Side	85 °C	-40 C	0.81 mm	0.032 "	0.1 in	2.5 mm	SPDT	Lever Roller	IP50 - Dust Protected	200000 Cycles	4.079 gf	PC Pin	30 V	0.571 in	14.5 mm	5000000 Cycles	Right Angle Through Hole	0.5 mm	0.02 in	60 gf	100 mA		On-Mom
Panasonic Electronic Components ABS4512349	Actuator Mounted Right Side	85 °C	-40 C			0.11 in	2.8 mm	SPDT	Lever Straight	IP50 - Dust Protected	200000 Cycles	1.734 gf	PC Pin	30 V	0.345 in	8.8 mm	5000000 Cycles	Right Angle Through Hole	0.8 mm	0.031 in	28 gf	100 mA		On-Mom	1.2 mm	0.047 "
