SJ-63 Series

Catalog

CONN JACK 6COND 3.5MM R/A

Part	Current Rating (Amps)	Contact Material - Plating	Contact Material	Actual Diameter [diameter]	Actual Diameter [diameter]	Gender	Shielding	Mounting Type	Signal Lines	Termination	Voltage - Rated	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Body Color	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Connector Type	Housing Material	Body Material	Mating Length/Depth [z]	Mating Length/Depth [z]	Thread Size	Features	Operating Temperature [Min]	Operating Temperature [Max]	Signal Lines	Internal Switch(s)

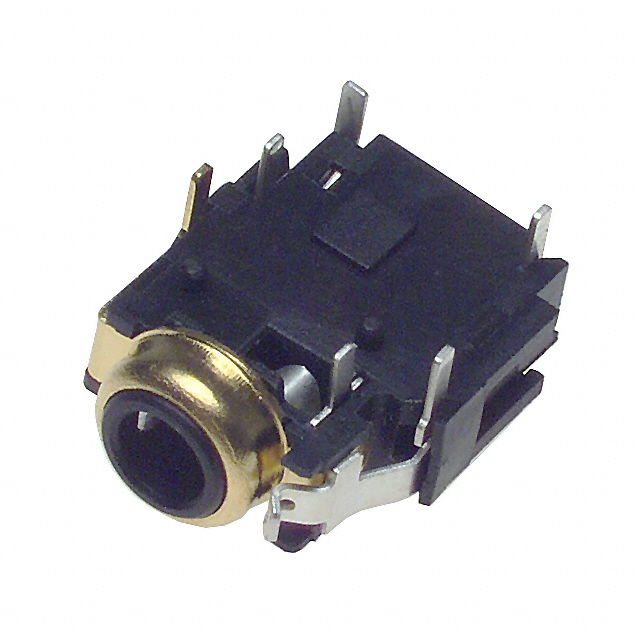

Same Sky (Formerly CUI Devices) SJ-63516	0.3 A	Tin	Brass	0.142 in	3.6 mm	Female	Unshielded	Right Angle Through Hole	6 Conductor	Solder	16 V	6	6	Black	0.125 in	3.5 mm	0.141 in	Phone Jack
Same Sky (Formerly CUI Devices) SJ-63516				0.142 in	3.6 mm	Female	Unshielded	Right Angle Through Hole	6 Conductor	Solder		6	6		0.125 in	3.5 mm	0.141 in	Phone Jack

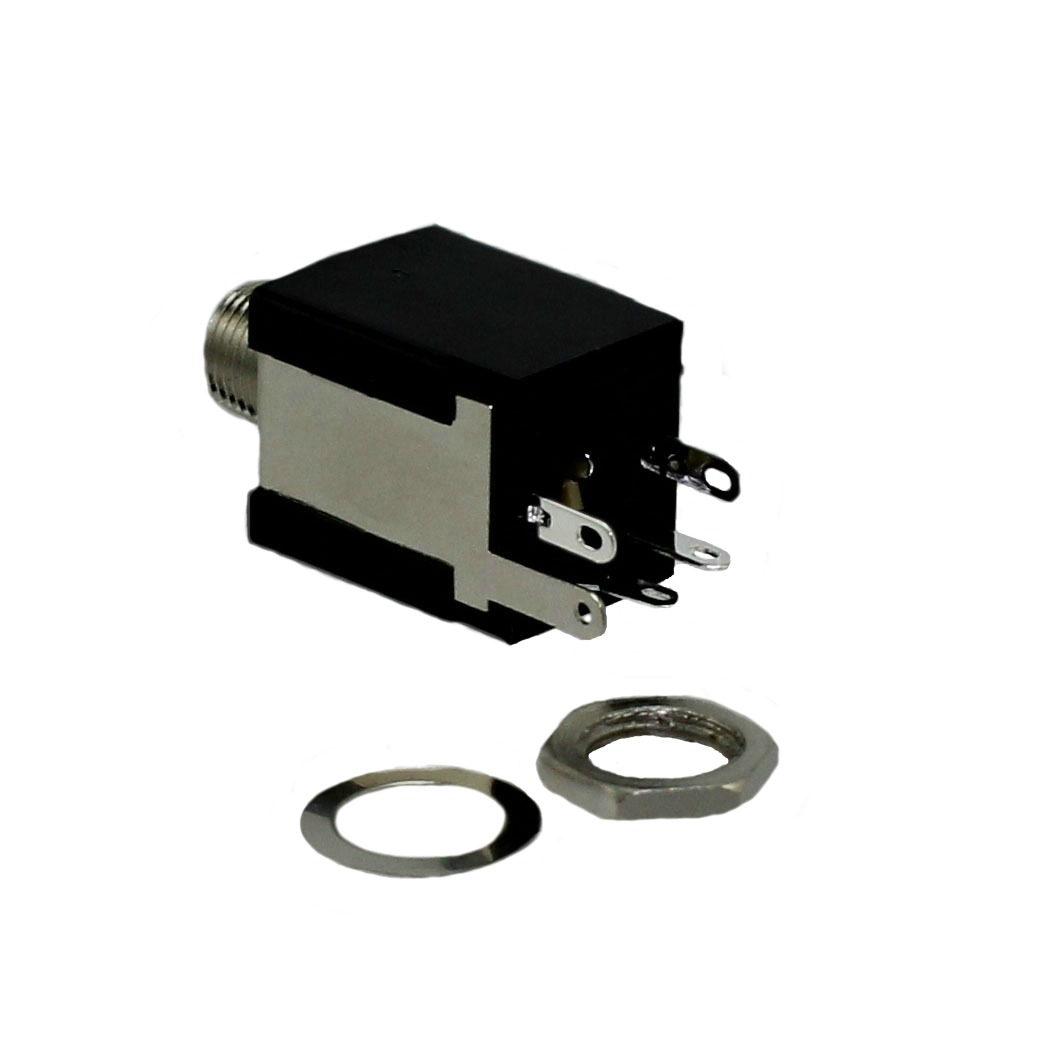

Same Sky (Formerly CUI Devices) SJ-63013G	1 A	Silver	Brass Phosphor Bronze	0.252 in	6.4 mm	Female	Unshielded	Panel Mount		Solder Eyelet(s)	12 VDC	5	3	Black Silver				Phone Jack	Polyoxymethylene (POM)	Brass	1.22 in	31 mm	M9x0.75	Cover Mounting Hardware Thread Lock	-25 °C	70 °C	Stereo (3 Conductor TRS)	Single Switch
Same Sky (Formerly CUI Devices) SJ-63072J	1 A	Silver	Phosphor Bronze			Female	Unshielded	Right Angle Through Hole		Solder	12 VDC	4	2	Black				Phone Jack			1.22 in	31 mm	7/16"-20	Mounting Hardware Thread Lock	-25 °C	70 °C	Mono	Two Switches
