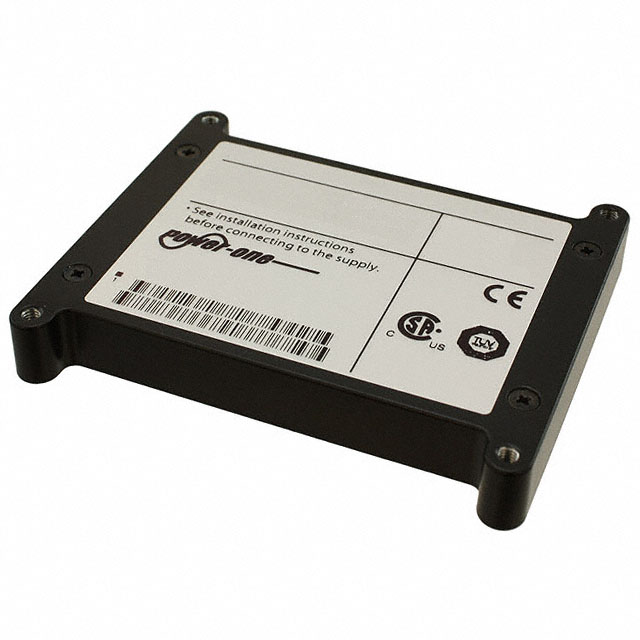

110IMX35 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
DC DC CONVERTER 5V 15V 15V 35W
| Part | Voltage - Output 1 | Voltage - Output 2 | Package / Case | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Efficiency | Number of Outputs | Current - Output (Max) | Type | Mounting Type | Features | Voltage - Input (Min) [Min] | Voltage - Output 3 | Voltage - Input (Max) [Max] | Voltage - Isolation | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 5 V | 15 V | 19-DIP Module 17 Leads | 35 W | 85 °C | -40 C | ITE (Commercial) Railway | 88 % | 4 | 1.4 A 600 mA | Isolated Module Conformal Coated | Through Hole | OCP OTP OVP SCP UVLO | 60 V | 15 V | 150 V | 2500 V | ||||||
 Bel Fuse Inc. | 5 V | 15 V | 19-DIP Module 17 Leads | 35 W | 85 °C | -40 C | ITE (Commercial) Railway | 88 % | 4 | 1.4 A 600 mA | Isolated Module Conformal Coated | Through Hole | OCP OTP OVP SCP UVLO | 60 V | 15 V | 150 V | 2500 V | 10.5 mm | 3 " | 76.2 mm | 2.5 " | 0.41 in | 63.5 mm |
Bel Fuse Inc. | 15 V | 15 V | 19-DIP Module | 35 W | 85 °C | -40 C | ITE (Commercial) Railway | 88 % | 4 | 600 mA | Isolated Module Conformal Coated | Through Hole | OCP OTP SCP UVLO | 60 V | 15 V | 150 V | 2500 V | 10.5 mm | 3 " | 76.2 mm | 2.5 " | 0.41 in | 63.5 mm |
Bel Fuse Inc. | 12 V | 12 V | 19-DIP Module | 35 W | 85 °C | -40 C | ITE (Commercial) Railway | 88 % | 4 | 700 mA | Isolated Module Conformal Coated | Through Hole | OCP OTP SCP UVLO | 60 V | 12 V | 150 V | 2500 V | 10.5 mm | 3 " | 76.2 mm | 2.5 " | 0.41 in | 63.5 mm |
