300-30 Series

Manufacturer: CNC Tech

Catalog

CBL RIBN 20COND 0.025 GRAY 100'

Part	Insulation Resistance	Conductor Material	First Conductor Mark	Ribbon Width [custom]	Ribbon Width [custom]	Shielding	Number of Conductors	Length	Length	Operating Temperature	Jacket Color	Pitch	Pitch	Cable Type	Ribbon Thickness	Ribbon Thickness	Wire Gauge	Ratings	Jacket (Insulation) Material	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length [x]	Length [x]	Spool Size	Spool Size	Number of Conductors [custom]

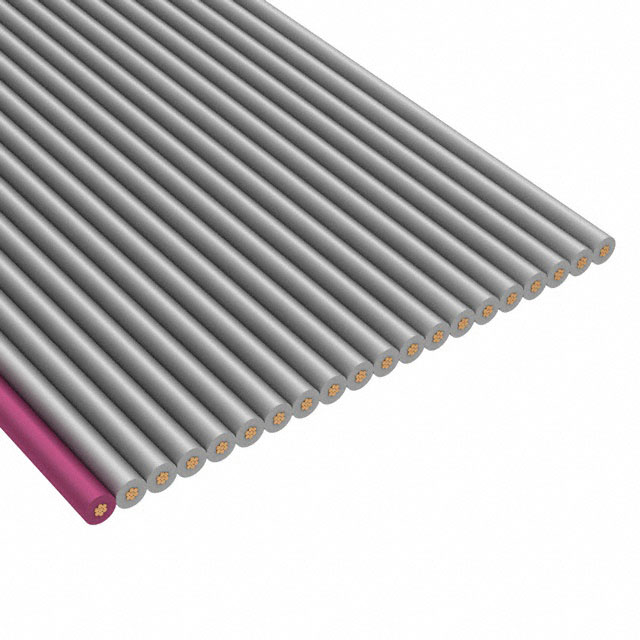

CNC Tech 300-30-20-GR-0100F	100 MOhms	Copper Bare	Red	12.7 mm	0.5 in	Unshielded	20	100 '	30.48 m	105 C	Gray	0.64 mm	0.025 in	Flat Cable	0.66 mm	0.026 in	30 AWG	UL Style 2678	Poly-Vinyl Chloride (PVC)	150 V	38 AWG	7 Strands

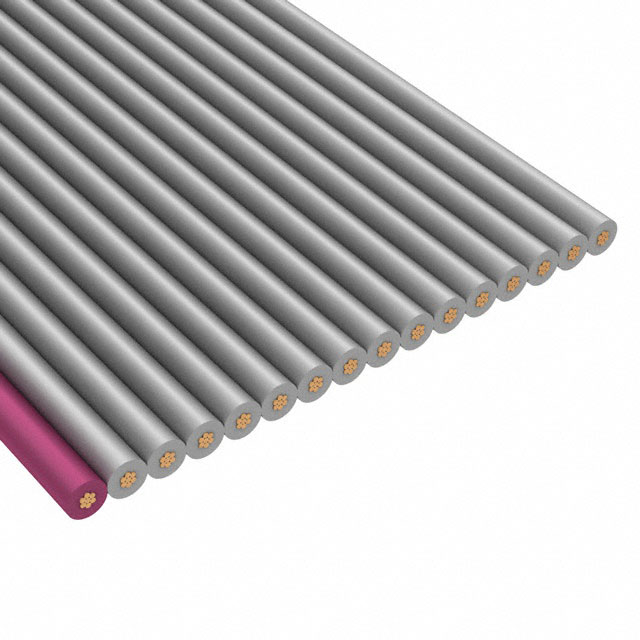

CNC Tech 300-30-16-GR-0250F	100 MOhms	Copper Bare	Red	10.16 mm	0.4 in	Unshielded	16	1 ft 10 ft 25 ft 250 ft	3.05 m 7.62 m 76.2 m 304.8 mm	105 C	Gray	0.64 mm	0.025 in	Flat Cable	0.66 mm	0.026 in	30 AWG	UL Style 2678	Poly-Vinyl Chloride (PVC)	150 V	38 AWG	7 Strands	Enter Number of Feet in Order Quantity	50 ft	15.24 m

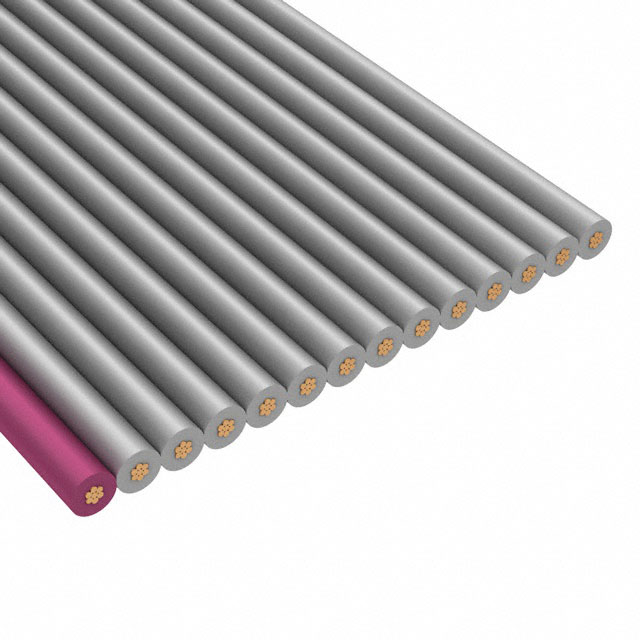

CNC Tech 300-30-14-GR-0250F	100 MOhms	Copper Tinned	Red	8.89 mm	0.35 in	Unshielded	14	1 ft 10 ft 25 ft 250 ft	3.05 m 7.62 m 76.2 m 304.8 mm	105 C	Gray	0.64 mm	0.025 in	Flat Cable	0.66 mm	0.026 in	30 AWG	UL Style 2678	Poly-Vinyl Chloride (PVC)	150 V	38 AWG	7 Strands	Enter Number of Feet in Order Quantity	50 ft	15.24 m
CNC Tech 300-30-20-GR-0250F	1 GOhms 100 MOhms	Copper Bare	Red	12.7 mm	0.5 in	Unshielded	20	1 ft 10 ft 25 ft 250 ft	3.05 m 7.62 m 76.2 m 304.8 mm	105 C	Gray	0.64 mm	0.025 in	Flat Cable	0.66 mm	0.026 in	30 AWG	UL Style 2678	Poly-Vinyl Chloride (PVC)	150 V	38 AWG	7 Strands	Enter Number of Feet in Order Quantity	50 ft	15.24 m	250 ft	76.2 m
CNC Tech 300-30-10-GR-0100F	100 MOhms	Copper Tinned	Red	6.35 mm	0.25 in	Unshielded		100 '	30.48 m	105 C	Gray	0.64 mm	0.025 in	Flat Cable	0.66 mm	0.026 in	30 AWG	UL Style 2678	Poly-Vinyl Chloride (PVC)	150 V	38 AWG	7 Strands						10
CNC Tech 300-30-14-GR-0100F	100 MOhms	Copper Bare	Red	8.89 mm	0.35 in	Unshielded	14	100 '	30.48 m	105 C	Gray	0.64 mm	0.025 in	Flat Cable	0.66 mm	0.026 in	30 AWG	UL Style 2678	Poly-Vinyl Chloride (PVC)	150 V	38 AWG	7 Strands
CNC Tech 300-30-04-GR-0100F	100 MOhms	Copper Bare	Red	6.35 mm	0.25 in	Unshielded	4	100 '	30.48 m	105 C	Gray	0.64 mm	0.025 in	Flat Cable	0.66 mm	0.026 in	30 AWG	UL Style 2678	Poly-Vinyl Chloride (PVC)	150 V	38 AWG	7 Strands
CNC Tech 300-30-26-GR-0250F	100 MOhms	Copper Bare	Red	16.51 mm	0.65 in	Unshielded	26	1 ft 10 ft 25 ft 250 ft	3.05 m 7.62 m 76.2 m 304.8 mm	105 C	Gray	0.64 mm	0.025 in	Flat Cable	0.66 mm	0.026 in	30 AWG	UL Style 2678	Poly-Vinyl Chloride (PVC)	150 V	38 AWG	7 Strands	Enter Number of Feet in Order Quantity	50 ft	15.24 m

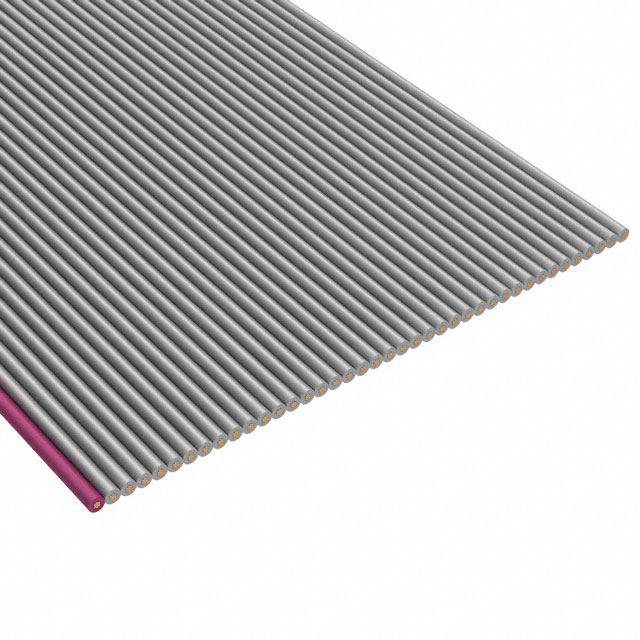

CNC Tech 300-30-40-GR-0100F	100 MOhms	Copper Bare	Red	25.4 mm	1 in	Unshielded	40	100 '	30.48 m	105 C	Gray	0.64 mm	0.025 in	Flat Cable	0.66 mm	0.026 in	30 AWG	UL Style 2678	Poly-Vinyl Chloride (PVC)	150 V	38 AWG	7 Strands
CNC Tech 300-30-50-GR-0100F	100 MOhms	Copper Bare	Red	31.75 mm	1.25 in	Unshielded	50	100 '	30.48 m	105 C	Gray	0.64 mm	0.025 in	Flat Cable	0.66 mm	0.026 in	30 AWG	UL Style 2678	Poly-Vinyl Chloride (PVC)	150 V	38 AWG	7 Strands
