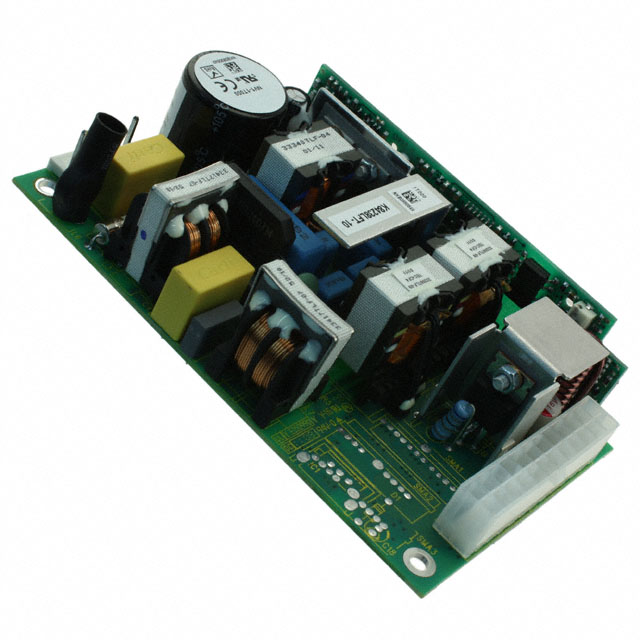

NV1-350 Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, LABORATORY EQUIPMENT & MEDICAL, 3 OUTPUT, 125 W
| Part | Minimum Load Required | Current - Output 2 | Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 2 | Current - Output 1 | Applications | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Power (Watts) | Voltage - Output 1 | Voltage - Isolation | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 3 | Efficiency | Features | Number of Outputs | Approval Agency | Current - Output 3 | Voltage - Output 4 | Current - Output 4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 5 A | Open Frame | Chassis Mount | 70 °C | 0 °C | 15 V | 25 A | ITE (Commercial) Medical | 5 " | 127 mm | 76.2 mm | 31.8 mm | 3 " | 1.25 in | 175 W | 5 V | 4.3 kV | 264 VAC | 90 VAC | -15 V | 90 % | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 3 | CE | ||||
TDK Corporation | 15 A | Open Frame | Chassis Mount | 70 °C | 0 °C | 1.8 V | 25 A | ITE (Commercial) Medical | 5 " | 127 mm | 76.2 mm | 32 mm | 3 " | 1.26 " | 175 W | 5 V | 4.3 kV | 264 VAC | 90 VAC | 12 V | 90 % | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 4 | CE | 5 A | -12 V | 1 A | |
TDK Corporation | 5 A | Open Frame | Chassis Mount | 70 °C | 0 °C | 15 V | 25 A | ITE (Commercial) Medical | 5 " | 127 mm | 76.2 mm | 31.8 mm | 3 " | 1.25 in | 175 W | 5 V | 4.3 kV | 264 VAC | 90 VAC | -15 V | 90 % | Adjustable Output PFC Remote Sense Universal Input | 3 | CE | ||||

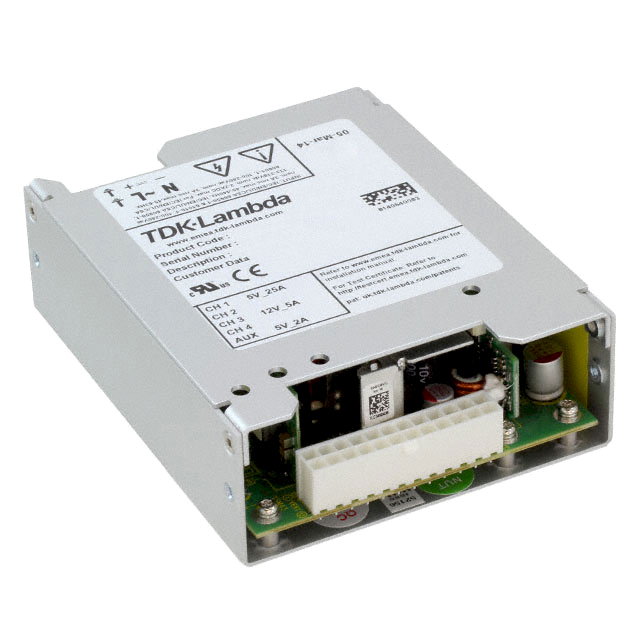

 TDK Corporation | 5 A | Enclosed | Chassis Mount | 70 °C | 0 °C | 15 V | 25 A | ITE (Commercial) Medical | 5 " | 127 mm | 94 mm | 31.8 mm | 3.7 in | 1.25 in | 175 W | 5 V | 4.3 kV | 264 VAC | 90 VAC | -15 V | 90 % | Adjustable Output PFC Remote Sense Universal Input | 3 | CE | ||||
TDK Corporation | 5 A | Enclosed | Chassis Mount | 70 °C | 0 °C | 12 V | 25 A | ITE (Commercial) Medical | 5 " | 127 mm | 94 mm | 31.8 mm | 3.7 in | 1.25 in | 175 W | 5 V | 4.3 kV | 264 VAC | 90 VAC | -12 V | 90 % | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 3 | CE | ||||
 TDK Corporation | 5 A | Enclosed | Chassis Mount | 70 °C | 0 °C | 12 V | 25 A | ITE (Commercial) Medical | 5 " | 127 mm | 94 mm | 31.8 mm | 3.7 in | 1.25 in | 175 W | 5 V | 4.3 kV | 264 VAC | 90 VAC | -12 V | 90 % | Adjustable Output PFC Remote Sense Universal Input | 3 | CE |
