745-011 Series
Manufacturer: EDAC Inc.
Beta
⌘K

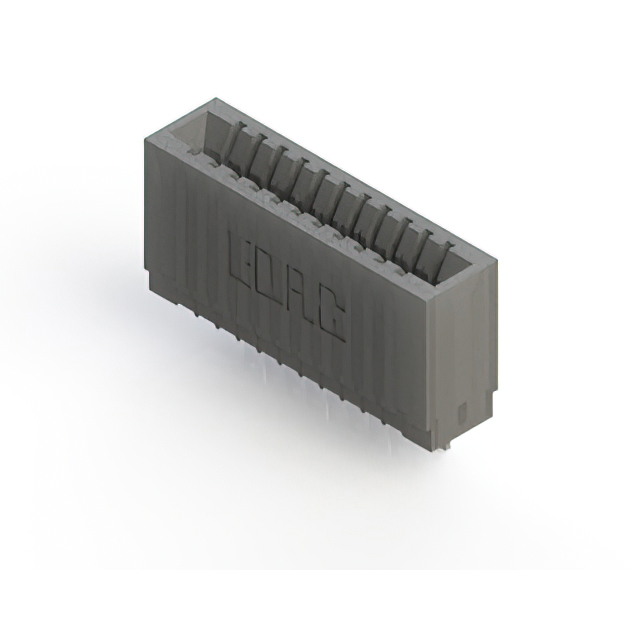

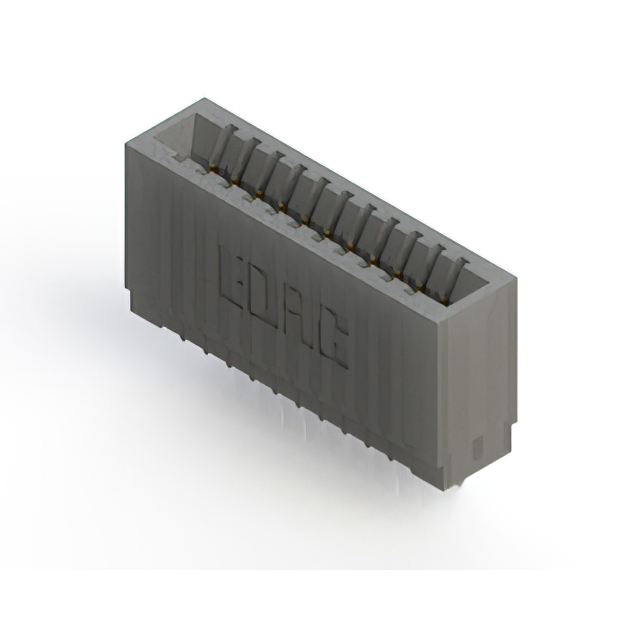

CONN EDGE SINGLE FML 11POS 0.100
| Part | Termination Rows | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Color | Card Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Mounting Type | Contact Material | Contact Type | Number of Positions/Bay/Row | Pitch | Pitch | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Number of Rows | Read Out | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | -40 C | 105 ░C | Black | Non Specified - Single Edge | 30 Áin | 0.76 Ám | Press-Fit | Through Hole | Copper Alloy | Cantilever | 11 | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 11 | 1 | Single | Female |
 EDAC Inc. | 1 | Polyester Thermoplastic | -40 C | 105 ░C | Black | Non Specified - Single Edge | 30 Áin | 0.76 Ám | Press-Fit | Through Hole | Copper Alloy | Cantilever | 11 | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 11 | 1 | Single | Female |
 EDAC Inc. | 1 | Polyester Thermoplastic | -40 C | 105 ░C | Black | Non Specified - Single Edge | 30 Áin | 0.76 Ám | Press-Fit | Through Hole | Copper Alloy | Cantilever | 11 | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 11 | 1 | Single | Female |
 EDAC Inc. | 1 | Polyester Thermoplastic | -40 C | 105 ░C | Black | Non Specified - Single Edge | 30 Áin | 0.76 Ám | Press-Fit | Through Hole | Copper Alloy | Cantilever | 11 | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 11 | 1 | Single | Female |
