ADP2504 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC REG BUCK-BST 2.8V 1A 10LFCSP

Part	Current - Output	Package / Case	Voltage - Input (Max)	Output Type	Frequency - Switching	Mounting Type	Voltage - Input (Min)	Synchronous Rectifier	Function	Voltage - Output (Min/Fixed)	Output Configuration	Package Width	Package Name	Package Length	Number of Outputs	Topology	Operating Temperature (Max)	Operating Temperature (Min)	Contents	Utilized IC / Part	Regulator Topology	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Main Purpose	Supplied Contents	Board Type	Voltage - Output (Max)
Analog Devices Inc./Maxim Integrated ADP2504ACPZ-2.8-R7	1 A	10-VFDFN Exposed Pad CSP	5.5 V	Fixed	2.5 MHz	Surface Mount	2.3 V	Yes	Step-Down Step-Up	2.8 V	Positive	3 mm	10-LFCSP-WD	3 mm	1	Buck-Boost	125 °C	-40 °C

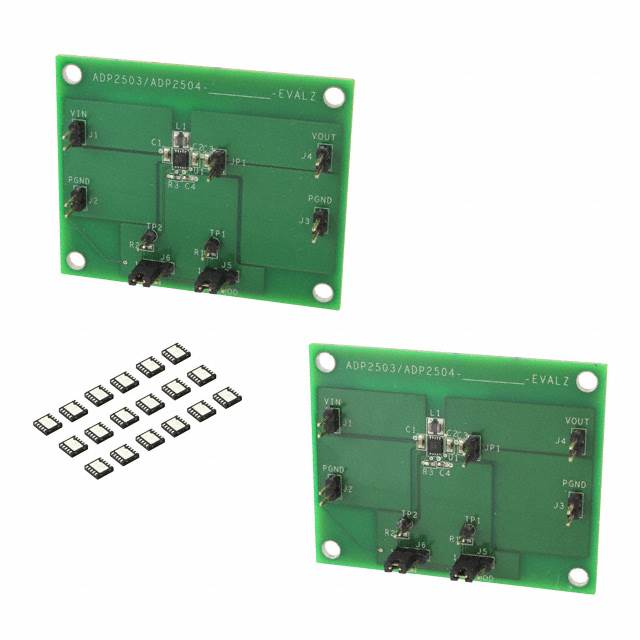

Analog Devices Inc./Maxim Integrated ADP2504CPZ-REDYKIT	1 A				2.5 MHz														Accessories Board	ADP2504	Buck-Boost	2.5 V	5.5 V	DC/DC Step Up or Down
Analog Devices Inc./Maxim Integrated ADP2504ACPZ-5.0-R7	1 A	10-VFDFN Exposed Pad CSP	5.5 V	Fixed	2.5 MHz	Surface Mount	2.3 V	Yes	Step-Down Step-Up	5 V	Positive	3 mm	10-LFCSP-WD	3 mm	1	Buck-Boost	125 °C	-40 °C
Analog Devices Inc./Maxim Integrated ADP2504ACPZ-3.3-R7	1 A	10-VFDFN Exposed Pad CSP	5.5 V	Fixed	2.5 MHz	Surface Mount	2.3 V	Yes	Step-Down Step-Up	3.3 V	Positive	3 mm	10-LFCSP-WD	3 mm	1	Buck-Boost	125 °C	-40 °C
Analog Devices Inc./Maxim Integrated ADP2504-BL1-EVZ																			Unpopulated (Bare) Board	ADP2504	Boost Buck			DC/DC Step Up or Down	Board(s)	Bare (Unpopulated)
Analog Devices Inc./Maxim Integrated ADP2504ACPZ-3.5-R7	1 A	10-VFDFN Exposed Pad CSP	5.5 V	Fixed	2.5 MHz	Surface Mount	2.3 V	Yes	Step-Down Step-Up	3.5 V	Positive	3 mm	10-LFCSP-WD	3 mm	1	Buck-Boost	125 °C	-40 °C
Analog Devices Inc./Maxim Integrated ADP2504ACPZ-R7	1 A	10-VFDFN Exposed Pad CSP	5.5 V	Adjustable	2.5 MHz	Surface Mount	2.3 V	Yes	Step-Down Step-Up	2.8 V	Positive	3 mm	10-LFCSP-WD	3 mm	1	Buck-Boost	125 °C	-40 °C									5.5 V
