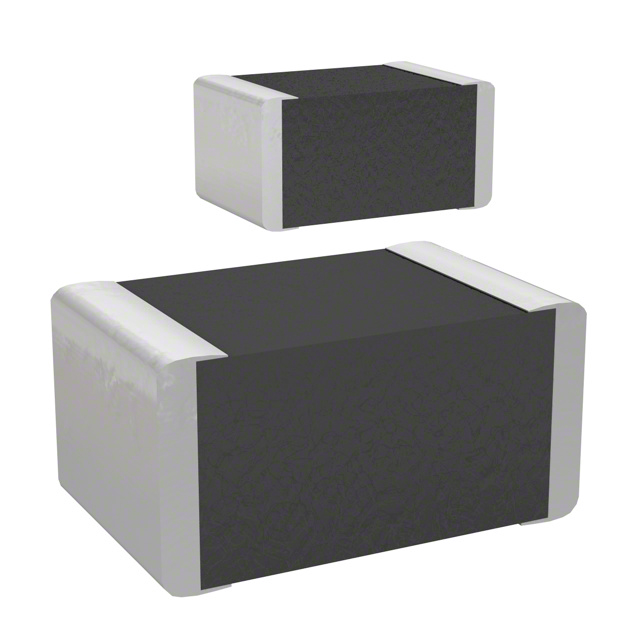

ECP-U1 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 0.015UF 5% 25VDC 0603

Part	Applications	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Package / Case	Package / Case	Termination	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Dielectric Material	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [y]	Height - Seated (Max) [Max]	Features	Voltage Rating - AC
Panasonic Electronic Components ECP-U1E153JB5	General Purpose	25 V	-40 C	105 ░C	Surface Mount	0.7 mm	0.028 "	5 %	1608 Metric	0603	Solder Pads	15000 pF	0.031 in	1.6 mm	0.8 mm	0.063 "	Acrylic Metallized

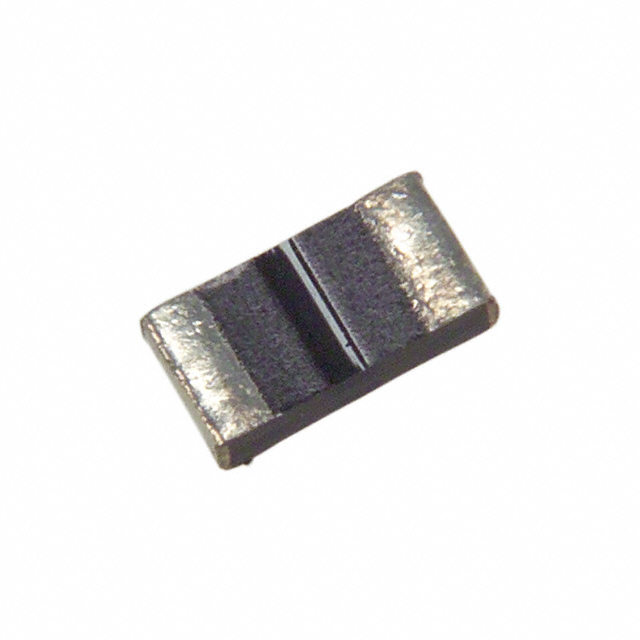

Panasonic Electronic Components ECP-U1E224KB5	General Purpose	25 V	-40 C	105 ░C	Surface Mount			10 %		1206 (3216 Metric)	Solder Pads	0.22 µF	0.063 "	3.2 mm		0.126 "	Acrylic Metallized	0.031 in	0.8 mm	1.6 mm
Panasonic Electronic Components ECP-U1E474KB5	General Purpose	25 V	-40 C	105 ░C	Surface Mount			10 %		1206 (3216 Metric)	Solder Pads	0.47 µF	0.063 "	3.2 mm		0.126 "	Acrylic Metallized	0.039 in		1.6 mm	1 mm
Panasonic Electronic Components ECP-U1E223JB5	General Purpose	25 V	-40 C	105 ░C	Surface Mount	0.7 mm	0.028 "	5 %	1608 Metric	0603	Solder Pads	0.022 µF	0.031 in	1.6 mm	0.8 mm	0.063 "	Acrylic Metallized
Panasonic Electronic Components ECP-U1E105KB5	General Purpose	25 V	-40 C	105 ░C	Surface Mount			10 %		1206 (3216 Metric)	Solder Pads	1 µF	0.063 "	3.2 mm		0.126 "	Acrylic Metallized	0.055 in		1.6 mm	1.4 mm
Panasonic Electronic Components ECP-U1E103JB5	General Purpose	25 V	-40 C	105 ░C	Surface Mount	0.7 mm	0.028 "	5 %	1608 Metric	0603	Solder Pads	10000 pF	0.031 in	1.6 mm	0.8 mm	0.063 "	Acrylic Metallized

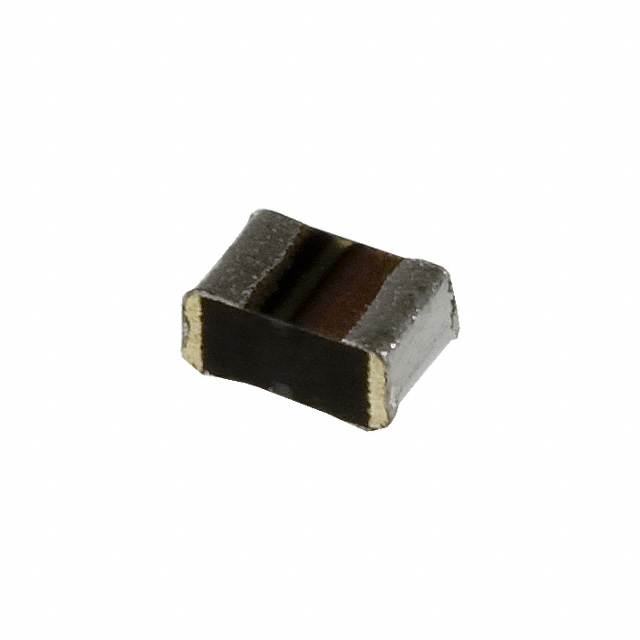

Panasonic Electronic Components ECP-U1C104MA5	EMI RFI Suppression	16 V	-40 C	85 °C	Surface Mount	1.2 mm	0.047 "	20 %		0805	Solder Pads	100000 pF	0.049 "	2 mm		0.079 in	Acrylic Metallized - Stacked			1.25 mm		Low ESR	12 V
Panasonic Electronic Components ECP-U1E473JB5	General Purpose	25 V	-40 C	105 ░C	Surface Mount			5 %		0805	Solder Pads		0.049 "	2 mm		0.079 in	Acrylic Metallized	0.039 in		1.25 mm	1 mm
Panasonic Electronic Components ECP-U1E684KB5	General Purpose	25 V	-40 C	105 ░C	Surface Mount			10 %		1206 (3216 Metric)	Solder Pads	0.68 µF	0.063 "	3.2 mm		0.126 "	Acrylic Metallized	0.055 in		1.6 mm	1.4 mm
Panasonic Electronic Components ECP-U1E104JB5	General Purpose	25 V	-40 C	105 ░C	Surface Mount	1.2 mm	0.047 "	5 %		0805	Solder Pads	100000 pF	0.049 "	2 mm		0.079 in	Acrylic Metallized			1.25 mm
