UT061 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLG HSG FMALE 3POS INLINE

Part	Note	Ingress Protection IP Rating	Ingress Protection Description	Material Flammability Rating	Contact Shape	Housing Color	Orientation	Features	Type	Shielding	Insert Material	Mounting Type	Shell Finish	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Size	Number of Positions	Position Types	Fastening Type	Shell Size - Insert Length	Shell Size - Insert Width	Shell Material	Connector Type	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)

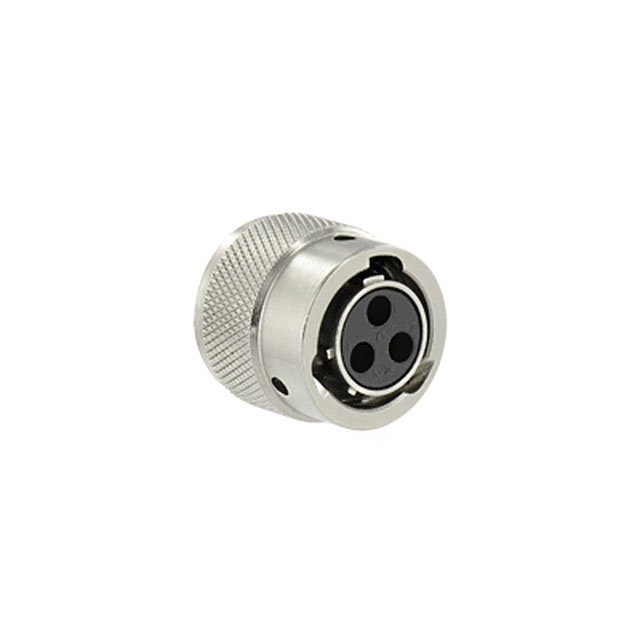

Amphenol Aerospace Operations UT06103SH	Contacts Not Included	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	UL94 V-0	Circular	Silver	N (Normal)	Coupling Nut	For Female Sockets	Shielded	Nylon 6/6 PA66 Polyamide	Free Hanging (In-Line)	Nickel	Crimp	-40 °C	105 °C	16 S	3	PE	Bayonet Lock	10 mm	3 mm	Halogen Free Zinc Alloy	Plug Housing
Amphenol Aerospace Operations UT061412S45N	Contacts Not Included				Circular	Silver	N (Normal)	Coupling Nut	For Female Sockets		Nylon 6/6 PA66 Polyamide	Free Hanging (In-Line)	Nickel	Crimp	-40 °C	105 °C	16 S	12		Threaded	14 mm	12 mm	Aluminum Alloy	Plug Housing

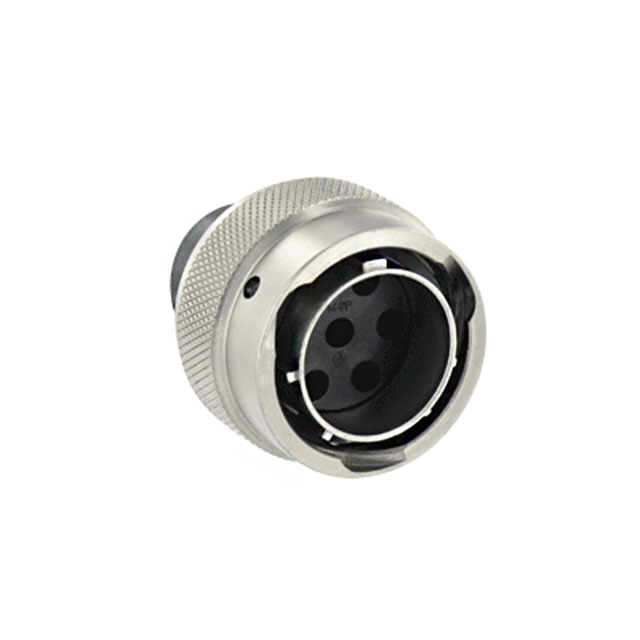

Amphenol Aerospace Operations UT06147PH	Contacts Not Included	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	UL94 V-0	Circular	Silver	N (Normal)	Coupling Nut	For Male Pins	Shielded	Nylon 6/6 PA66 Polyamide	Free Hanging (In-Line)	Nickel	Crimp	-40 °C	105 °C	16 S	7	PE	Bayonet Lock	14 mm	7 mm	Halogen Free Zinc Alloy	Plug Housing

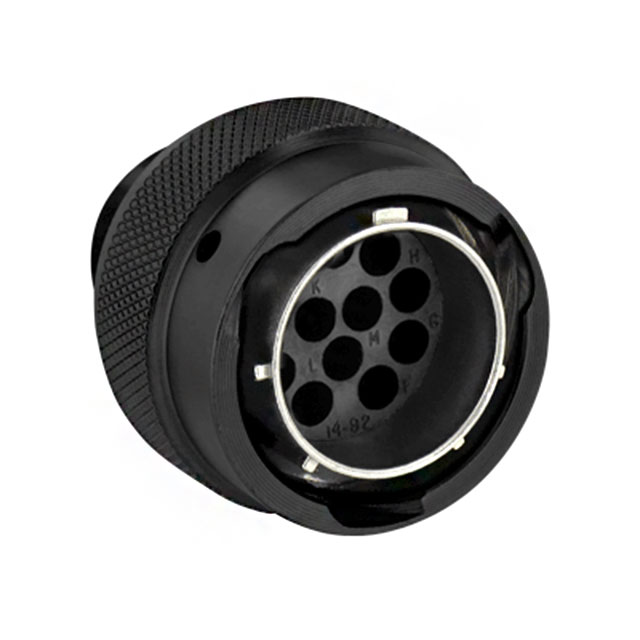

Amphenol Aerospace Operations UT061492PH02	Contacts Not Included	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	UL94 V-0	Circular	Black	N (Normal)	Coupling Nut	For Male Pins	Shielded	Glass Filled Thermoplastic	Free Hanging (In-Line)	Anodized	Crimp	-40 °C	105 °C	16 S	12		Bayonet Lock			Halogen Free Zinc Alloy	Plug Housing	14 S	92
Amphenol Aerospace Operations UT061412SWH	Contacts Not Included	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	UL94 V-0	Circular	Silver	W	Coupling Nut	For Female Sockets	Shielded	Nylon 6/6 PA66 Polyamide	Free Hanging (In-Line)	Nickel	Crimp	-40 °C	105 °C	16 S	12		Bayonet Lock	14 mm	12 mm	Halogen Free Zinc Alloy	Plug Housing
Amphenol Aerospace Operations UT061412PWH	Contacts Not Included	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	UL94 V-0	Circular	Silver	W	Coupling Nut	For Male Pins	Shielded	Nylon 6/6 PA66 Polyamide	Free Hanging (In-Line)	Nickel	Crimp	-40 °C	105 °C	16 S	12		Bayonet Lock	14 mm	12 mm	Halogen Free Zinc Alloy	Plug Housing
Amphenol Aerospace Operations UT06104PT	Contacts Not Included			UL94 V-0	Circular	Silver	N (Normal)	Coupling Nut	For Male Pins	Shielded	Glass Filled Thermoplastic	Free Hanging (In-Line)	Tin	Crimp	-55 °C	125 °C	16 S	4		Bayonet Lock	10 mm	4 mm	Aluminum Alloy	Plug Housing

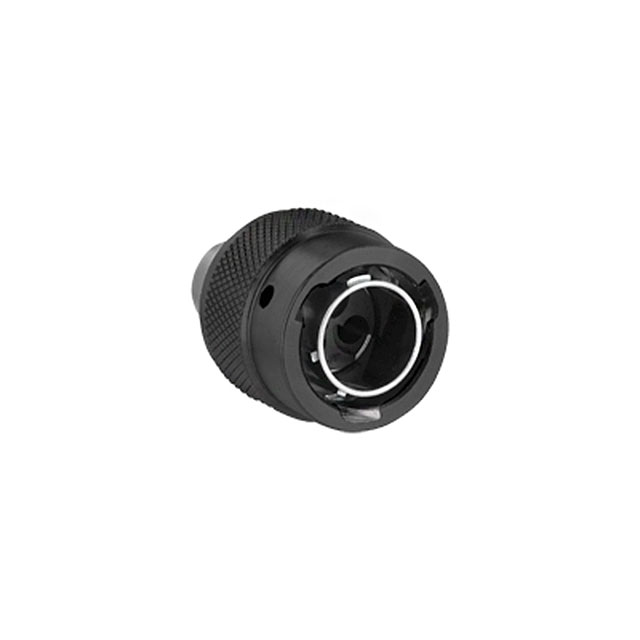

Amphenol Aerospace Operations UT06103PH02	Contacts Not Included	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	UL94 V-0	Circular	Black	N (Normal)	Coupling Nut	For Male Pins	Shielded	Glass Filled Thermoplastic	Free Hanging (In-Line)	Anodized	Crimp	-40 °C	105 °C	16 S	3	PE	Bayonet Lock	10 mm	3 mm	Halogen Free Zinc Alloy	Plug Housing

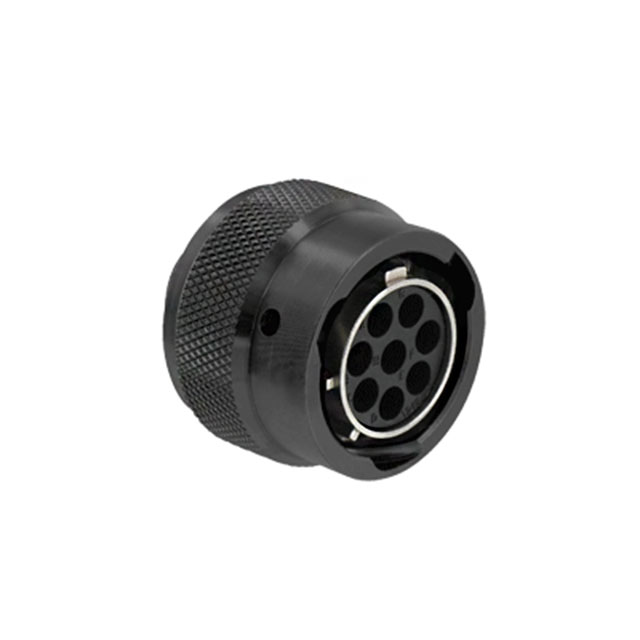

Amphenol Aerospace Operations UT06128SH02	Contacts Not Included	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	UL94 V-0	Circular	Black	N (Normal)	Coupling Nut	For Female Sockets	Shielded	Glass Filled Thermoplastic	Free Hanging (In-Line)	Anodized	Crimp	-40 °C	105 °C	16 S	8		Bayonet Lock	12 mm	8 mm	Halogen Free Zinc Alloy	Plug Housing
Amphenol Aerospace Operations UT061823SZH	Contacts Not Included	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	UL94 V-0	Circular	Silver	Z	Coupling Nut	For Female Sockets	Shielded	Nylon 6/6 PA66 Polyamide	Free Hanging (In-Line)	Nickel	Crimp	-40 °C	105 °C	16 S	23		Bayonet Lock			Halogen Free Zinc Alloy	Plug Housing	18	23
