T495E Series

Manufacturer: KEMET

Catalog

CAPACITOR,100UF,20VDC,10-% TOL,10+% TOL

Part	Voltage - Rated	Lifetime @ Temp.	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Tolerance	Type	ESR (Equivalent Series Resistance)	Manufacturer Size Code	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Qualification	Grade	Ratings
KEMET T495E107K020ATE100	20 V	2000 Hrs	General Purpose	Surface Mount	-55 C	125 °C	100 µF	10 %	Molded	100 mOhms	E	2824	7260 Metric	6 mm	0.236 "	0.287 "	7.3 mm
KEMET T495E107K020ATE060	20 V	2000 Hrs	General Purpose	Surface Mount	-55 C	125 °C	100 µF	10 %	Molded	60 mOhms	E	2824	7260 Metric	6 mm	0.236 "	0.287 "	7.3 mm
KEMET T495E107K020ATE085	20 V	2000 Hrs	General Purpose	Surface Mount	-55 C	125 °C	100 µF	10 %	Molded	85 mOhm	E	2824	7260 Metric	6 mm	0.236 "	0.287 "	7.3 mm
KEMET T495E477K010ATE100	10 V	2000 Hrs	General Purpose	Surface Mount	-55 C	125 °C	470 µF	10 %	Molded	100 mOhms	E	2824	7260 Metric	6 mm	0.236 "	0.287 "	7.3 mm

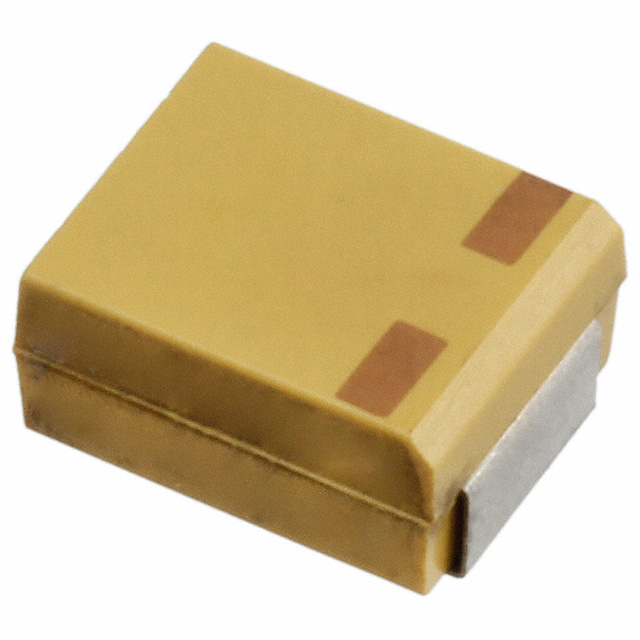

KEMET T495E108M006ATE050	6.3 VDC	2000 Hrs	General Purpose	Surface Mount	-55 C	125 °C	1000 µF	20 %	Molded	50 mOhms	E	2924	7360 Metric	6 mm	0.236 "	0.287 "	7.3 mm
KEMET T495E227K016ATE050	16 V	2000 Hrs	General Purpose	Surface Mount	-55 C	125 °C	220 µF	10 %	Molded	50 mOhms	E	2824	7260 Metric	6 mm	0.236 "	0.287 "	7.3 mm
KEMET T495E337K010ATE060	10 V	2000 Hrs	General Purpose	Surface Mount	-55 C	125 °C	330 µF	10 %	Molded	60 mOhms	E	2824	7260 Metric	6 mm	0.236 "	0.287 "	7.3 mm
KEMET T495E157K020ATE080	20 V	2000 Hrs	General Purpose	Surface Mount	-55 C	125 °C	150 µF	10 %	Molded	80 mOhm	E	2824	7260 Metric	6 mm	0.236 "	0.287 "	7.3 mm
KEMET T495E108M006ATE040	6.3 VDC	2000 Hrs	General Purpose	Surface Mount	-55 C	125 °C	1000 µF	20 %	Molded	40 mOhm	E	2924	7360 Metric	6 mm	0.236 "	0.287 "	7.3 mm
KEMET T495E107K025AHE100	25 VDC	2000 Hrs	Automotive	Surface Mount	-55 C	125 °C	100 µF	10 %	Molded	100 mOhm	E	2924 (7361 Metric)		6 mm	0.236 "	0.287 "	7.3 mm	AEC-Q200	Automotive	AEC-Q200
