02S119 Series
Manufacturer: Rosenberger
Beta
⌘K
RF ADAPTERS - BETWEEN SERIES CALIBRATION ADAPTOR
| Part | Type | Specifications | For Use With/Related Products | Accessory Type | Dielectric Material | Mating Cycles | Center Contact Material | Body Finish | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Convert From (Adapter End) | Convert From (Adapter End) | Frequency - Max [Max] | Center Gender | Impedance | Style | Conversion Type | Fastening Type | Adapter Series | Adapter Type | Mounting Type | Center Contact Plating | Features | Convert To (Adapter End) | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Specialized | 2.92 Plug SMP Plug | Network Analyzer | Calibration Adapter | ||||||||||||||||||||||

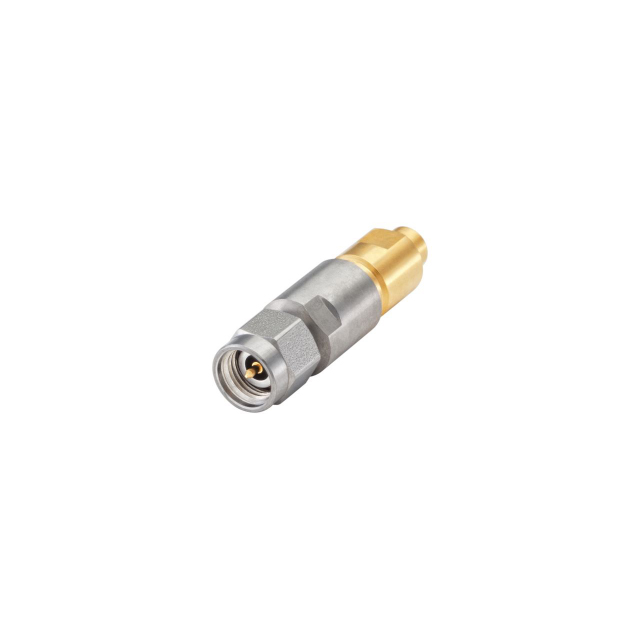

 Rosenberger | Polyetheretherketone (PEEK) | 500 | Beryllium Copper | Gold | Beryllium Copper | 20 °C | 26 °C | Plug Male Pin | 2.92 mm | 40 GHz | Male to Male | 50 Ohms | Straight | Between Series | Snap-On Threaded | SMP to RPC-2.92 | Plug to Plug | Free Hanging (In-Line) | Gold | Limited Detent | SMP Plug Female Socket | |||||

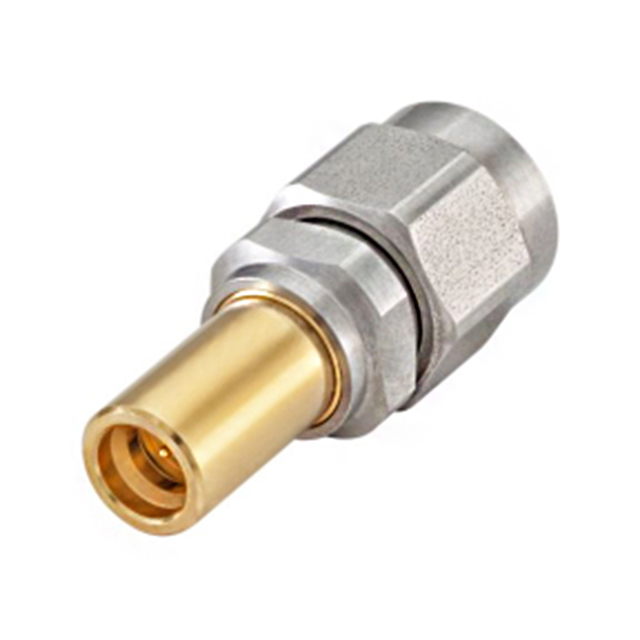

 Rosenberger | Polyetheretherketone (PEEK) | 500 | Beryllium Copper | Gold | Beryllium Copper | -40 C | 85 °C | Plug Male Pin | 2.92 mm | 40 GHz | 50 Ohms | Straight | Between Series | Snap-On Threaded | SMP to RPC-2.92 | Plug to Jack | Free Hanging (In-Line) | Gold | SMP Jack Female Socket | 0.32 dB |
