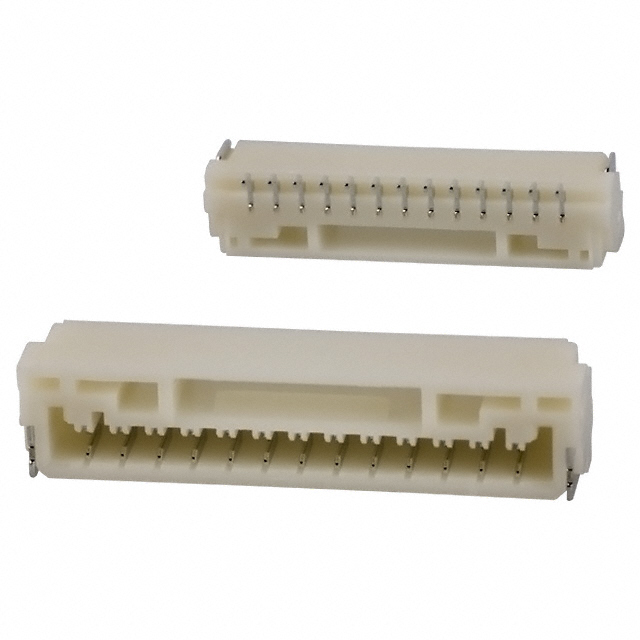

SM13B-GH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 13POS 1.25MM
| Part | Style | Contact Finish - Post | Contact Material | Features | Contact Shape | Termination | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Connector Type | Insulation Material | Insulation Color | Material Flammability Rating | Contact Type | Mounting Type | Number of Positions | Shrouding | Number of Rows | Number of Positions Loaded | Fastening Type | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Board to Cable/Wire | Tin | Phosphor Bronze | Solder Retention | Rectangular | Solder | 4.25 mm | 0.167 " | 85 °C | -25 °C | 0.049 in | 1.25 mm | Header | Nylon 9T Polyamide (PA9T) | Natural | UL94 V-0 | Outer Shroud Contact | Right Angle Surface Mount | 13 | Shrouded - 4 Wall | 1 | All | Locking Ramp | 50 V |
