YB215C Series
Manufacturer: NKK Switches
Beta
⌘K
PUSHBUTTON SWITCHES ON(ON)SEALED BLK BZL 12V AMB LED YLW/WHT
| Part | Electrical Life | Mechanical Life | Features | Actuator Type | Mounting Type | Illumination Voltage (Nominal) | Illumination Type, Color | Switch Function | Ingress Protection | Termination Style | Current Rating (Amps) | Actuator Marking | Voltage Rating - AC | Color - Actuator/Cap | Voltage Rating - DC | Circuit | Type | Panel Cutout Dimensions [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 100000 Cycles | 1000000 Cycles | Tactile Feedback | Button Flush Round | Panel Mount Front | 12 VDC | Amber LED | On-Mom | IP65 - Dust Tight Water Resistant | Solder Quick Connect - 0.110" (2.8mm) | 3 A | No Marking | 125 V | Yellow | 30 V | SPDT | Illuminated Standard | 22 mm | 50 °C | -25 °C | ||
 NKK Switches | 100000 Cycles | 1000000 Cycles | Tactile Feedback | Button Flush Round | Panel Mount Front | On-Mom | IP65 - Dust Tight Water Resistant | Solder Quick Connect - 0.110" (2.8mm) | 3 A | No Marking | 125 V | Yellow | 30 V | SPDT | Standard | 22 mm | 70 °C | -25 °C | ||||

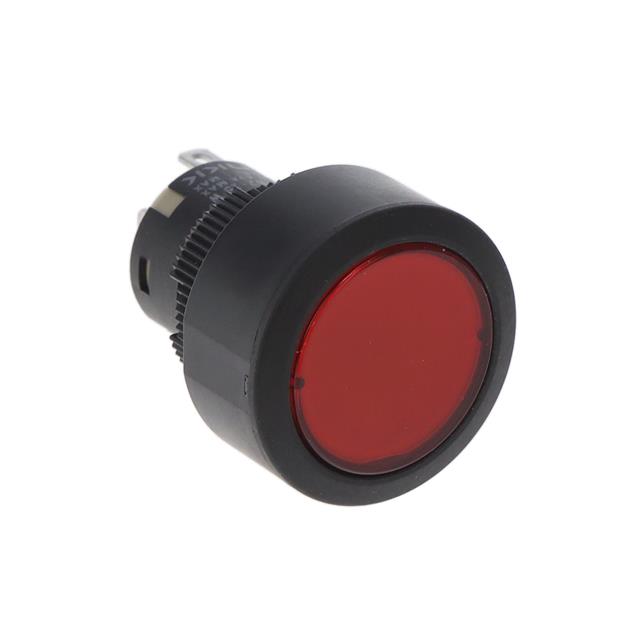

NKK Switches | 100000 Cycles | 1000000 Cycles | Tactile Feedback | Button Flush Round | Panel Mount Front | 1.9 VDC | LED Red | On-Mom | IP65 - Dust Tight Water Resistant | Solder Quick Connect - 0.110" (2.8mm) | 3 A | No Marking | 125 V | Clear | 30 V | SPDT | Illuminated Standard | 22 mm | 50 °C | -25 °C | ||
 NKK Switches | 100000 Cycles | 1000000 Cycles | Tactile Feedback | Button Flush Round | Panel Mount Front | On-Mom | IP65 - Dust Tight Water Resistant | Solder Quick Connect - 0.110" (2.8mm) | 0.4 VA | No Marking | 28 V | Red | 28 V | SPDT | Standard | 22 mm | 70 °C | -25 °C | ||||
NKK Switches | 100000 Cycles | 1000000 Cycles | Tactile Feedback | Button Flush Round | Panel Mount Front | 1.9 VDC | LED Red | On-Mom | IP65 - Dust Tight Water Resistant | Solder Quick Connect - 0.110" (2.8mm) | 3 A | No Marking | 125 V | Unbrushed Chrome White | 30 V | SPDT | Illuminated Standard | 22 mm | 50 °C | -25 °C | ||
NKK Switches | 100000 Cycles | 1000000 Cycles | Tactile Feedback | Button Flush Round | Panel Mount Front | 24 V | Green LED | On-Mom | IP65 - Dust Tight Water Resistant | Solder Quick Connect - 0.110" (2.8mm) | 0.4 VA | No Marking | 28 V | Clear | 28 V | SPDT | Illuminated Standard | 22 mm | 50 °C | -25 °C | ||
NKK Switches | 100000 Cycles | 1000000 Cycles | Tactile Feedback | Plunger for Cap | Panel Mount Front | On-Mom | IP65 - Dust Tight Water Resistant | Solder Quick Connect - 0.110" (2.8mm) | 0.4 VA | No Marking | 28 V | 28 V | SPDT | Standard | 70 °C | -25 °C | 21 mm | 21 mm | ||||

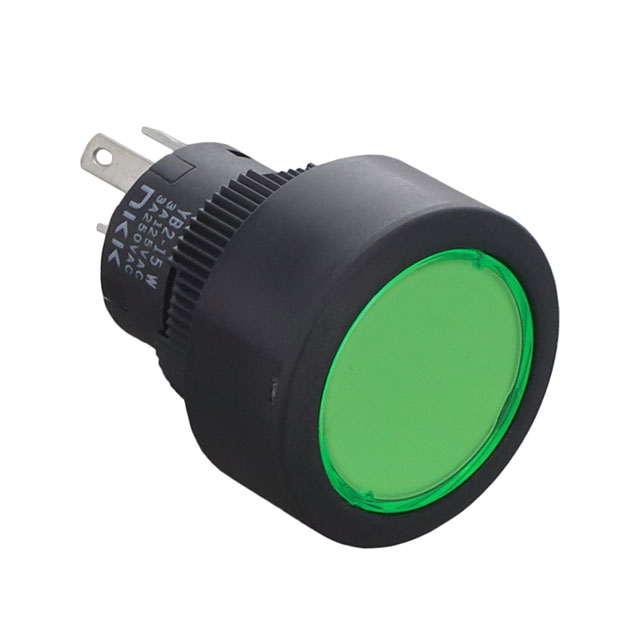

NKK Switches | 100000 Cycles | 1000000 Cycles | Tactile Feedback | Panel Mount Front | 5 VDC | Green LED | On-Mom | IP65 - Dust Tight Water Resistant | Solder Quick Connect - 0.110" (2.8mm) | 0.4 VA | No Marking | 28 V | Green | 28 V | SPDT | Illuminated Standard | 50 °C | -25 °C | 21 mm | 21 mm | ||
 NKK Switches | 100000 Cycles | 1000000 Cycles | Tactile Feedback | Button Flush Round | Panel Mount Front | 12 VDC | Green LED | On-Mom | IP65 - Dust Tight Water Resistant | Solder Quick Connect - 0.110" (2.8mm) | 3 A | No Marking | 125 V | Green | 30 V | SPDT | Illuminated Standard | 22 mm | 50 °C | -25 °C | ||
NKK Switches | 100000 Cycles | 1000000 Cycles | Tactile Feedback | Panel Mount Front | On-Mom | IP65 - Dust Tight Water Resistant | Solder Quick Connect - 0.110" (2.8mm) | 3 A | No Marking | 125 V | Unbrushed Chrome White | 30 V | SPDT | Standard | 70 °C | -25 °C | 21 mm | 21 mm |
