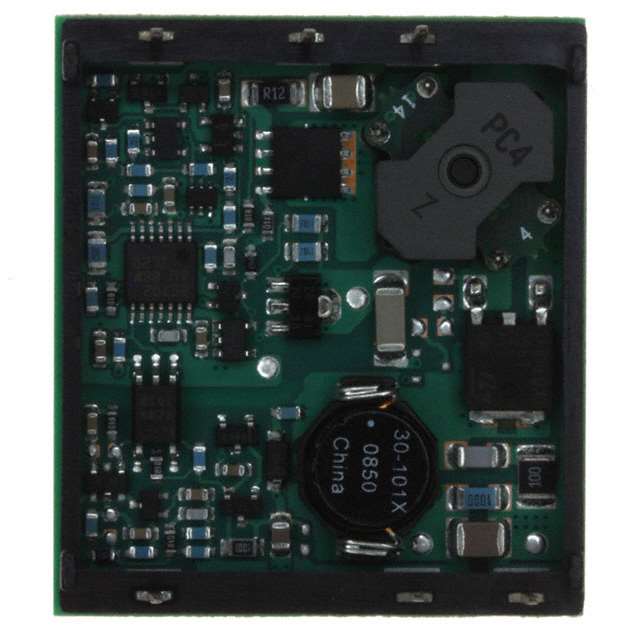

PT4121 Series
Manufacturer: Texas Instruments
Beta
⌘K
DC DC CONVERTER 3.3V 20W
| Part | Power (Watts) | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Voltage - Input (Min) [Min] | Mounting Type | Voltage - Isolation | Type | Efficiency | Applications | Number of Outputs | Voltage - Output 1 | Voltage - Input (Max) [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 20 W | 5 A | 85 °C | -40 °C | 6-DIP Module | 36 V | Through Hole | 1.5 kV | Isolated Module | 78 % | ITE (Commercial) | 1 | 3.3 V | 75 V | 42.4 mm | 0.33 in | 8.4 mm | 1.67 in | 37.6 mm | 1.48 in |
