1772 Series

Catalog

CABLE 4COND 25AWG BROWN SHLD

Part	Shield Material	Shield Coverage	Voltage	Shield Type	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Jacket (Insulation) Material	Number of Conductors	Usage	Conductor Insulation	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]
ALPHA WIRE 1772 BR001	Copper Tinned	95 %	600 V	Braid	Brown	-20 ░C	60 °C	0.239 "	6.07 mm	25 AWG	304.8 m	1000 ft	40	40 AWG	Multi-Conductor	Poly-Vinyl Chloride (PVC)	4	Communication Control	Poly-Vinyl Chloride (PVC)	Copper Bare	0.044 in	1.118 mm
ALPHA WIRE 1772 SL005	Copper Tinned	95 %	600 V	Braid	Slate	-20 ░C	60 °C	0.239 "	6.07 mm	25 AWG			40	40 AWG	Multi-Conductor	Poly-Vinyl Chloride (PVC)	4	Communication Control	Poly-Vinyl Chloride (PVC)	Copper Bare	0.044 in	1.118 mm	100 ft	30.5 m

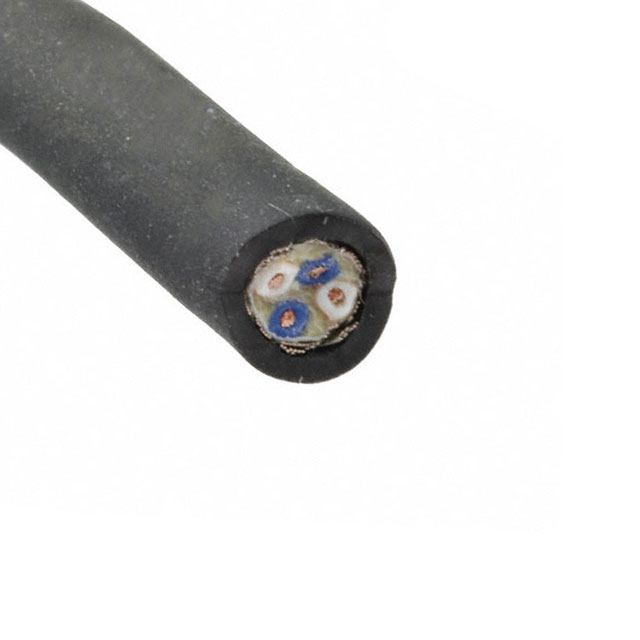

ALPHA WIRE 1772 BK001	Copper Tinned	95 %	600 V	Braid	Black	-20 ░C	60 °C	0.239 "	6.07 mm	25 AWG	304.8 m	1000 ft	40	40 AWG	Multi-Conductor	Poly-Vinyl Chloride (PVC)	4	Communication Control	Poly-Vinyl Chloride (PVC)	Copper Bare	0.044 in	1.118 mm

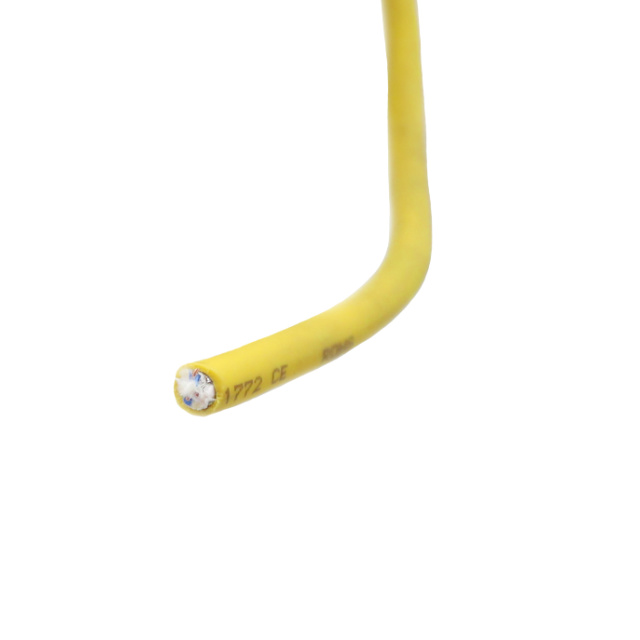

ALPHA WIRE 1772 YL005	Copper Tinned	95 %	600 V	Braid	Yellow	-20 ░C	60 °C	0.239 "	6.07 mm	25 AWG			40	40 AWG	Multi-Conductor	Poly-Vinyl Chloride (PVC)	4	Communication Control	Poly-Vinyl Chloride (PVC)	Copper Bare	0.044 in	1.118 mm	100 ft	30.5 m
ALPHA WIRE 1772 SL001	Copper Tinned	95 %	600 V	Braid	Slate	-20 ░C	60 °C	0.239 "	6.07 mm	25 AWG	304.8 m	1000 ft	40	40 AWG	Multi-Conductor	Poly-Vinyl Chloride (PVC)	4	Communication Control	Poly-Vinyl Chloride (PVC)	Copper Bare	0.044 in	1.118 mm
