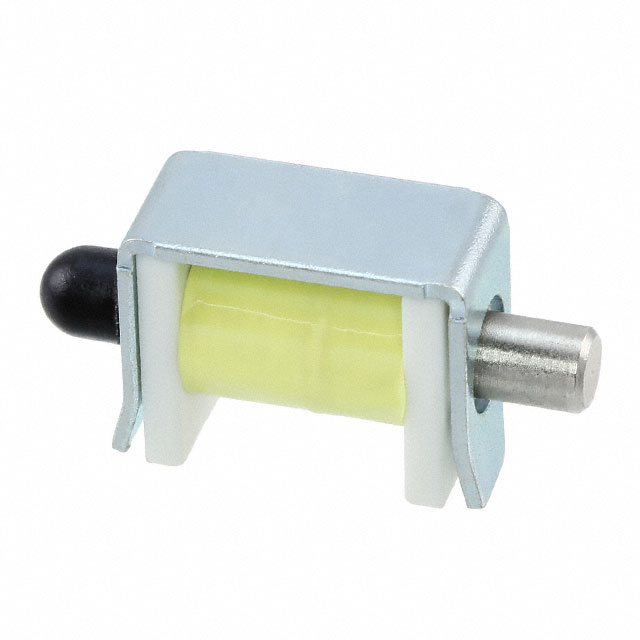

DSOS-0416 Series
Manufacturer: Delta Electronics
Beta
⌘K
DC SOLENOID, OPEN FRAME PUSH TYP
| Part | Weight | Weight | Duty Cycle | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Technology | Type | Power (Watts) | DC Resistance (DCR) | Voltage - Rated | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Shaft Detail | Stroke Length | Stroke Length | Mounting Type | Stroke Length [x] | Stroke Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 0.013 lb | 5.9 g | Intermittent | 0.165 in | 4.19 mm | Electromechanical | Open Frame (Push) | 3.6 W | 40 Ohm | 12 VDC | 15.8 mm | 0.304 in | 0.622 in | 7.72 mm | 0.393 in | 9.98 mm | Round | 1.52 mm | 0.06 in | Chassis Mount | ||
Delta Electronics | 0.013 lb | 5.9 g | Intermittent | 0.165 in | 4.19 mm | Electromechanical | Open Frame (Push) | 302 W | 138 Ohm | 204 VDC | Round | Chassis Mount | 0.125 in | 3.18 mm | ||||||||
Delta Electronics | 0.013 lb | 5.9 g | Intermittent | 0.165 in | 4.19 mm | Electromechanical | Open Frame (Push) | 3.6 W | 160 Ohm | 24 VDC | 15.8 mm | 0.304 in | 0.622 in | 7.72 mm | 0.393 in | 9.98 mm | Round | 1.52 mm | 0.06 in | Chassis Mount |
