M2024S3 Series

Catalog

SWITCH TOGGLE SP3T 6A 125V

Part	Electrical Life	Actuator Material	Mounting Type	Switch Function	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Panel Cutout Dimensions [diameter]	Bushing Thread	Voltage Rating - DC	Termination Style	Voltage Rating - AC	Illumination	Current Rating (Amps)	Actuator Type	Features	Bushing Thread
NKK Switches M2024S3S1W06	25000 Steps	Brass Chrome Plated	Panel Mount	On-On-On	6.5 mm	85 °C	-30 ░C	SP3T	6.5 mm	1/4-40	30 V	Wire Wrap	125 V	Non-Illuminated	3 A 6 A	Standard Round	Jumper needed to achieve triple throw

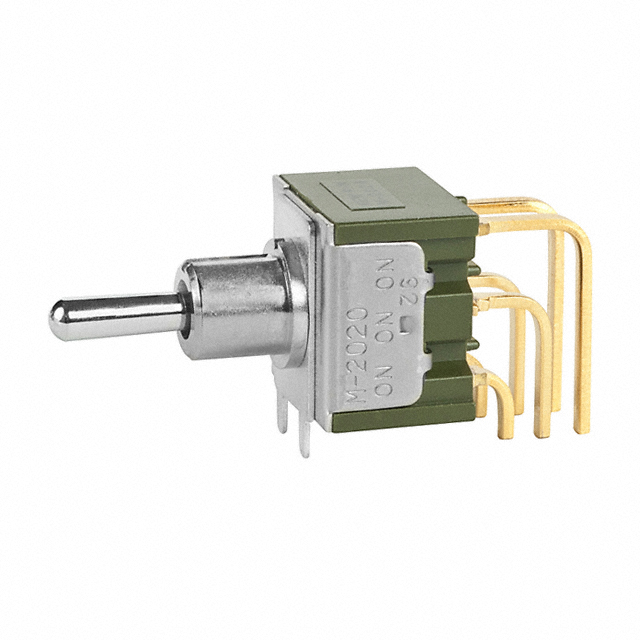

NKK Switches M2024S3A2G45	50000 Cycles	Brass Chrome Plated	Right Angle Through Hole Vertical	On-On-On	8.28 mm	85 °C	-30 ░C	SP3T	6.5 mm	Unthreaded	28 V	PC Pin	28 V	Non-Illuminated	0.4 VA	Standard Round	Jumper needed to achieve triple throw
NKK Switches M2024S3S1W03	25000 Steps	Brass Chrome Plated	Panel Mount	On-On-On	6.5 mm	85 °C	-30 ░C	SP3T	6.5 mm	1/4-40	30 V	PC Pin	125 V	Non-Illuminated	3 A 6 A	Standard Round	Jumper needed to achieve triple throw
NKK Switches M2024S3S4W01	25000 Steps	Brass Chrome Plated	Panel Mount	On-On-On	6.5 mm	85 °C	-30 ░C	SP3T	6.5 mm	M6	30 V	Solder Lug	125 V	Non-Illuminated	3 A 6 A	Standard Round	Jumper needed to achieve triple throw	0.75
