ALC80F Series

Manufacturer: KEMET

Catalog

CAP ALUM 200UF 20% 350V SNAP TH

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	ESR (Equivalent Series Resistance)	Impedance	Voltage - Rated	Lifetime @ Temp.	Package / Case	Applications	Size / Dimension	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Polarization	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Capacitance	Height - Seated (Max)	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ALC80F201CB350	1.26 in	32 mm	3.85 A	1.34 A	675 mOhm	352 mOhms	350 V	7000 Hrs	Radial Can - Snap-In - 3 Lead	General Purpose	30 mm	1.181 "	0.394 in	10 mm	Polar	20 %	-40 C	105 ░C	Through Hole
KEMET ALC80F301DC400	1.457 in		5.34 A	1.93 A		210 mOhms	400 V	8000 Hrs	Radial Can - Snap-In - 3 Lead	General Purpose		1.378 "	0.394 in	10 mm	Polar	20 %	-40 C	105 ░C	Through Hole	300 µF	37 mm	35 mm

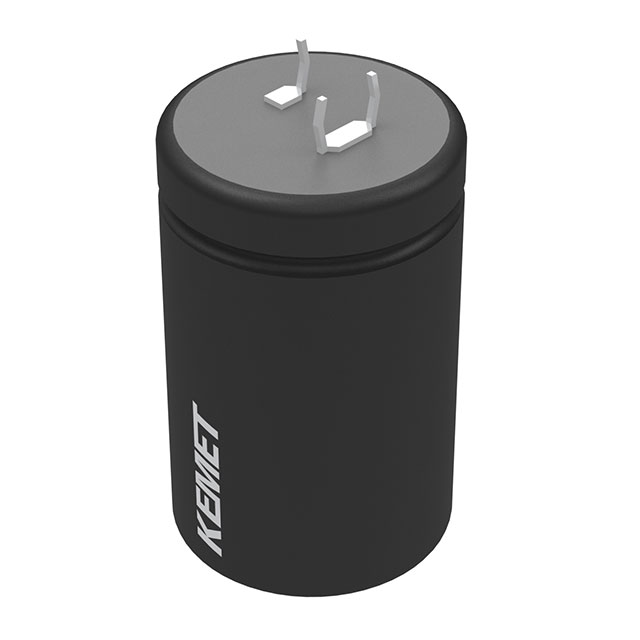

KEMET ALC80F201BD350	1.654 in	42 mm	3.45 A	1.27 A	683 mOhm	358 mOhms	350 V	6000 Hrs	Radial Can - Snap-In - 3 Lead	General Purpose		0.984 "	0.394 in	10 mm	Polar	20 %	-40 C	105 ░C	Through Hole			25 mm
KEMET ALC80F471EF500				3.04 A	372 mOhm	259 mOhms	500 V	9000 Hrs	Radial Can - Snap-In - 3 Lead	General Purpose		1.575 in	0.394 in	10 mm	Polar	20 %	-40 C	105 ░C	Through Hole	470 µF		40 mm	2.047 in	52 mm
KEMET ALC80F161BD400	1.654 in	42 mm	3.38 A	1.18 A	761 mOhm	390 mOhms	400 V	6000 Hrs	Radial Can - Snap-In - 3 Lead	General Purpose		0.984 "	0.394 in	10 mm	Polar	20 %	-40 C	105 ░C	Through Hole	160 µF		25 mm
KEMET ALC80F133DD040	1.654 in	42 mm	9.76 A	7.44 A	43 mOhm	35 mOhms	40 V	8000 Hrs	Radial Can - Snap-In - 3 Lead	General Purpose		1.378 "	0.394 in	10 mm	Polar	20 %	-40 C	105 ░C	Through Hole	13000 µF		35 mm
KEMET ALC80F112EH350			9.52 A	4.26 A	131.8 mOhm	71 mOhms	350 V	9000 Hrs	Radial Can - Snap-In - 3 Lead	General Purpose		1.575 in	0.394 in	10 mm	Polar	20 %	-40 C	105 ░C	Through Hole	1100 µF	62 mm	40 mm	2.441 in
KEMET ALC80F103CD040	1.654 in	42 mm	9.23 A	6.51 A	51 mOhm	41 mOhms	40 V	7000 Hrs	Radial Can - Snap-In - 3 Lead	General Purpose	30 mm	1.181 "	0.394 in	10 mm	Polar	20 %	-40 C	105 ░C	Through Hole	10000 µF
KEMET ALC80F822EH100			10.59 A	8.65 A	43 mOhm	36 mOhms	100 V	9000 Hrs	Radial Can - Snap-In - 3 Lead	General Purpose		1.575 in	0.394 in	10 mm	Polar	20 %	-40 C	105 ░C	Through Hole		62 mm	40 mm	2.441 in
KEMET ALC80F203DF040			11.36 A	9.1 A	30 mOhm	25 mOhms	40 V	8000 Hrs	Radial Can - Snap-In - 3 Lead	General Purpose		1.378 "	0.394 in	10 mm	Polar	20 %	-40 C	105 ░C	Through Hole	20000 µF		35 mm	2.047 in	52 mm
