FODM1008 Series

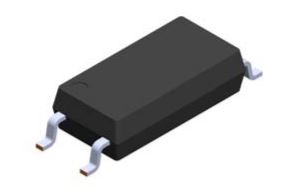

Single Channel, DC Sensing Input, Phototransistor Optocoupler In Stretched Body SOP 4-Pin

Catalog

Single Channel, DC Sensing Input, Phototransistor Optocoupler In Stretched Body SOP 4-Pin

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Supplier Device Package	Output Type	Current - Output / Channel	Current Transfer Ratio (Min) [Min]	Voltage - Output (Max) [Max]	Package / Case	Voltage - Forward (Vf) (Typ)	Input Type	Number of Channels	Current - DC Forward (If) (Max)	Vce Saturation (Max) [Max]	Current Transfer Ratio (Max)
ON Semiconductor FODM1008	Surface Mount	-40 °C	110 °C	5.7 µs	8.5 µs	4-SOP	1.81 mOhm	50 mA	130 %	70 V	4-SMD Gull Wing	1.4 V	DC	1	50 mA	300 mV	260 %
ON Semiconductor FODM1008R2	Surface Mount	-40 °C	110 °C	5.7 µs	8.5 µs	4-SOP	1.81 mOhm	50 mA	130 %	70 V	4-SMD Gull Wing	1.4 V	DC	1	50 mA	300 mV	260 %
ON Semiconductor FODM1008R4V	Surface Mount	-40 °C	110 °C	5.7 µs	8.5 µs	4-SOP	1.81 mOhm	50 mA	130 %	70 V	4-SMD Gull Wing	1.4 V	DC	1	50 mA	300 mV	260 %
ON Semiconductor FODM1008R2	Surface Mount	-40 °C	110 °C	5.7 µs	8.5 µs	4-SOP	1.81 mOhm	50 mA	130 %	70 V	4-SMD Gull Wing	1.4 V	DC	1	50 mA	300 mV	260 %

Catalog

Single Channel, DC Sensing Input, Phototransistor Optocoupler In Stretched Body SOP 4-Pin

Key Features

• " ≥ 8 mm Creepage and Clearance Distance, and ≥ 0.4 mm Insulation Distance to Achieve Reliable and High Voltage Insulation

• Safety and Regulatory Approvals

• UL1577, 5,000 VACRMS for 1 min.

• DIN_EN/IEC60747-5-5, 890 V_Peak Working Voltage

• High Breakdown Collector to Emitter Voltage, BVCEO = 70 V minimum

• Extended Industrial Temperate Range, -40 to 110°C

• Current Transfer Ratio at IF = 5 mA, VCE = 5 V, TA = 25ºC

• FODM1007: 80 to 160%

• FODM1008: 130 to 260%

• FODM1009: 200 to 400%"

Description

The FODM100x Series, single channel, DC sensing input, optocoupler consists of one gallium arsenide (GaAs) infrared light emitting diode optically coupled to one phototransistor, in a stretched body SOP 4-pin package. The input-output isolation voltage, VISO, is rated at 5,000 VACRMS
