2823132 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

6P,2MM,BRK HDR,DRRT,2.8,0.1AU,TB

Part	Fastening Type	Current Rating (Amps)	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Contact Finish - Post	Number of Positions Loaded	Voltage Rating	Number of Rows	Contact Finish - Mating	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [custom]	Insulation Height [custom]	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Termination	Contact Material	Connector Type	Shrouding	Contact Shape	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
TE Connectivity Raychem Cable Protection 2823132-6	Push-Pull	2 A	6	0.079 in	2 mm	Black	Tin	All	125 VAC	2	Gold	Thermoplastic	0.11 in	2.8 mm	Male Pin	-40 °C	105 ░C	0.157 in	4 mm	4 mm	0.157 in	UL94 V-0	0.3 µm	12 µin	0.079 in	2 mm	Solder	Phosphor Bronze	Breakaway Header	Unshrouded	Square	Through Hole Right Angle	3.94 µin	0.1 µm
TE Connectivity Raychem Cable Protection 5-2823132-0	Push-Pull	2 A	50	0.079 in	2 mm	Black	Tin	All	125 VAC	2	Gold	Thermoplastic	0.11 in	2.8 mm	Male Pin	-40 °C	105 ░C	0.157 in	4 mm	4 mm	0.157 in	UL94 V-0	0.3 µm	12 µin	0.079 in	2 mm	Solder	Phosphor Bronze	Breakaway Header	Unshrouded	Square	Through Hole Right Angle	3.94 µin	0.1 µm
TE Connectivity Raychem Cable Protection 1-2823132-4	Push-Pull	2 A	14	0.079 in	2 mm	Black	Tin	All	125 VAC	2	Gold	Thermoplastic	0.11 in	2.8 mm	Male Pin	-40 °C	125 °C	0.157 in	4 mm	4 mm	0.157 in	UL94 V-0	0.3 µm	12 µin	0.079 in	2 mm	Solder	Phosphor Bronze	Breakaway Header	Unshrouded	Square	Through Hole Right Angle	3.94 µin	0.1 µm

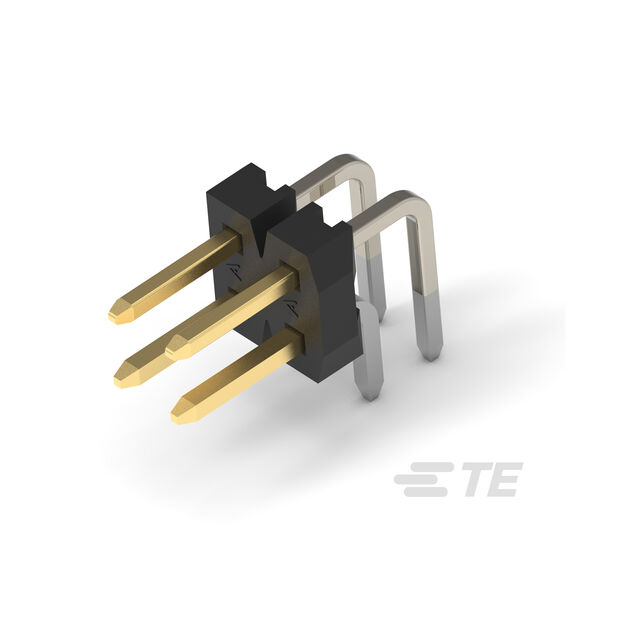

TE Connectivity Raychem Cable Protection 2823132-4	Push-Pull	2 A	4	0.079 in	2 mm	Black	Tin	All	125 VAC	2	Gold	Thermoplastic	0.11 in	2.8 mm	Male Pin	-40 °C	105 ░C	0.157 in	4 mm	4 mm	0.157 in	UL94 V-0	0.3 µm	12 µin	0.079 in	2 mm	Solder	Phosphor Bronze	Breakaway Header	Unshrouded	Square	Through Hole Right Angle	3.94 µin	0.1 µm
TE Connectivity Raychem Cable Protection 1-2823132-0	Push-Pull	2 A	10	0.079 in	2 mm	Black	Tin	All	125 VAC	2	Gold	Thermoplastic	0.11 in	2.8 mm	Male Pin	-40 °C	105 ░C	0.157 in	4 mm	4 mm	0.157 in	UL94 V-0	0.3 µm	12 µin	0.079 in	2 mm	Solder	Phosphor Bronze	Breakaway Header	Unshrouded	Square	Through Hole Right Angle	3.94 µin	0.1 µm

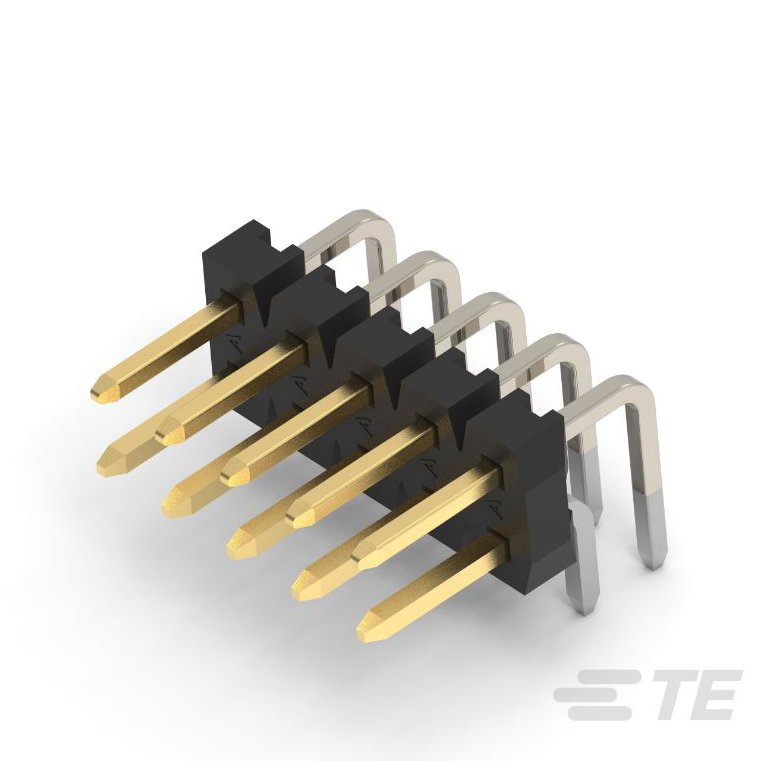

TE Connectivity Raychem Cable Protection 1-2823132-2	Push-Pull	2 A	12	0.079 in	2 mm	Black	Tin	All	125 VAC	2	Gold	Thermoplastic	0.11 in	2.8 mm	Male Pin	-40 °C	125 °C	0.157 in	4 mm	4 mm	0.157 in	UL94 V-0	0.3 µm	12 µin	0.079 in	2 mm	Solder	Phosphor Bronze	Breakaway Header	Unshrouded	Square	Through Hole Right Angle	3.94 µin	0.1 µm
TE Connectivity Raychem Cable Protection 2823132-8	Push-Pull	2 A	8	0.079 in	2 mm	Black	Tin	All	125 VAC	2	Gold	Thermoplastic	0.11 in	2.8 mm	Male Pin	-40 °C	105 ░C	0.157 in	4 mm	4 mm	0.157 in	UL94 V-0	0.3 µm	12 µin	0.079 in	2 mm	Solder	Phosphor Bronze	Breakaway Header	Unshrouded	Square	Through Hole Right Angle	3.94 µin	0.1 µm
