NARG1 Series
Manufacturer: Stanley Electric Co
Beta
⌘K

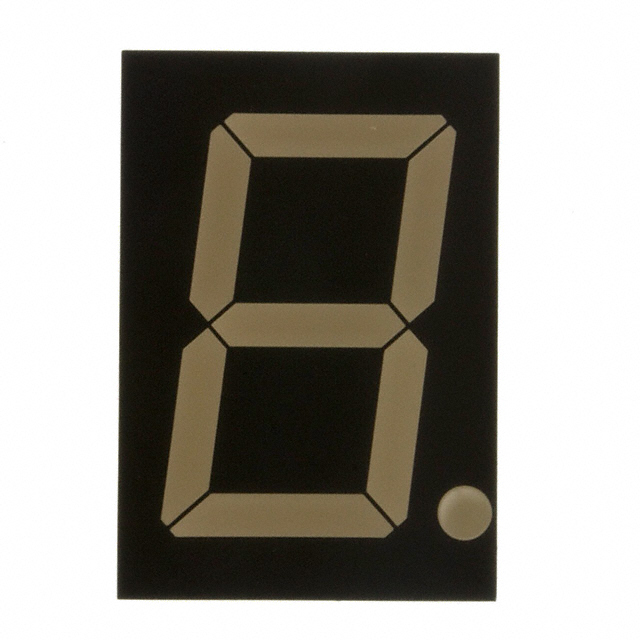

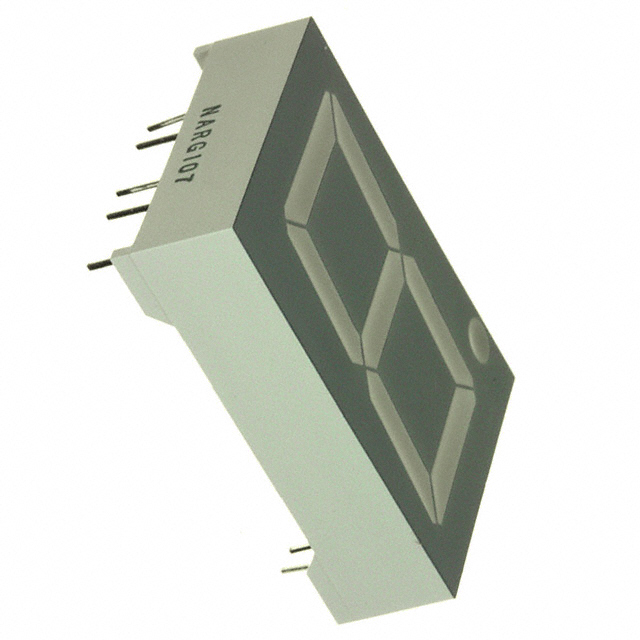

DISPLAY 7SEG 1" SGL GN/RED 14DIP
| Part | Digit/Alpha Size | Digit/Alpha Size | Number of Characters | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Forward (Vf) (Typ) | Display Type | Common Pin | Power Dissipation (Max) | Current - Test | Wavelength - Peak | Package / Case | Millicandela Rating | Color | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Stanley Electric Co | 1 in | 25.4 mm | 1 | 33 mm | 9 mm | 0.354 in | 0.898 " | 22.8 mm | 1.299 in | 3.4 V 4 V | 7-Segment | Common Anode | 80 mW 96 mW | 10 mA | 570 nm 660 nm | 14-DIP | 4 mcd | Green Red | |
 Stanley Electric Co | 1 in | 25.4 mm | 1 | 33 mm | 9 mm | 0.354 in | 0.898 " | 22.8 mm | 1.299 in | 3.4 V 4 V | 7-Segment | Common Anode | 80 mW 96 mW | 10 mA | 570 nm 660 nm | 14-DIP | 4 mcd | Green Red | |
 Stanley Electric Co | 0.6 in | 15.24 mm | 1 | 19 mm | 8 mm | 0.315 in | 0.492 " | 12.5 mm | 0.748 in | 1.7 V 2 V | 7-Segment | Common Anode | 10 mA | 570 nm 660 nm | 10-DIP | 2.4 mcd | Green Red | 0.6 in 15.24 mm | |
Stanley Electric Co |
