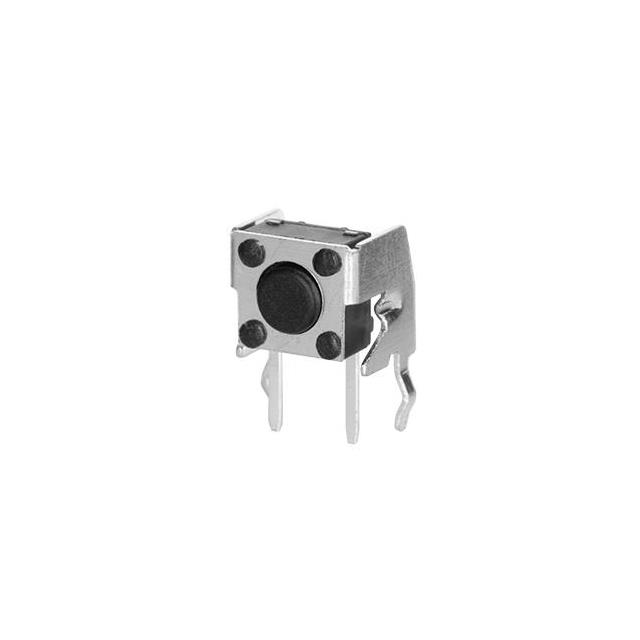

TS11-674 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

...

Part	Actuator Orientation	Contact Rating @ Voltage	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Actuator Length, Right Angle	Switch Function	Actuator Type	Mounting Type	Illumination	Circuit	Actuator Material	Switch Travel	Mechanical Life	Actuator Length, Right Angle [x]
Same Sky (Formerly CUI Devices) TS11-674-43-BK-160-RA-D	Side Actuated	0.05 A 12 VDC	PC Pin	80 °C	-30 ░C	160 gf	4.3 mm	Off-Mom	Standard	Right Angle Through Hole	Non-Illuminated	SPST-NO
Same Sky (Formerly CUI Devices) TS11-674-80-BK-260-RA-D	Side Actuated	0.05 A 12 VDC	PC Pin	80 °C	-30 ░C	260 gf	8 mm	Off-Mom	Standard	Right Angle Through Hole	Non-Illuminated	SPST-NO
Same Sky (Formerly CUI Devices) TS11-674-43-BK-160-RA-D	Side Actuated	0.05 A 12 VDC	PC Pin	80 °C	-30 ░C	160 gf	4.3 mm	Off-Mom	Standard	Right Angle Through Hole	Non-Illuminated	SPST-NO	Nylon 6/6 Polyamide (PA66)	0.25 mm	80000 Cycles
Same Sky (Formerly CUI Devices) TS11-674-55-BK-100-RA-D	Side Actuated	0.05 A 12 VDC	PC Pin	80 °C	-30 ░C	100 gf		Off-Mom	Standard	Right Angle Through Hole	Non-Illuminated	SPST-NO				5.5 mm
Same Sky (Formerly CUI Devices) TS11-674-105-BK-100-RA-D	Side Actuated	0.05 A 12 VDC	PC Pin	80 °C	-30 ░C	100 gf		Off-Mom	Standard	Right Angle Through Hole	Non-Illuminated	SPST-NO	Nylon 6/6 Polyamide (PA66)	0.25 mm	100000 Cycles	10.5 mm
Same Sky (Formerly CUI Devices) TS11-674-65-BK-260-RA-D	Side Actuated	0.05 A 12 VDC	PC Pin	80 °C	-30 ░C	260 gf	6.5 mm	Off-Mom	Standard	Right Angle Through Hole	Non-Illuminated	SPST-NO	Nylon 6/6 Polyamide (PA66)	0.25 mm	60000 Cycles
Same Sky (Formerly CUI Devices) TS11-674-65-BK-260-RA-D	Side Actuated	0.05 A 12 VDC	PC Pin	80 °C	-30 ░C	260 gf	6.5 mm	Off-Mom	Standard	Right Angle Through Hole	Non-Illuminated	SPST-NO
Same Sky (Formerly CUI Devices) TS11-674-85-BK-100-RA-D	Side Actuated	0.05 A 12 VDC	PC Pin	80 °C	-30 ░C	100 gf	8.5 mm	Off-Mom	Standard	Right Angle Through Hole	Non-Illuminated	SPST-NO
Same Sky (Formerly CUI Devices) TS11-674-95-BK-100-RA-D	Side Actuated	0.05 A 12 VDC	PC Pin	80 °C	-30 ░C	100 gf	9.5 mm	Off-Mom	Standard	Right Angle Through Hole	Non-Illuminated	SPST-NO	Nylon 6/6 Polyamide (PA66)	0.25 mm	100000 Cycles
Same Sky (Formerly CUI Devices) TS11-674-43-BK-100-RA-D	Side Actuated	0.05 A 12 VDC	PC Pin	80 °C	-30 ░C	100 gf	4.3 mm	Off-Mom	Standard	Right Angle Through Hole	Non-Illuminated	SPST-NO	Nylon 6/6 Polyamide (PA66)	0.25 mm	100000 Cycles
