1734349 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

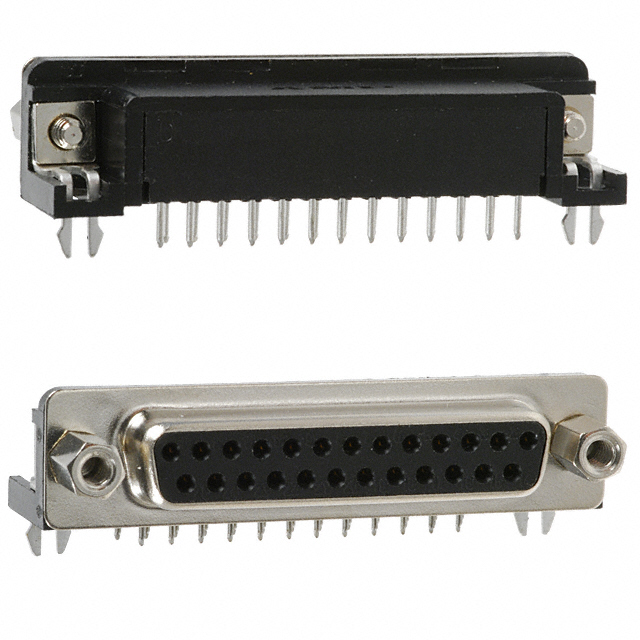

CONN D-SUB RCPT 25POS R/A SLDR
| Part | Color | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Finish | Number of Rows [custom] | Current Rating (Amps) | Connector Type | Material Flammability Rating | Contact Finish Thickness | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Connector Style | Mounting Type | Shell Material, Finish | Contact Type | Flange Feature | Features | Number of Positions | Termination | Backset Spacing | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | Polybutylene Terephthalate (PBT) Glass Filled | Phosphor Bronze | -55 C | 105 ░C | 250 V | Gold | 2 | 2 A | Receptacle Female Sockets | UL94 V-0 | Flash | B DB | 3 | D-Sub | Right Angle Through Hole | Nickel Plated Steel | Signal | 4-40 Mating Side Female Screwlock | Board Lock | 25 | Solder | 8.08 mm | 0.318 " |
