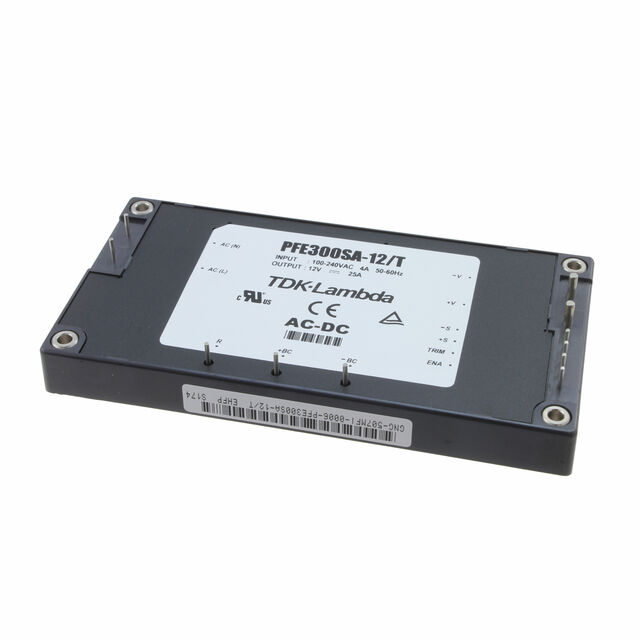

PFE300 Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 12V 25A 300W 11-PIN
| Part | Weight | Weight | Load Regulation | Line Regulation | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Power (Watts) | Current - Output (Max) [Max] | Applications | Type | Efficiency | Approval Agency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Standard Number | Mounting Type | Voltage - Output 1 | Number of Outputs | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 0.441 lb | 200.03 g | 48 mV | 48 mV | -40 °C | 100 °C | 11-DIP Module Full Brick | 300 W | 25 A | ITE (Commercial) | Enclosed | 85 % | CE CSA UL | 2.4 in | 4.6 " | 12.7 mm | 0.5 in | 61 mm | 116.8 mm | 60950-1 62368-1 | Through Hole | 12 V | 1 | 265 VAC | 85 VAC |
 TDK Corporation | 0.441 lb | 200.03 g | 96 mV | 96 mV | -40 °C | 100 °C | 11-DIP Module Full Brick | 302 W | 6.3 A | ITE (Commercial) | Enclosed | 90 % | CE CSA UL | 2.4 in | 4.6 " | 12.7 mm | 0.5 in | 61 mm | 116.8 mm | 60950-1 62368-1 | Through Hole | 48 V | 1 | 265 VAC | 85 VAC |
 TDK Corporation | 0.441 lb | 200.03 g | 96 mV | 96 mV | -40 °C | 100 °C | 11-DIP Module Full Brick | 302 W | 6.3 A | ITE (Commercial) | Enclosed | 90 % | CE CSA UL | 2.4 in | 4.6 " | 12.7 mm | 0.5 in | 61 mm | 116.8 mm | 60950-1 62368-1 | Through Hole | 48 V | 1 | 265 VAC | 85 VAC |
TDK Corporation | 0.441 lb | 200.03 g | 48 mV | 48 mV | -40 °C | 100 °C | 11-DIP Module Full Brick | 300 W | 25 A | ITE (Commercial) | Enclosed | 85 % | CE CSA UL | 2.4 in | 4.6 " | 12.7 mm | 0.5 in | 61 mm | 116.8 mm | 60950-1 62368-1 | Through Hole | 12 V | 1 | 265 VAC | 85 VAC |
