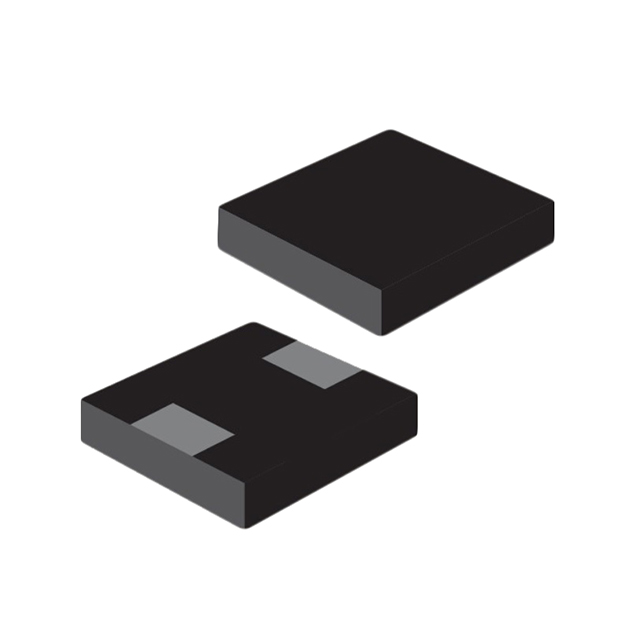

ECS-MPI4040 Series

Manufacturer: ECS Inc.

Catalog

POWER INDUCTORS - SMD 2.2UH 2.6A -55C +125C AEC-Q200

Part	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR)	Inductance Frequency - Test	Shielding	Ratings	Current - Saturation (Isat)	Inductance	Tolerance	Mounting Type
ECS Inc. ECS-MPI4040R1-2R2-R	1816 (4540 Metric) Nonstandard	-55 C	125 °C	1.2 mm	0.047 "	2.6 A	0.16 in	4.45 mm	0.175 in	4.06 mm	80 mOhm	100 kHz	Shielded	AEC-Q200	5.9 A	2.2 µH	20 %	Surface Mount
ECS Inc. ECS-MPI4040R1-R47-R	1816 (4540 Metric) Nonstandard	-55 C	125 °C	1.2 mm	0.047 "	5.2 A	0.16 in	4.45 mm	0.175 in	4.06 mm	24 mOhm	100 kHz	Shielded	AEC-Q200	11.5 A	470 nH	20 %	Surface Mount
ECS Inc. ECS-MPI4040R3-6R8-R	1816 (4540 Metric) Nonstandard	-55 C	125 °C	1.85 mm	0.073 in	2 A	0.16 in	4.45 mm	0.175 in	4.06 mm	144 mOhm	100 kHz	Shielded	AEC-Q200	4.5 A	6.8 µH	20 %	Surface Mount
