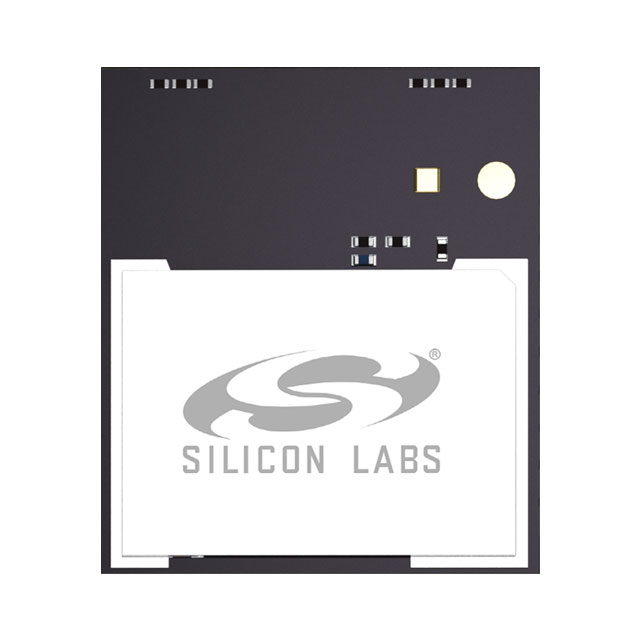

BGM240P Series
Manufacturer: SILICON LABS
Beta
⌘K
BLUETOOTH MODULES - 802.15.1 WIRELESS BLUETOOTH PCB MODULE, SECURE BOOT WITH ROOT OF TRUST AND SECURE LOADER(RTSL), 78 MHZ, 20 DBM,
| Part | Package / Case | Protocol | Serial Interfaces | Current - Transmitting [Max] | Current - Transmitting [Min] | Power - Output | Current - Receiving [Max] | Current - Receiving [Min] | Memory Size [custom] | Memory Size [custom] | Voltage - Supply [Min] | Voltage - Supply [Max] | Sensitivity | Mounting Type | Utilized IC / Part | RF Family/Standard | Frequency | Antenna Type | Data Rate | Modulation | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SILICON LABS | 36-SMD Module | Bluetooth v5.4 | GPIO I2C I2S IrDA JTAG SPI UART USART | 154.8 mA | 4.8 mA | 20 dBm | 5.2 mA | 4.5 mA | 256 kB | 1.5 MB | 1.8 V | 3.8 V | -106.5 dBm | Surface Mount | EFR32BG24 | Bluetooth | 2.4 GHz | Chip Integrated | 2 MBd | GFSK | -40 °C | 105 °C |
SILICON LABS | 36-SMD Module | Bluetooth v5.4 | GPIO I2C I2S IrDA JTAG SPI UART USART | 154.8 mA | 4.8 mA | 10 dBm | 5.2 mA | 4.5 mA | 256 kB | 1.5 MB | 1.8 V | 3.8 V | -106.5 dBm | Surface Mount | EFR32BG24 | Bluetooth | 2.4 GHz | Chip Integrated | 2 MBd | GFSK | -40 °C | 105 °C |
