2BHR Series

Manufacturer: Adam Tech

Catalog

CONN HEADER VERT 40POS 2MM

Part	Contact Finish Thickness - Post	Mounting Type	Number of Rows [custom]	Connector Type	Number of Positions Loaded	Contact Finish - Mating	Contact Shape	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Style	Features	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Voltage Rating	Contact Type	Shrouding	Contact Material	Material Flammability Rating	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Termination	Number of Positions	Contact Length - Post [custom]	Contact Length - Post	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Number of Positions [custom]

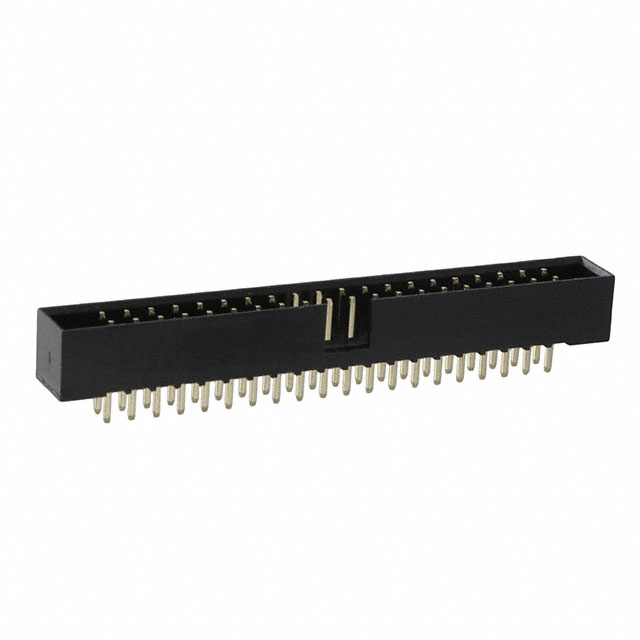

Adam Tech 2BHR-40-VUA	Flash	Through Hole	2	Header	All	Gold	Square	Push-Pull	-40 C	105 ░C	Black	Board to Cable/Wire	Keying Slot	5.6 mm	0.22 in	0.079 "	2 mm	250 VAC	Male Pin	Shrouded - 4 Wall	Brass	UL94 V-0	Gold	2 mm	0.079 in	Polybutylene Terephthalate (PBT) Glass Filled	Solder	40	0.11 in	2.79 mm	Flash
Adam Tech 2BHR-26-VUA-SMT	Flash	Surface Mount	2	Header	All	Gold	Square	Push-Pull	-40 C	105 ░C	Black	Board to Cable/Wire	Keying Slot			0.079 "	2 mm	250 VAC	Male Pin	Shrouded - 4 Wall	Brass	UL94 V-0	Gold	2 mm	0.079 in	Nylon 6T Polyamide (PA6T)	Solder	26			Flash	0.238 "	6.05 mm
Adam Tech 2BHR-08-HUA		Right Angle Through Hole	2	Header	All	Gold	Square	Push-Pull	-55 C	105 ░C	Black	Board to Cable/Wire	Keying Slot	5.6 mm	0.22 in	0.079 "	2 mm	250 VAC	Male Pin	Shrouded - 4 Wall	Brass	UL94 V-0	Gold	2 mm	0.079 in	Polybutylene Terephthalate (PBT) Glass Filled	Solder	8	0.11 in	2.79 mm	Flash

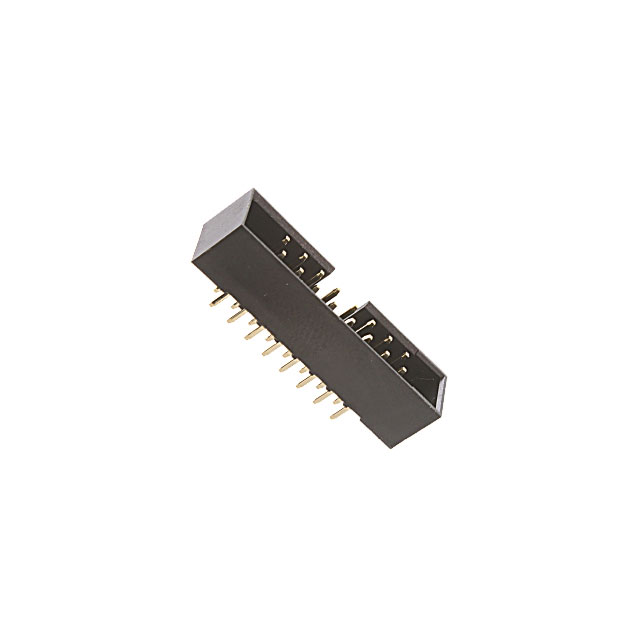

Adam Tech 2BHR-16-VUA	Flash	Through Hole	2	Header	All	Gold	Square	Push-Pull	-40 C	105 ░C	Black	Board to Cable/Wire	Keying Slot	5.6 mm	0.22 in	0.079 "	2 mm	250 VAC	Male Pin	Shrouded - 4 Wall	Brass	UL94 V-0	Gold	2 mm	0.079 in	Polybutylene Terephthalate (PBT) Glass Filled	Solder	16	0.11 in	2.79 mm	Flash
Adam Tech 2BHR-10-VUA-SMT		Surface Mount	2	Header	All	Gold	Square	Push-Pull	-40 C	105 ░C	Black	Board to Cable/Wire	Keying Slot			0.079 "	2 mm	250 VAC	Male Pin	Shrouded - 4 Wall	Brass	UL94 V-0	Gold	2 mm	0.079 in	Nylon 6T Polyamide (PA6T)	Solder	10			Flash	0.238 "	6.05 mm

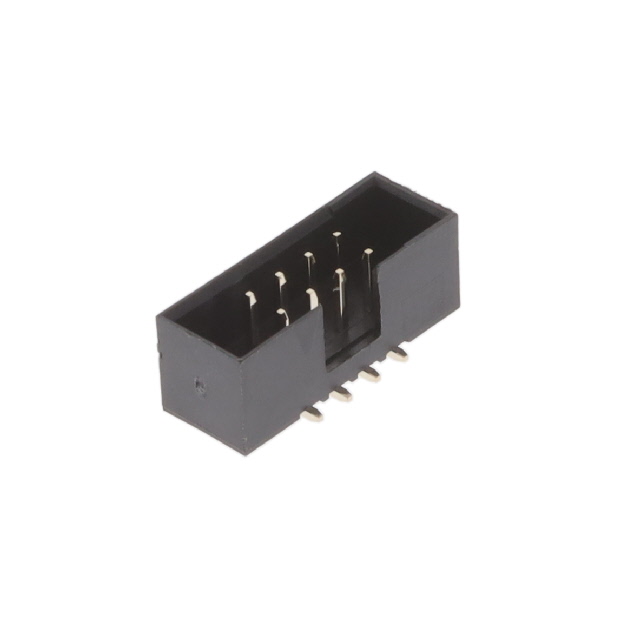

Adam Tech 2BHR-08-VUA-SMT	Flash	Surface Mount	2	Header	All	Gold	Square	Push-Pull	-40 C	105 ░C	Black	Board to Cable/Wire	Keying Slot			0.079 "	2 mm	250 VAC	Male Pin	Shrouded - 4 Wall	Brass	UL94 V-0	Gold	2 mm	0.079 in	Nylon 6T Polyamide (PA6T)	Solder	8			Flash	0.238 "	6.05 mm

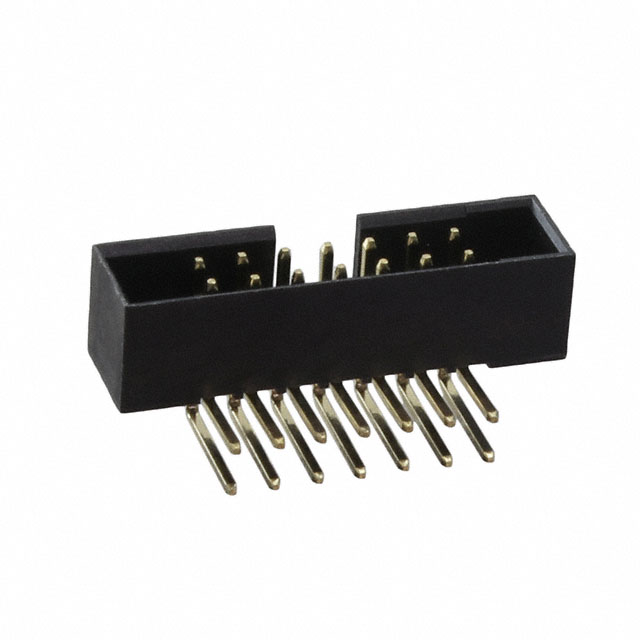

Adam Tech 2BHR-14-HUA	Flash	Right Angle Through Hole	2	Header	All	Gold	Square	Push-Pull	-55 C	105 ░C	Black	Board to Cable/Wire	Keying Slot	5.6 mm	0.22 in	0.079 "	2 mm	250 VAC	Male Pin	Shrouded - 4 Wall	Brass	UL94 V-0	Gold	2 mm	0.079 in	Polybutylene Terephthalate (PBT) Glass Filled	Solder	14	0.11 in	2.79 mm	Flash

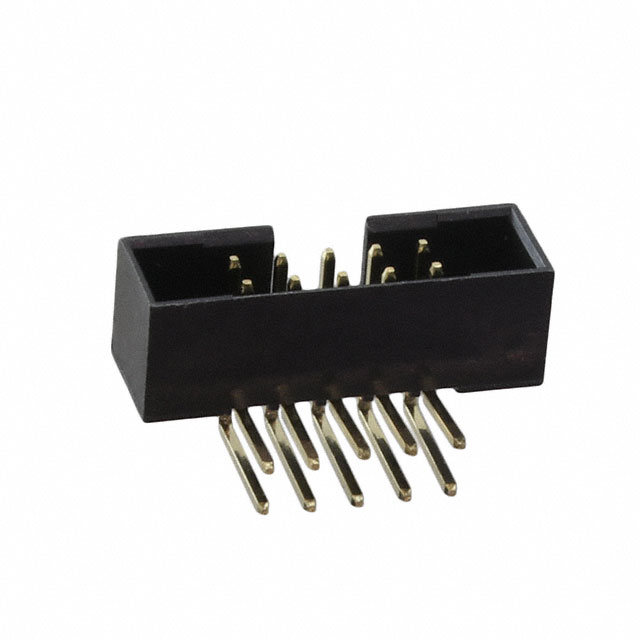

Adam Tech 2BHR-10-HUA	Flash	Right Angle Through Hole	2	Header	All	Gold	Square	Push-Pull	-55 C	105 ░C	Black	Board to Cable/Wire	Keying Slot	5.6 mm	0.22 in	0.079 "	2 mm	250 VAC	Male Pin	Shrouded - 4 Wall	Brass	UL94 V-0	Gold	2 mm	0.079 in	Polybutylene Terephthalate (PBT) Glass Filled	Solder	10	0.11 in	2.79 mm	Flash

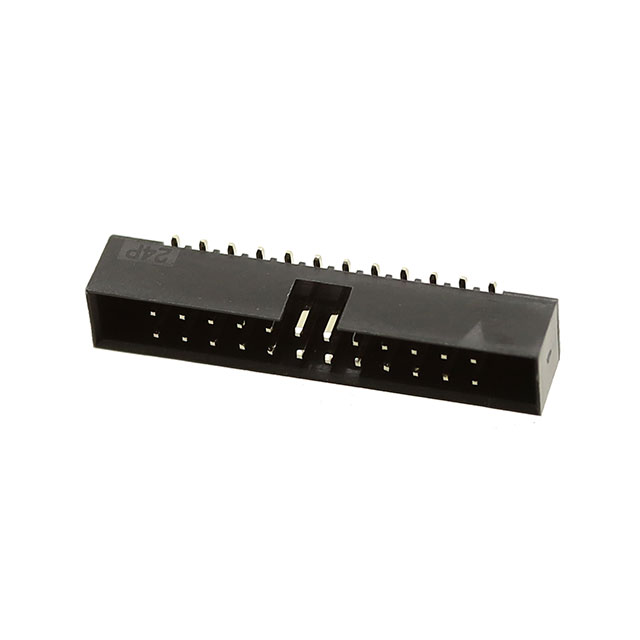

Adam Tech 2BHR-24-VUA-SMT	Flash	Surface Mount	2	Header	All	Gold	Square	Push-Pull	-40 C	105 ░C	Black	Board to Cable/Wire	Keying Slot			0.079 "	2 mm	250 VAC	Male Pin	Shrouded - 4 Wall	Brass	UL94 V-0	Gold	2 mm	0.079 in	Nylon 6T Polyamide (PA6T)	Solder	24			Flash	0.238 "	6.05 mm

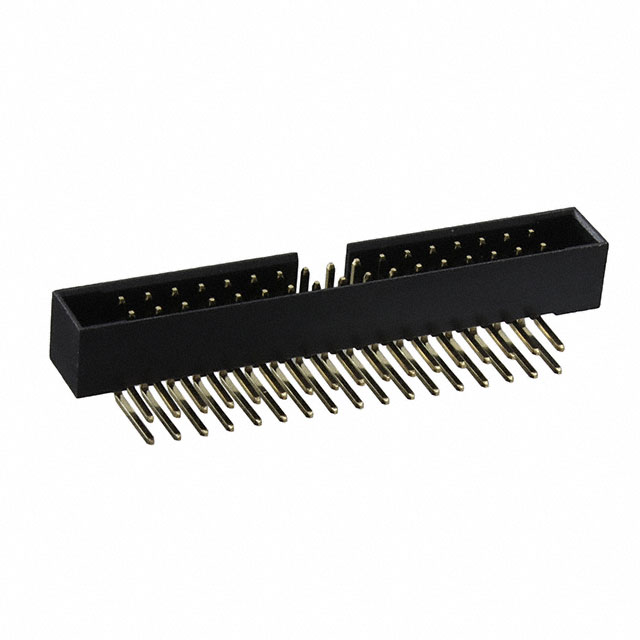

Adam Tech 2BHR-34-HUA	Flash	Right Angle Through Hole	2	Header	All	Gold	Square	Push-Pull	-55 C	105 ░C	Black	Board to Cable/Wire	Keying Slot	5.6 mm	0.22 in	0.079 "	2 mm	250 VAC	Male Pin	Shrouded - 4 Wall	Brass	UL94 V-0	Gold	2 mm	0.079 in	Polybutylene Terephthalate (PBT) Glass Filled	Solder		0.11 in	2.79 mm	Flash			34
