CY9AF142 Series

Manufacturer: INFINEON

Catalog

IC MCU 32BIT 160KB FLASH 112BGA

Part	Core Size	Oscillator Type	Core Processor	Package / Case	Program Memory Size	Program Memory Type	Number of I/O	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Data Converters	RAM Size	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Connectivity	Peripherals	Speed	Supplier Device Package [x]	Supplier Device Package [y]	Number of I/O [custom]

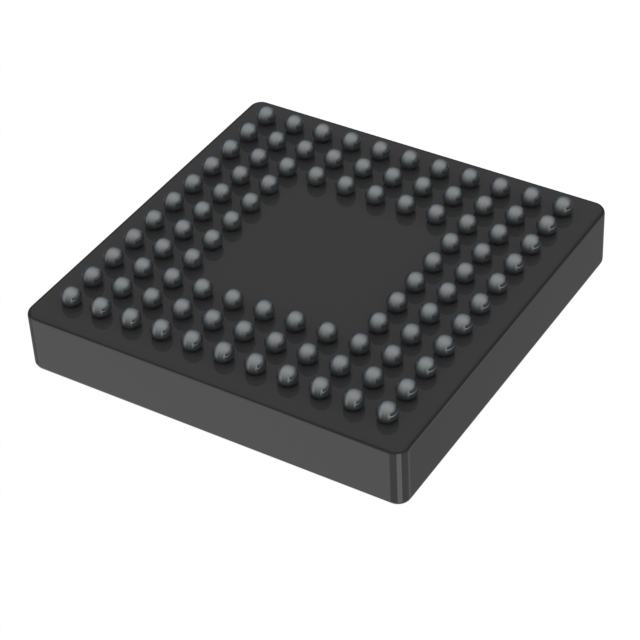

INFINEON CY9AF142MBBGL-GK9E1	32-Bit 32-Bit Single-Core	Internal	ARM® Cortex®-M3	96-LFBGA	160 KB	FLASH	66	96-FBGA (6x6)	85 C	-40 ¯C	Surface Mount	A/D 17x12b	16 K	3.6 V	1.65 V	CSIO EBI/EMI I2C SPI UART/USART	LVD POR PWM WDT	40 MHz

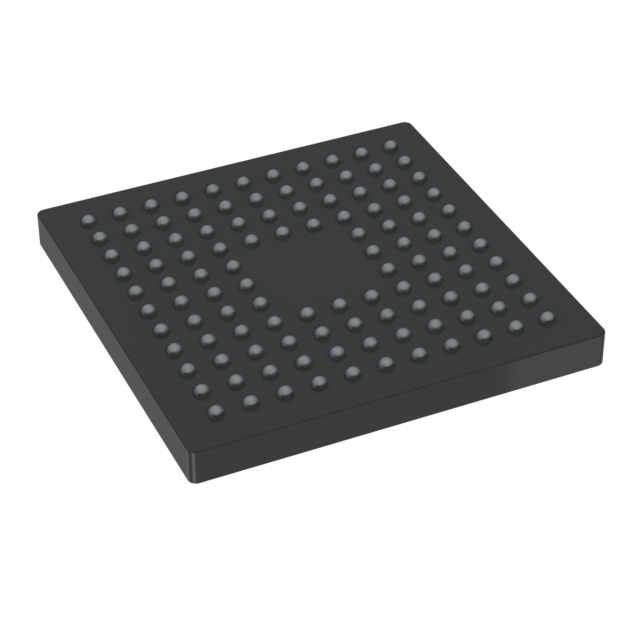

INFINEON CY9AF142NABGL-GK9E1	32-Bit	External Internal	ARM® Cortex®-M3	112-LFBGA	160 KB	FLASH	83	112-PFBGA (10x10)	85 C	-40 ¯C	Surface Mount	A/D 24x12b SAR	16 K	3.6 V	1.65 V	CSIO EBI/EMI I2C SPI UART/USART	LVD POR PWM WDT	40 MHz
INFINEON CY9AF142MABGL-GK9E1	32-Bit	External Internal	ARM® Cortex®-M3	96-LFBGA	160 KB	FLASH	66	96-FBGA (6x6)	85 C	-40 ¯C	Surface Mount	A/D 17x12b SAR	16 K	3.6 V	1.65 V	CSIO EBI/EMI I2C SPI UART/USART	LVD POR PWM WDT	40 MHz
INFINEON CY9AF142LAQN-G-AVE2	32-Bit 32-Bit Single-Core	Internal	ARM® Cortex®-M3	64-VFQFN Exposed Pad	160 KB	FLASH		64-QFN	85 C	-40 ¯C	Surface Mount	A/D 12x12b	16 K	3.6 V	1.65 V	CSIO I2C SPI UART/USART	LVD POR PWM WDT	40 MHz	9	9	51
INFINEON CY9AF142LAPMC1-GNE2	32-Bit	External Internal	ARM® Cortex®-M3	64-LQFP	160 KB	FLASH		64-LQFP (10x10)	85 C	-40 ¯C	Surface Mount	A/D 12x12b SAR	16 K	3.6 V	1.65 V	CSIO I2C SPI UART/USART	LVD POR PWM WDT	40 MHz			51
INFINEON CY9AF142LBPMC1-G-JNE2	32-Bit 32-Bit Single-Core	Internal	ARM® Cortex®-M3	64-LQFP	160 KB	FLASH		64-LQFP (10x10)	85 C	-40 ¯C	Surface Mount	A/D 12x12b	16 K	3.6 V	1.65 V	CSIO I2C SPI UART/USART	LVD POR PWM WDT	40 MHz			51
