PE42723 Series
Manufacturer: pSemi
Beta
⌘K

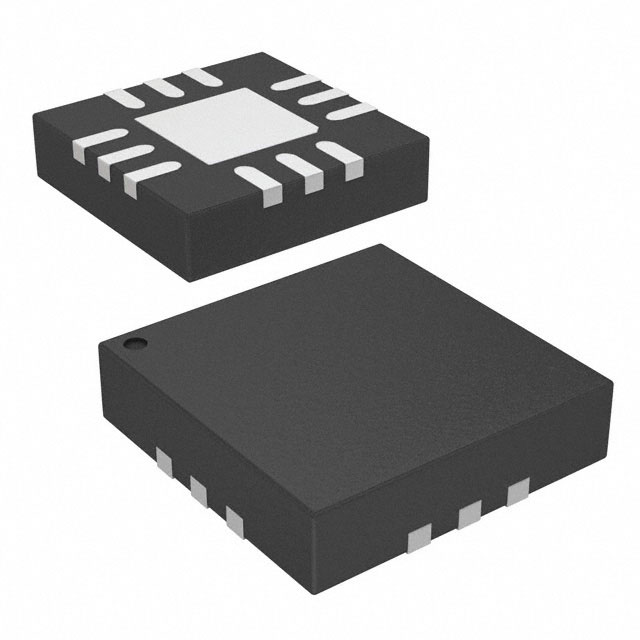

IC RF SWITCH SPDT 1.79GHZ 12QFN
| Part | Mounting Type | Topology | Isolation | Package / Case | Insertion Loss | Impedance | Frequency Range [Max] | Frequency Range [Min] | Circuit | Test Frequency | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 pSemi | Surface Mount | Reflective | 54 dB | 12-WFQFN Exposed Pad | 0.3 dB | 75 Ohms | 1.79 GHz | 5 MHz | SPDT | 1.2 GHz 204 MHz | 5.5 V | 2.3 V | 12-QFN (3x3) | 85 °C | -40 C |
