SRN.M2 Series
Manufacturer: LEMO
Beta
⌘K

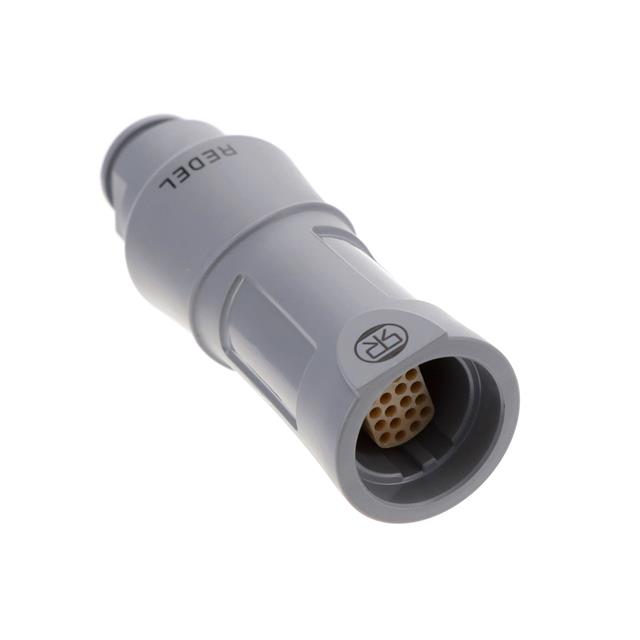

CONN RCPT FMALE 22P SOLDER CUP
| Part | Color | Shell Material | Ingress Protection | Shielding | Contact Finish - Mating | Orientation | Shell Size - Insert | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Backshell Material, Plating | Mounting Type | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Features | Insert Material | Fastening Type | Primary Material | Current Rating (Amps) | Number of Positions | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | Gray | Sulfone | IP50 - Dust Protected | Unshielded | Gold | N (Normal) | M22 | Receptacle Female Sockets | 170 °C | -50 °C | Sulfone | Free Hanging (In-Line) | 6.5 mm | 0.209 in | 0.256 in | 5.3 mm | Backshell | Polyetheretherketone (PEEK) | Push-Pull | Plastic | 2 A | 22 | Automotive Industrial Medical Testing Equipment & Measurement |
